AX3040 Axle Scale

Scales

  • Sizes: 7 ft, 12 ft and 14 ft lengths
  • Construction: Steel or aluminum
  • Axle capacity, tandem platforms: 60,000 or 80,000 lb (30,000 or 40,000 lb each)
  • Includes (4) 5/8-11 NC eye bolts for lifting scale during installation
  • Contains two load cells per platform
  • Treaded top plate with four lifting eyes
  • JB4SS TuffSeal® signal trim junction box
  • 10 ft EL146HE Interconnect cable with MS-type connectors to go between weigh pads
  • 50 ft EL147HE cable to connect weigh pad to indicator
  • Non-Legal for Trade
Ramps
  • Ramps: (L × W) 7 ft and 12 ft scales: 5.63 × 32.00 in, 14 ft scale: 5.75 × 32.00 in
  • Steel or aluminum
  • Anchor bolts not included

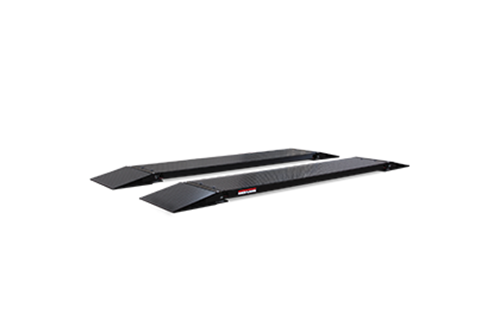

Versatile Axle Weighing System

Rice Lake’s AX3040 is a versatile axle weighing system providing accurate vehicle weights in non-Legal for Trade applications.

The AX3040 axle scale system includes two diamond tread platforms with on/off ramps. The tandem platforms can weigh a total of 60,000 pounds or 80,000 pounds (30,000 pounds or 40,000 pounds per platform). Combined with the TuffSeal® signal trim junction box and EL147HE cable, the AX3040 axle scale system is the ideal solution for onsite non-Legal for Trade vehicle weighing.

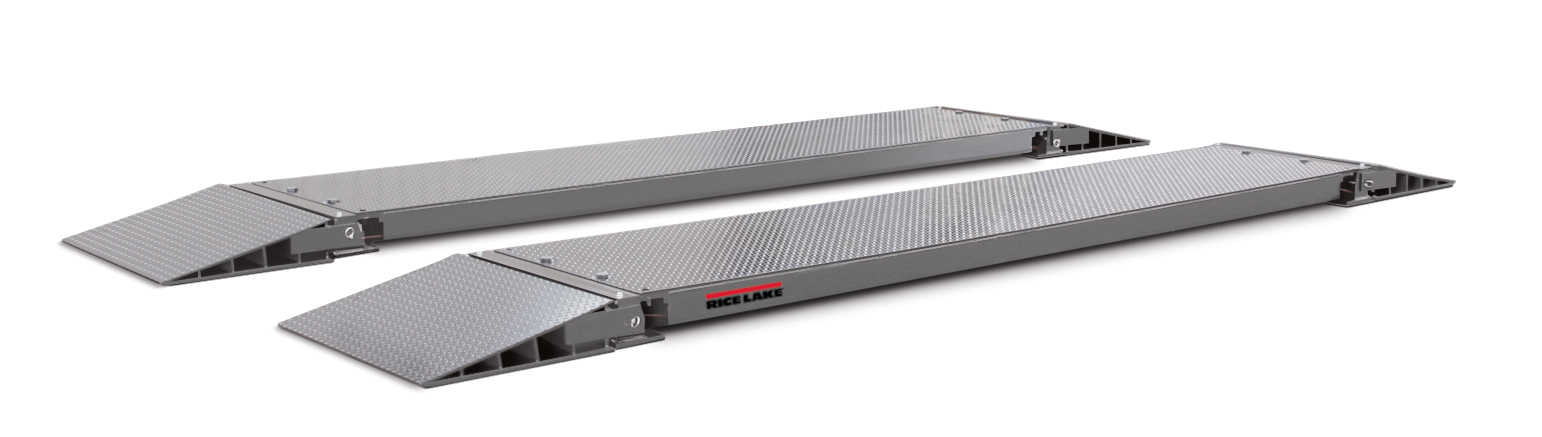

Axle Scale Platform Choice - Length and Material

The AX3040 axle scale is available in your choice of length—7, 12 or 14 feet - and is available in aluminum or mild steel. Depending on the size, some vehicles can capture total weight in one step instead of weighing individual axles. The AX3040 axle scale system has a low profile for gradual ramp incline while maintaining durabilityand consistent weighments.

Construction:
Steel or aluminum

Accuracy:
±3%

End Loading Capacity:
133% full scale at 30,000 lb
100% full scale at 40,000 lb
Warranty:
One-year limited

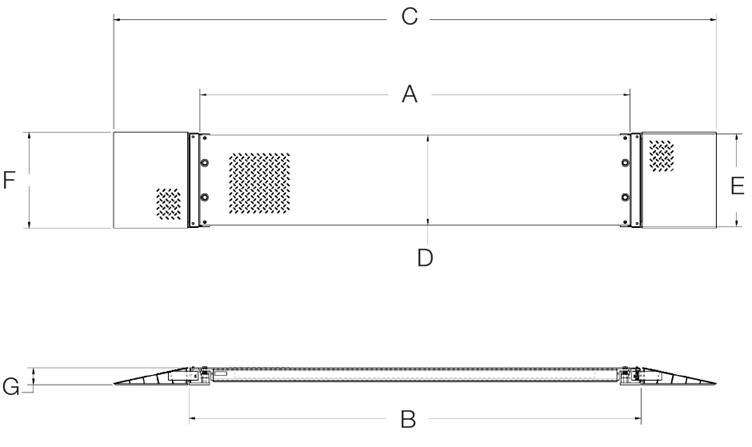

Dimensions
7 ft steel
A 83.60 in E 31.00 in
B 90.90 in  F 32.00 in
C 141.25 in  G 5.63 in
D 30.00 in
12 ft steel
A 143.60 in E 31.00 in
B 150.90 in  F 32.00 in
C 201.2 in  G 5.63 in
D 30.00 in
14 ft steel
A 167.60 in  E 31.00 in
B 174.90 in F 32.00 in
C 225.25 in  G 5.75 in
D 30.00 in
7 ft aluminum
A 83.60 in  E 31.00 in
B 90.90 in  F 32.00 in
C 141.25 in  G 5.63 in
D 30.00 in
*Note: 1 in = 25.4 mm





Resources / Downloads

Title Download Email
AX3040 Tandem Axle Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
AX3040 Axle Scale Installation Manual B Download Email Axle Scales No

Title Collateral Wizard Request Download Email Category
AX3040 Axle Scale Request Download Email Axle Scales
Axle Scale Comparative Matrix Request Download Email Axle Scales

Parts

Steel Construction - Painted Black 2 Scales with Connecting Cables and 4 Ramps

Part # Description List Price Cart
112330 Scale,Axle AX3040 60,000 Includes 2 scales (7ft steel painted 30,000lb each) and 4 ramps

List Price: $14,850.00

111748 Scale,Axle AX3040 80,000 Includes 2 scales (12ft steel painted 40,000lb each) and 4 ramps

List Price: $17,580.00

112328 Scale,Axle AX3040 80,000 Includes 2 scales (14ft steel painted 40,000lb each) and 4 ramps

List Price: $23,325.00

Steel Construction - Painted Black 2 Scales with Connecting Cables without Ramps

Aluminum Construction -Glass Beaded 2 Scales with Connecting Cables and 4 Ramps

Aluminum Construction -Glass Beaded 2 Scales with Connecting Cables without Ramps

Ramps with Hardware (Qty 2)

Related Products

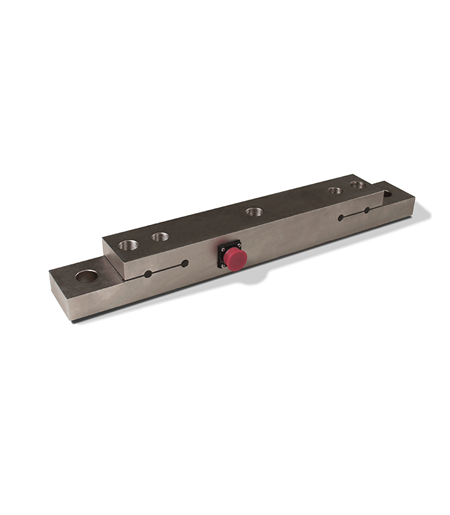

RL-AX3040-Alloy-Steel-Load-Cell
