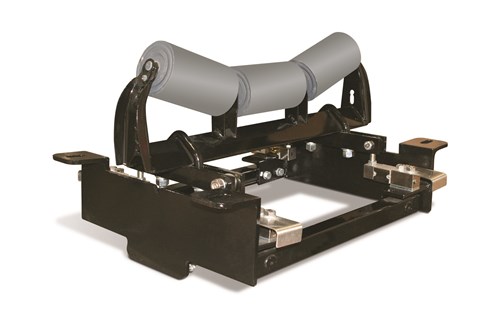

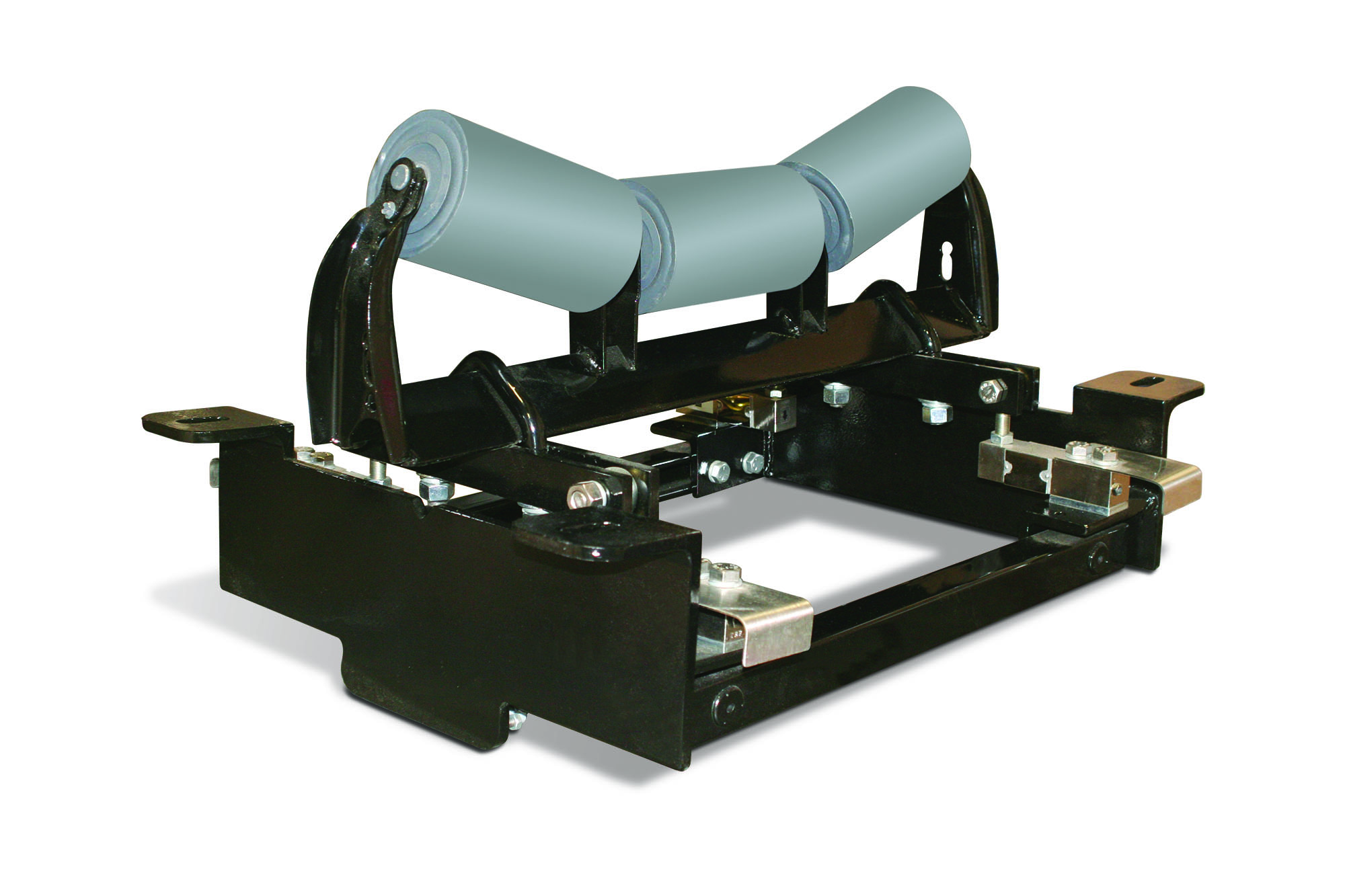

BCi Belt Scale Weigh Frame

  • Fits standard conveyors using CEMA-C idlers
  • No moving parts
  • Four shear laterally opposed shear beam load cells
  • Fabricated with heavy gauge steel
  • Minimal conveyor modifications required for installation
  • Up to four weigh frames can be used for increased accuracy

Applications

  • Mining, quarries, bulk material blending, process control, utilities, truck/barge/rail loading and retrofit

Durability and Accuracy

Experience durability and accuracy with Rice Lake’s rugged BCi belt scale weigh frame. Built to last, the BCi is one of the most accurate belt scales in its class. Ideal for mining, quarries, bulk material blending, process control operations and load-out applications, the BCi easily handles capacities up to 10.000 tons per hour with unsurpassed accuracy.

Conveyor Widths:
18 to 72 in

Capacity:
Up to 10,000 tons per hour

Belt Speed:
Up to 1,200 feet per minute

Accuracy Guidelines:
Guidelines assume clean belt with automatic tensioning system. Accuracy guidelines are typical. System accuracy may vary depending on environmental influences.

System Accuracy:
Single to  two idler system: 0.5% to 1% total error
Three to four idler system: <0.5% total error

Dimensions
Part Number A B Part Number A B
Mild Steel Stainless Steel
94968 24.00 in

27.50 in

110839 24.00 in 27.50 in
95208 30.00 in 33.50 in 105246 30.00 in 33.50 in
95209 36.00 in 39.50 in 110841 36.00 in 39.50 in
95210 42.00 in 45.50 in 110842 42.00 in 45.50 in
95211 48.00 in 51.50 in 110843 48.00 in 51.50 in
95212 54.00 in 57.50 in 110844 54.00 in 57.50 in
96717 60.00 in 63.50 in 110845 60.00 in 63.50 in
96718 66.00 in 69.50 in 110846 66.00 in 69.50 in
96719 72.00 in 75.50 in 110847 72.00 in 75.50 in



Resources / Downloads

Title View Email Category Type
From the Heart of Darkness, the BCi Brings Energy View Email Bulk Material Weighing Application Story
Protect Your Belt Scales from Father Winter Email Belt Scale Weigh Frames Articles

Title Download Email
BCi Belt Scales Catalog Page Download Email

Title Version Revision Download Email Category Archived
BCi Weigh Frame Belt Scale Technical Manual B Download Email Belt Scale Components|Belt Scale Weigh Frames No
BCi Belt Scale Maintenance & Troubleshooting Manual Download Email Belt Scale Components|Belt Scale Weigh Frames No

Title Download Email
Belt Scale Application Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
Belt Scale In-Motion Systems Collateral Wizard Request Download Email Belt Scale Weigh Frames|Bulk Indicators/Controllers

Title Version Size Release Date Download Email
920i firmware (Requires Rev L CPU Board or Newer, v5.11.00) 5.11.00 1.1 MB 11/25/2019 Download Email

Title View Download Email Category
BCI In-Motion Belt Scale System Overview View Download Email Belt Scale Weigh Frames

Parts

Mild Steel Weigh Frames

Part # Description List Price Cart
94968 Belt Scale ASSY,24 Inch 500lb Capacity For 18 Inch Belt Widths Mild Steel

List Price: $2,485.00

95208 Belt Scale ASSY, 30 Inch 500lb Capacity For 24 Inch Belt Widths Mild Steel

List Price: $2,485.00

95209 Belt Scale ASSY, 36 Inch 500lb Capacity For 30 Inch Belt Widths Mild Steel

List Price: $2,485.00

95210 Belt Scale ASSY, 42 Inch 500lb Capacity For 36 Inch Belt Widths Mild Steel

List Price: $2,485.00

95211 Belt Scale ASSY, 48 Inch 500lb Capacity For 42 Inch Belt Widths Mild Steel

List Price: $2,485.00

95212 Belt Scale ASSY, 54 Inch 500lb Capacity For 48 Inch Belt Widths Mild Steel

List Price: $2,485.00

96717 Belt Scale ASSY, 60 Inch 1000lb Capacity For 54 Inch Belt Widths Mild Steel

List Price: $2,485.00

96718 Belt Scale ASSY, 66 Inch 1000lb Capacity For 60 Inch Belt Widths Mild Steel

List Price: $2,485.00

96719 Belt Scale ASSY, 72 Inch 1000lb Capacity For 66 Inch Belt Widths Mild Steel

List Price: $2,485.00

Consult Light-capacity weigh frames

Call for price

Stainless Steel Weigh Frames

Weigh Frame Accessories

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
