BenchMark® HD-1 Aviation Scale

  • Heavy-duty scale designed mild steel base construction with 304 stainless steel cover
  • Polyurethane rubber leveling feet with stainless steel stems
  • Load cell comes standard with DB-9 connector for connecting to Tracer AV2
  • Front and back kick plates


Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Reliable Baggage Weighing

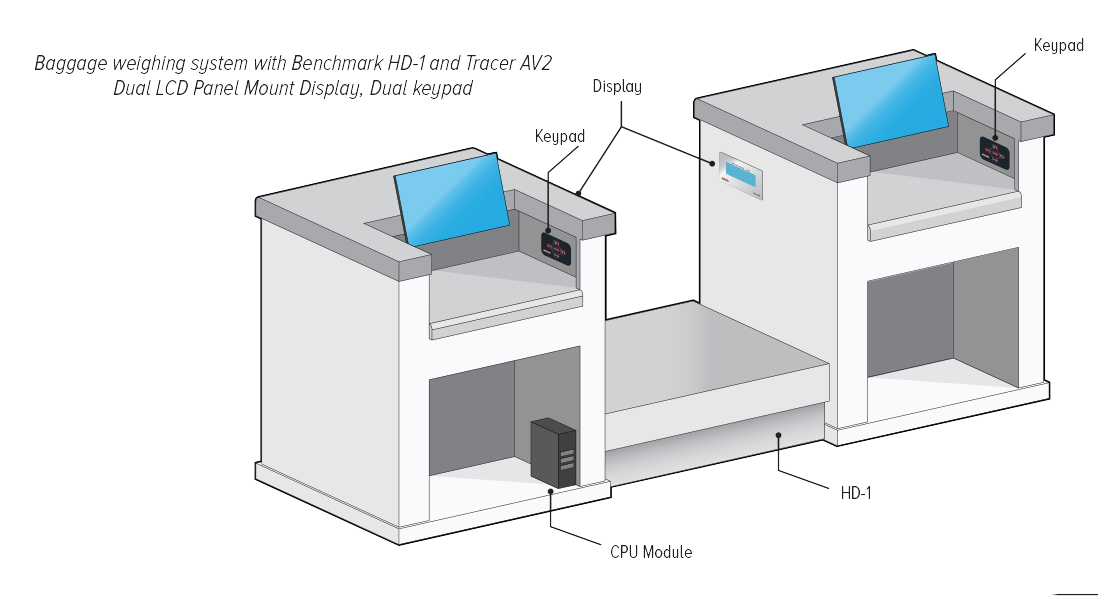

The heavy-duty BenchMark® HD-1 aviation scale is constructed of a mild steel base and a stainless steel cover to provide a durable, visually appealing baggage weighing solution for airline check-in counters. It is designed to be installed between two airline check-in desks, and features front and back kick plates to protect the scale from debris.

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:

Overload Protection:
Five-point, independently adjusted

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 ˚F to 104 ˚F (-10 ˚C to 40 ˚C)

Two-year limited

NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625
Load cell is cFMus approved

Maximum size is up to 36 in × 36 in, height is always 12 in
W × D supplied by the customer

Resources / Downloads

Title Download Email
BenchMark HD-1 Aviation Catalog Page Download Email


Part # Description List Price Cart
Consult Capacity 500 lb (225 kg)

Call for price

Related Products

WEB US Tracerav2 Cpubox Display Keypad

Tracer AV2 Baggage Weighing Instrumentation

Ideal for baggage weighing, Tracer AV2 combines a sleek five-button keypad with the most durable stainless steel display. The simple-to-install display features a large, backlit LCD display and the rugged keypad will endure years of busy check-in counter use.
