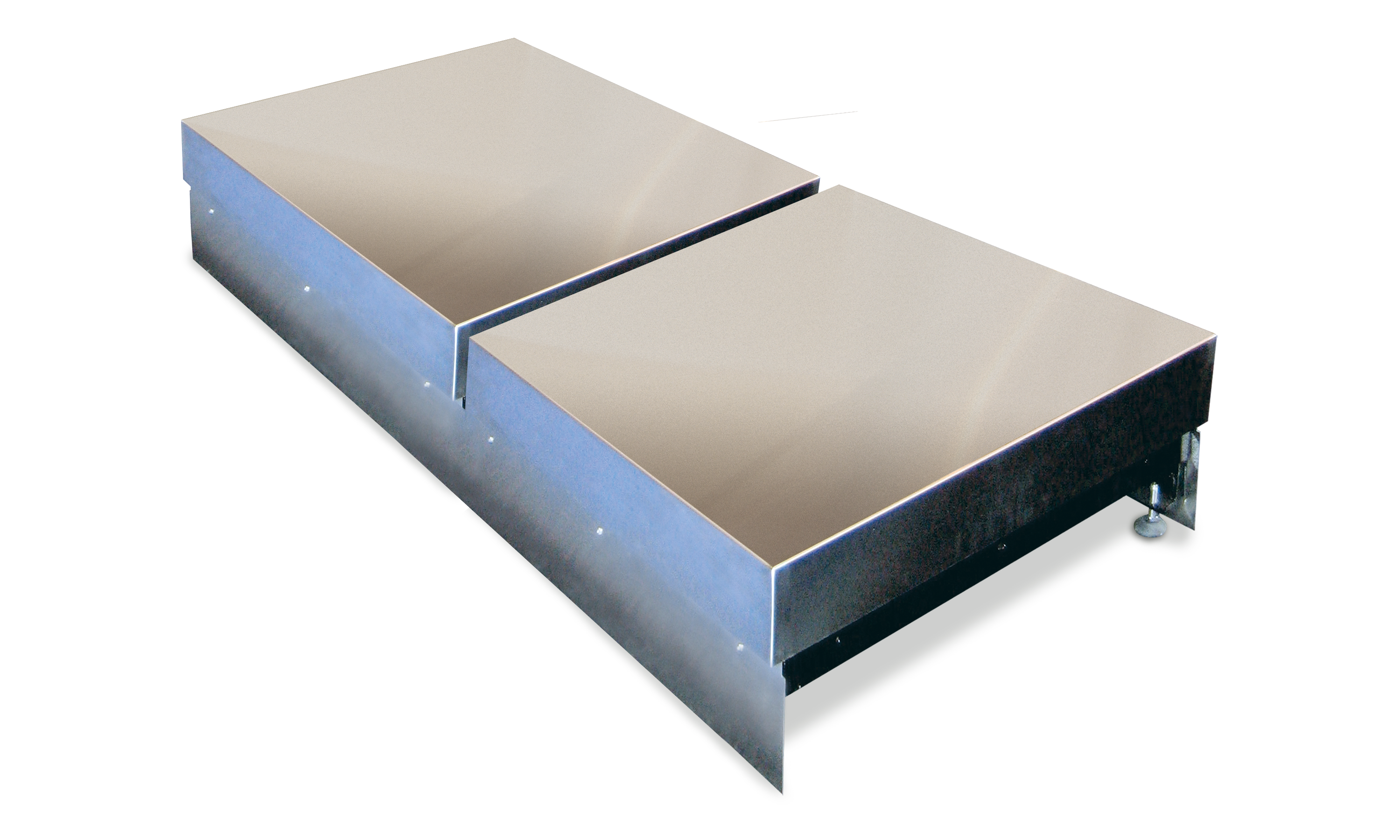

BenchMark® HD-3 Aviation Scale

  • Heavy-duty designed mild steel base construction with 304 stainless steel cover
  • Polyurethane rubber leveling feet with stainless steel stems
  • Load cell comes standard with DB-9 connector for connecting to Tracer AV2

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
200%

Overload Protection:
Five-point, independently adjusted

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 ˚F to 104 ˚F (-10 ˚C to 40 ˚C)

Warranty:
Two-year limited

Approvals:
NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625
Load cell is cFMus

Maximum size is up to 36 in x 36 in, height is always 12 in
L x W supplied by the customer

Resources / Downloads

Title Download Email
BenchMark HD-3 Aviation Catalog Page Download Email

Parts

Part # Description List Price Cart
Consult Capacity 500 lb (225 kg)

Call for price

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB US Tracerav2 Cpubox Display Keypad

Tracer AV2 Baggage Weighing Instrumentation

Ideal for baggage weighing, Tracer AV2 combines a sleek five-button keypad with the most durable stainless steel display. The simple-to-install display features a large, backlit LCD display and the rugged keypad will endure years of busy check-in counter use.
