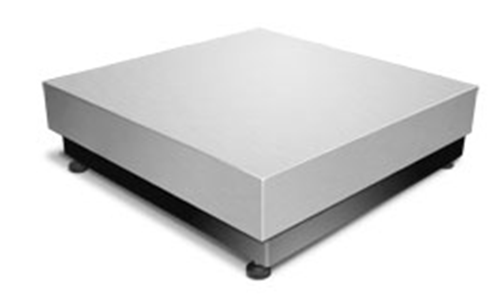

BenchMark® HD Heavy-Duty Bench Scale

  • Heavy-duty designed mild steel base construction with 304 stainless steel cover
  • Polyurethane rubber leveling feet with stainless steel stems

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

Heavy-Duty Bench Scale

The BenchMark HD bench scale is ideal for heavy-duty industrial weighing. This NTEP Certified platform rises to the challenge of frequent heavy loads. The BenchMark HD scale base comes standard in 30 x 30 and 36 x 36 sizes with capacities of 250 to 500 pounds. Custom sizes and capacities are available.

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
200%

Overload Protection:
Five-point, independently adjusted

Scale Frame:
Mild steel powder coated black

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 ˚F to 104 ˚F (-10 ˚C to 40 ˚C)

Warranty:
Two-year limited

Approvals:
NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625
Load cell is cFMus

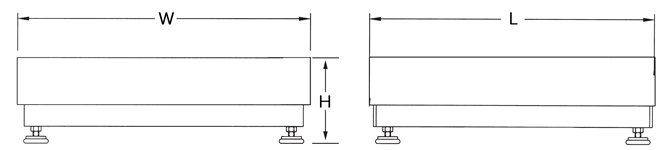

Part # Capacity Platform
Dimensions (L x W x H)
93414 250 lb (125 kg) 30 x 30 x 8.75 in
93415 500 lb (225 kg) 30 x 30 x 8.75 in
93416 250 lb (125 kg) 36 x 36 x 8.75 in
93417 500 lb (225 kg) 36 x 36 x 8.75 in

Resources / Downloads

Title Download Email
BenchMark HD Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark HD Series Installation Manual B Download Email Platform Scales|Bench Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Download Email
BenchMark HD Replacement Parts Catalog Page Download Email

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

Part # Description List Price Cart
93414 Scale,Benchmark HD 30x30 250lb Mild Steel with SST cover

List Price: $2,125.00

93415 Scale,Benchmark HD 30x30 500lb Mild Steel with SST cover

List Price: $2,125.00

93416 Scale,Benchmark HD 36x36 250lb Mild Steel with SST cover

List Price: $2,575.00

93417 Scale,Benchmark HD 36x36 500lb Mild Steel with SST cover

List Price: $2,575.00

Options

Part # Description List Price Cart

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
