BenchMark® HDP Heavy-Duty Portable Scale

  • Mild steel base construction
  • 304 stainless steel cover
  • Indicator stand for mounting 480/482 Legend® Series

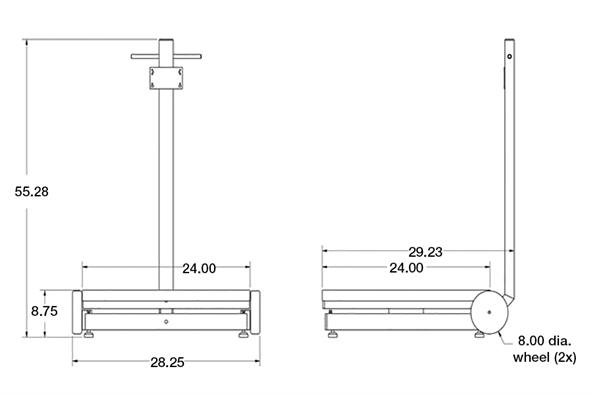

  • Wheel model
  • Polyurethane rubber leveling feet with stainless steel stems
  • 8-inch diameter preformed rubber wheels with ball bearings
  • Caster model
  • 3 1/2 in diameter preformed rubber casters, two fixed, two swivel with lock

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

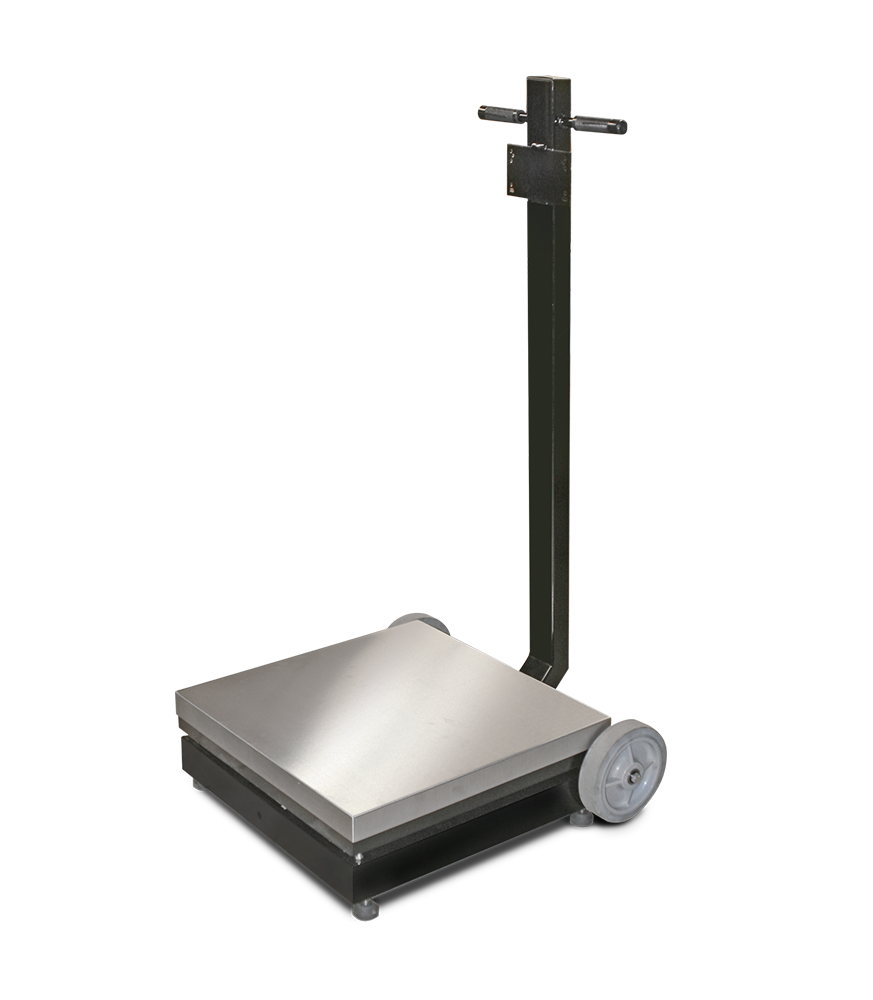

Polished and Portable

The BenchMark HDP portable platform scale, with capacities up to 500 pounds, is the ideal option for lighter industrial and commercial applications. Choose between casters or large rear-mounted wheels. The 304 stainless steel cover is as durable as it is sleek. This NTEP Certified scale is designed with a sturdy mild steel base. The column at the back of the scale serves as both a handle for moving the unit and as a stand for mounting any of several Rice Lake optional indicators.

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
200%

Overload Protection:
Five-point, independently adjusted

Scale Frame:
Mild steel powder-coated black

Scale Cover:
AISI304L, straight line finish, Ra=45 =/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Two-year limited

Approvals:
NTEP CC 06-010, Class III 5,000 d
Measurement Canada AM-5625

Resources / Downloads

Title View Email Category Type
Prince Edward Island View Email Checkweighers|Indicators / Controllers|Weight Indicators Application Story
Surviving the Tignish Wind View Email Indicators / Controllers|Weight Indicators|Checkweighers Application Story

Title Download Email
BenchMark HDP Catalog Page Download Email

Title Download Email
BenchMark HDP Replacement Parts Catalog Page Download Email

Parts

Caster Model

Part # Description List Price Cart
97074 Scale,Benchmark HDP 24x24 250lb Mild Steel with SST cover, 2 fixed casters and 2 swivel casters

List Price: $2,495.00

97075 Scale,Benchmark HDP 24x24 500lb Mild Steel with SST cover, 2 fixed casters and 2 swivel casters

List Price: $2,495.00

Wheel Model

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
