BenchMark™ HE-X Hostile Environment Extreme Bench Scale

  • Rugged washdown design, rigid 304 stainless steel frame and cover constructed with continuous welds
  • Four adjustable stainless steel support feet
  • IP69K stainless steel load cell
  • Meets Sanitary Design Principles
  • Meets HACCP requirements

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Extreme Clean Bench Scale

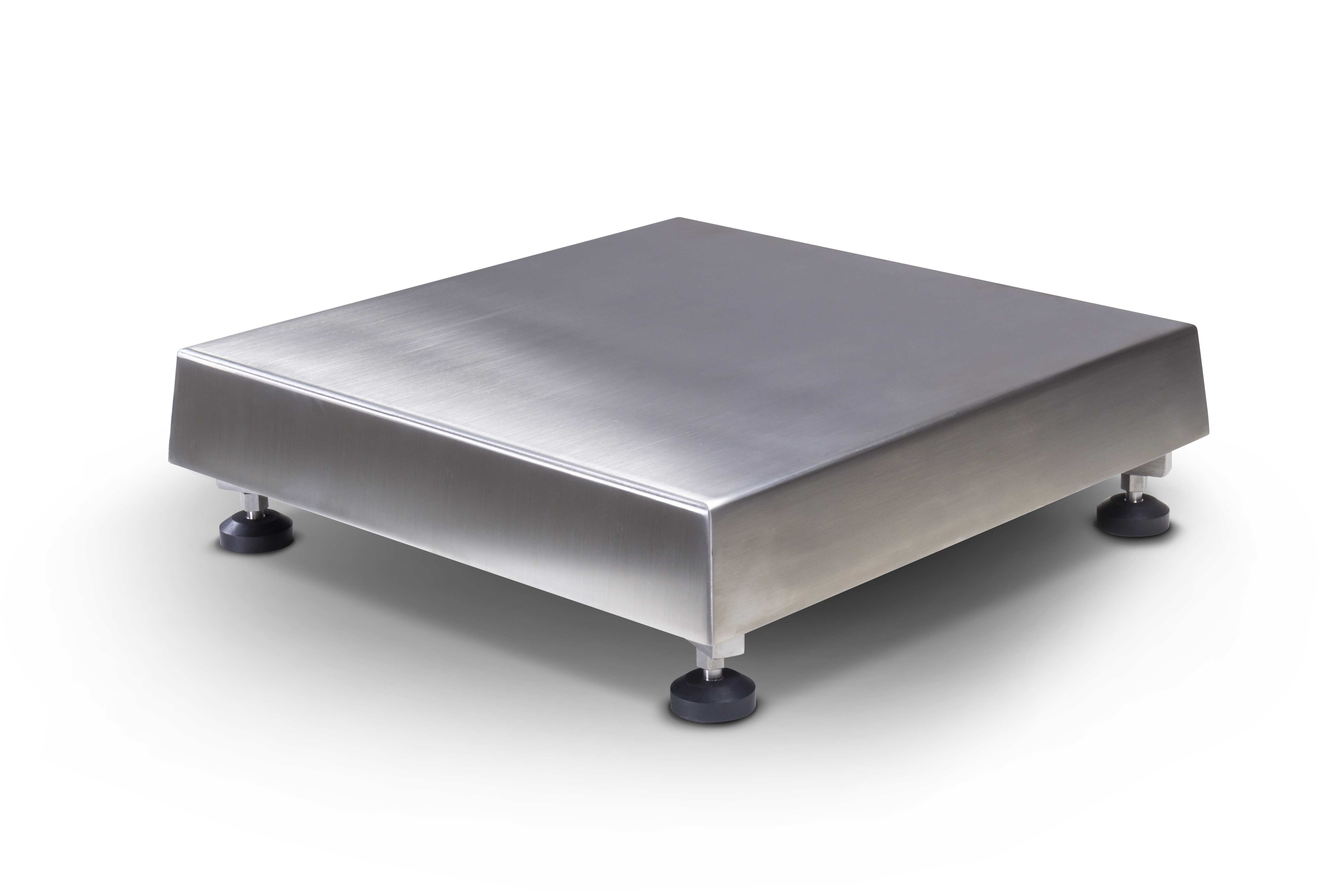

Equipment used in highly sanitary conditions needs a strong defense against microscopic bacteria.  Rice Lake's BenchMark HE-X bench scale is designed to meet strict sanitary design principles, withstanding extreme washdown demands.

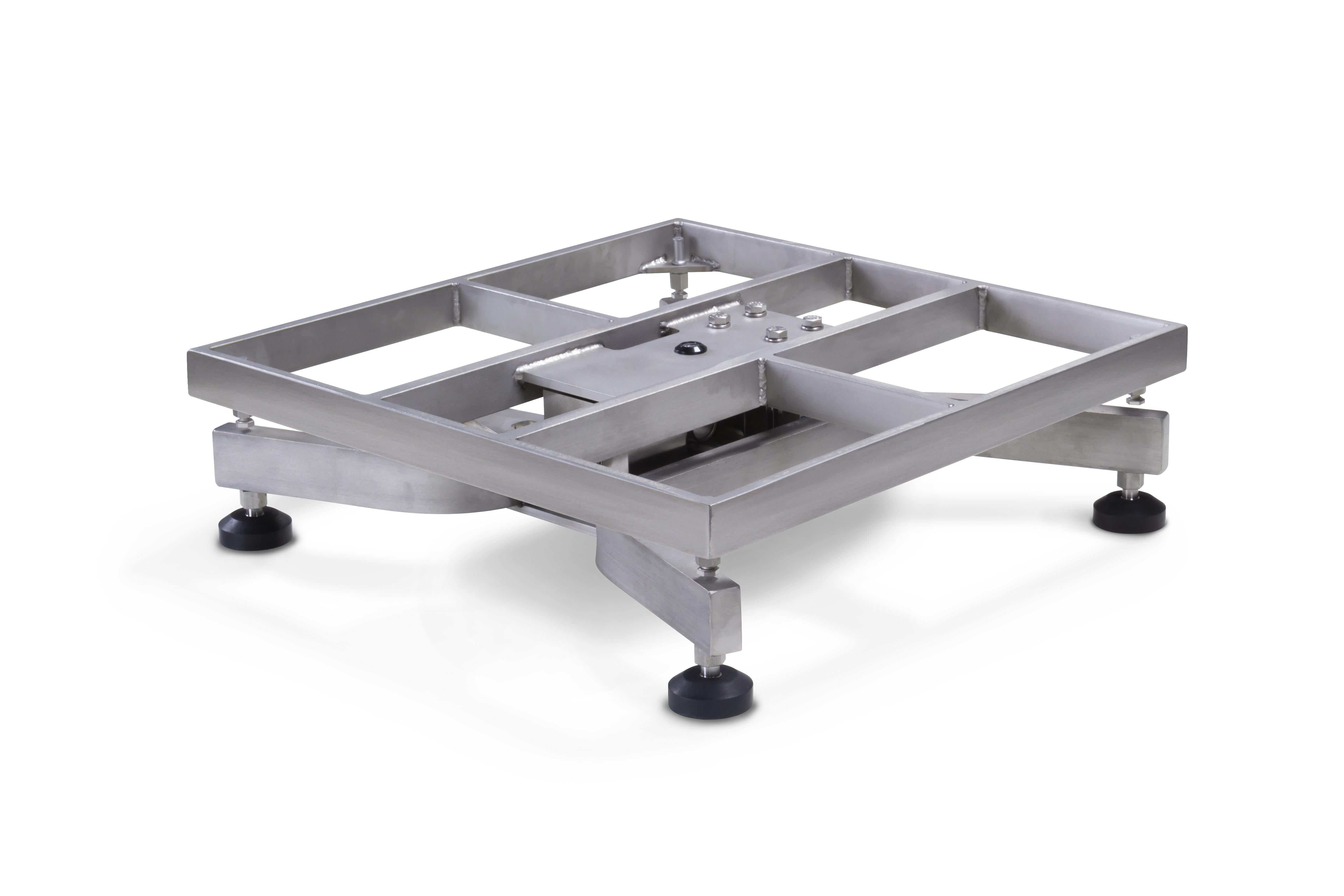

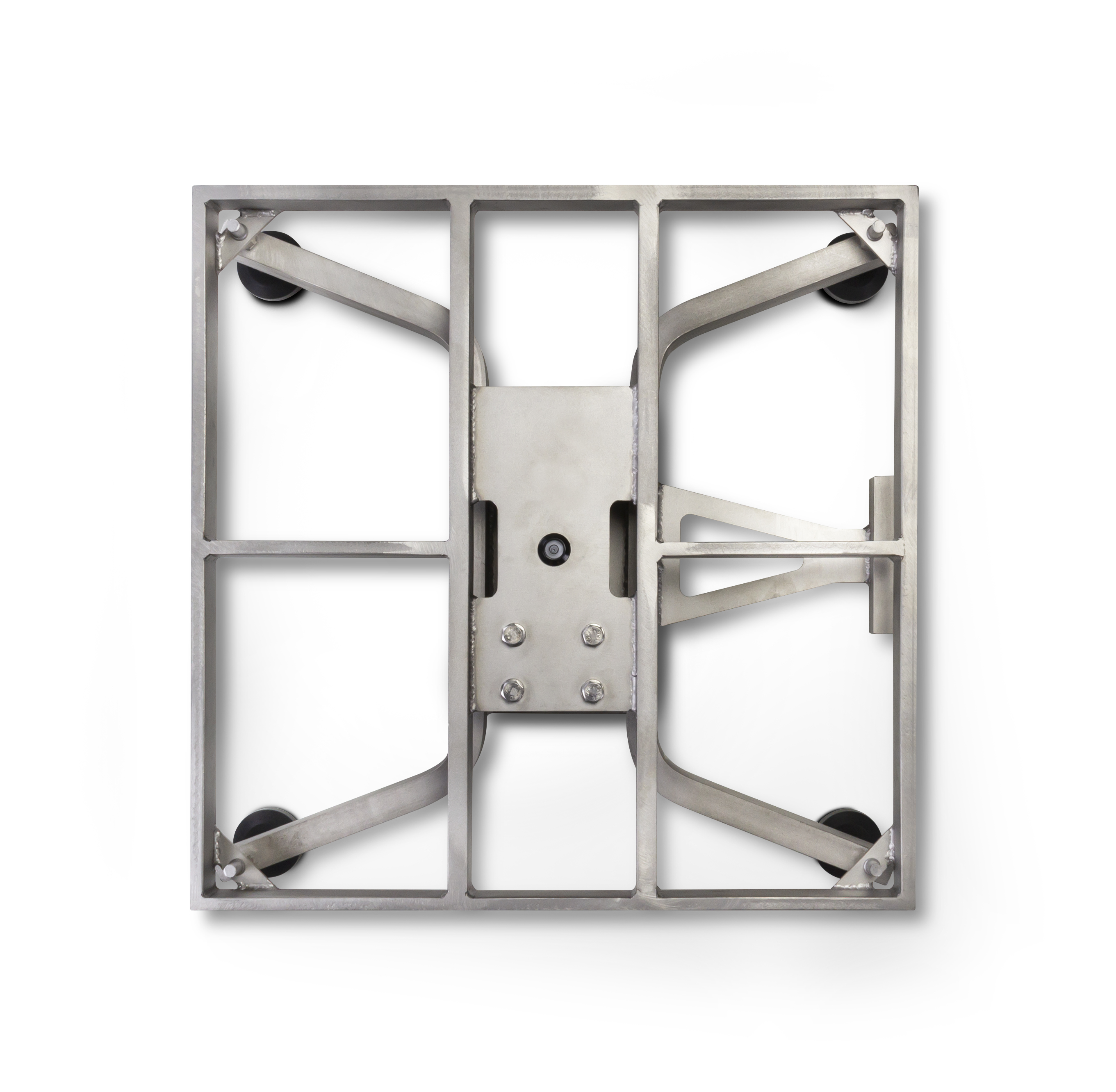

Built for highly sanitary environments, the BenchMark HE-X is made from 304 stainless steel. The frame is made from solid stainless steel plates connected with continuous welds. An IP69K hermetically sealed load cell is protected from production materials and washdown chemicals. The BenchMark HE-X open design and no exposed threads mean product and bacteria have nowhere to hide.

The BenchMark HE-X bench scale is easy to clean and won't be pushed around during high-pressure washdown because of the heavy steel frame. This scale also has an easily removable cover, making it perfect for extreme sanitary environments.



Load Cell, NTEP Certified:
IP69K Stainless steel, hermetically sealed

Output Impedance:
1,000 ohm

Maximum Overload:
150%-200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, glass bead blasted for even appearance

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Three-year limited (includes water ingress)

Approvals:
Load cell is FM approved

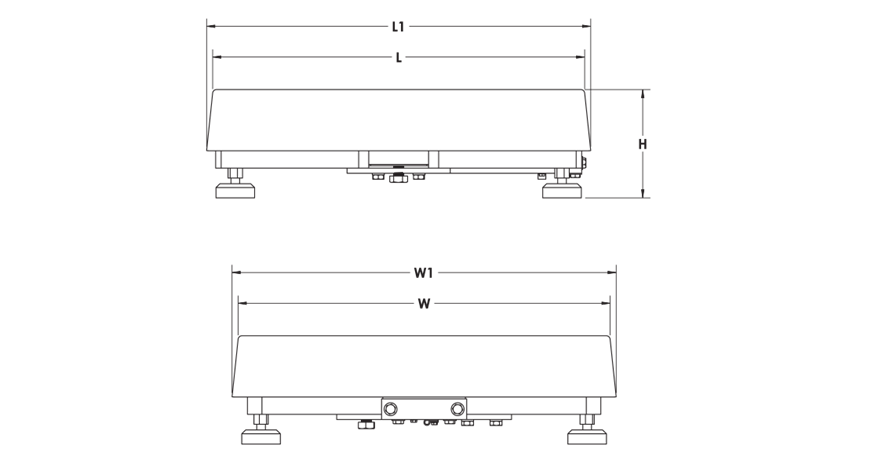

12 in x 18 in
H 5.25 in (133 mm) W 18.00 in (457 mm)
L 12.00 in (305 mm) W1 18.50 in (470 mm)
L1 12.50 in (318 mm)
18 in x 18 in
H 5.25 in (133 mm) W 18.00 in (457 mm)
L 18.00 in (457 mm) W1 18.75 in (476 mm)
L1 18.75 in (476 mm)
18 in x 24 in
H 5.25 in (133 mm) W 24.00 in (610 mm)
L 18.00 in (457 mm) W1 24.75 in (629 mm)
L1 18.75 in (476 mm)
24 in x 24 in
H 5.25 in (133 mm) W 24.00 in (610)
L 24.00 in (610 mm) W1 24.75 in (629 mm)
L1 24.75 in (629 mm)

Resources / Downloads

Title Download Email
BenchMark HE-X Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark HE-X Technical Manual B Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Download Email
BenchMark HE-X Replacement Parts Catalog Download Email

Title Collateral Wizard Request Download Email Category
BenchMark HE-X Bench Scale Collateral Wizard Request Download Email Platform Scales|Bench Scales|Washdown Scales

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

Part # Description List Price Cart
192346 Scale, BENCHMARK HE-X BMX1218S-50 12x18x5-1/4 50lb 10ft SST

List Price: $2,925.00

192347 Scale, BENCHMARK HE-X BMX1218S-100 12x18x5-1/4 100lb 10ft SST

List Price: $2,925.00

191455 Scale, BENCHMARK HE-X BMX1818S-50 18x18x5-1/4 50lb 10ft SST

List Price: $3,100.00

191456 Scale, BENCHMARK HE-X BMX1818S-100 18x18x5-1/4 100lb 10ft SST

List Price: $3,100.00

191457 Scale, BENCHMARK HE-X BMX1818S-150 18x18x5-1/4 150lb 10ft SST

List Price: $3,100.00

191458 Scale,BENCHMARK HE-X BMX1818S-200 18x18x5-1/4 200lb 10ft SST

List Price: $3,100.00

191459 Scale, BENCHMARK HE-X BMX1818S-250 18x18x5-1/2 250lb 10ft SST

List Price: $3,100.00

191460 Scale, BENCHMARK HE-X BMX1818S-300 18x18x5-1/2 300lb 10ft SST

List Price: $3,100.00

191461 Scale, BENCHMARK HE-X BMX1818S-500 18x18x5-1/2 500lb 10ft SST

List Price: $3,100.00

191462 Scale, BENCHMARK HE-X BMX1818S-1000 18x18x5-1/2 1000lb 10ft SST

List Price: $3,100.00

191467 Scale, BENCHMARK HE-X BMX1824S-50 18x24x5-1/4 50lb 10ft SST

List Price: $3,345.00

191469 Scale, BENCHMARK HE-X BMX1824S-100 18x24x5-1/4 100lb 10ft SST

List Price: $3,345.00

191470 Scale, BENCHMARK HE-X BMX1824S-150 18x24x5-1/4 150lb 10ft SST

List Price: $3,345.00

191472 Scale, BENCHMARK HE-X BMX1824S-200 18x24x5-1/4 200lb 10ft SST

List Price: $3,345.00

191473 Scale, BENCHMARK HE-X BMX1824S-250 18x24x5-1/2 250lb 10ft SST

List Price: $3,345.00

191474 Scale, BENCHMARK HE-X BMX1824S-300 18x24x5-1/2 300lb 10ft SST

List Price: $3,345.00

191475 Scale, BENCHMARK HE-X BMX1824S-500 18x24x5-1/2 500lb 10ft SST

List Price: $3,345.00

191476 Scale, BENCHMARK HE-X BMX1824S-1000 18x24x5-1/2 1000lb 10ft SST

List Price: $3,345.00

191479 Scale, BENCHMARK HE-X BMX2424S-100 24x24x5-1/4 100lb 10ft SST

List Price: $3,600.00

191480 Scale, BENCHMARK HE-X BMX2424S-150 24x24x5-1/4 150lb 10ft SST

List Price: $3,600.00

191481 Scale, BENCHMARK HE-X BMX2424S-200 24x24x5-1/4 200lb 10ft SST

List Price: $3,600.00

191482 Scale,BENCHMARK HE-X BMX2424S-250 24x24x5-1/2 250lb 10ft SST

List Price: $3,600.00

191483 Scale, BENCHMARK HE-X BMX2424S-300 24x24x5-1/2 300lb 10ft SST

List Price: $3,600.00

191485 Scale, BENCHMARK HE-X BMX2424S-500 24x24x5-1/2 500lb 10ft SST

List Price: $3,600.00

191486 Scale, BENCHMARK HE-X BMX2424S-1000 24x24x5-1/2 1000lb 10ft SST

List Price: $3,600.00

Options

Part # Description List Price Cart
112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legend Series,680 Synergy Series 380 Synergy Series

List Price: $145.00

112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI,480/482 Legend Series, 680 Synergy Series 380 Synergy Series

List Price: $195.00

196363 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $225.00

196364 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $275.00

197484 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $215.00

197482 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply option (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $165.00

NA Ball transfer and roller conveyor top

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
