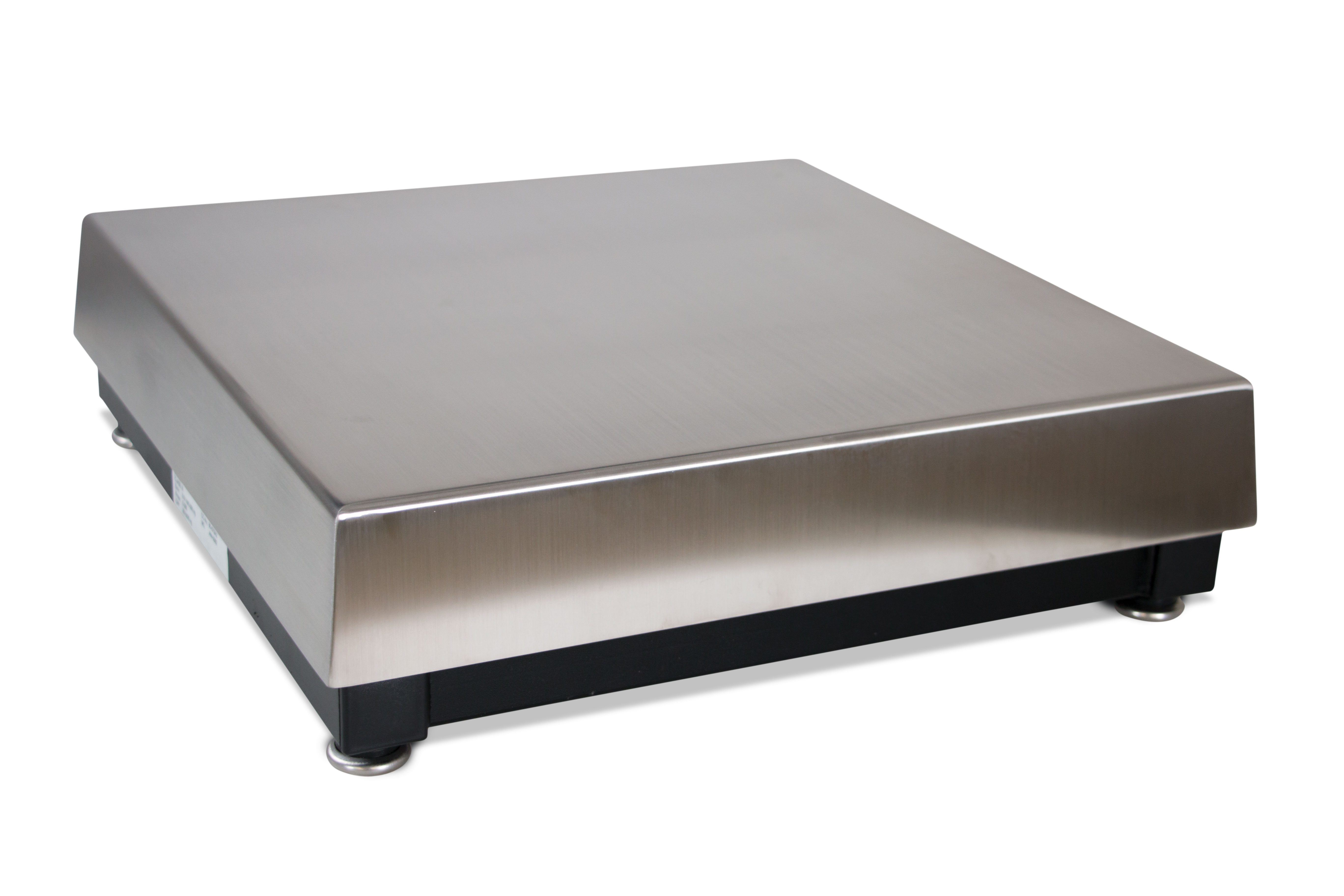

BenchMark® MS Mild Steel Bench Scale

  • Painted mild steel frame with 304 stainless steel cover
  • Base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM CUS LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Extremely Accurate Bench Scale

Ideal for dry environments, the BenchMark MS mild steel bench scale has a heavy-duty construction that provides ultimate durability, sensitivity and long life for a variety of weighing. Finished with a painted, mild steel tubular frame and 304 stainless steel cover, this model features aluminum, environmentally sealed load cells. Five standard platform sizes offer a wide variety of capacities. Custom platform sizes and capacities are available.

Load Cell, NTEP Certified:
IP66 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
150% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

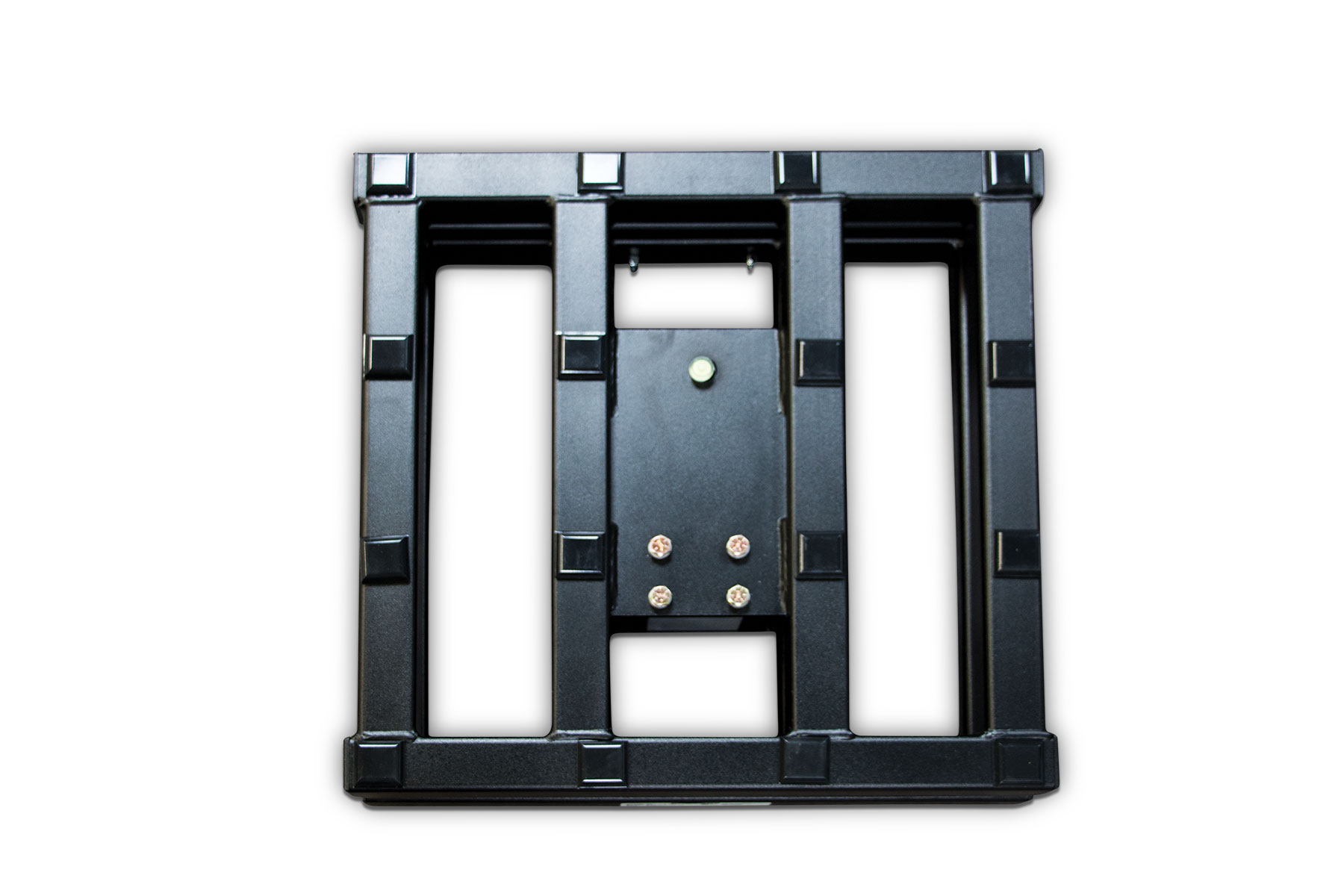

Scale Frame:
Mild steel powder coated black

Scale Cover:
AISI304L, straight line finish, Ra=45 ±10

Cable Length:
10 ft (3 m)

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Two-year limited

Approvals:
NTEP 95-072, Class III, 5,000 d
Measurement Canada AM-5082

12 × 12 in
H 4.12 in  W 12.00 in
L 12.00 in W1 12.50 in
L1 12.50 in
12 × 18 in
H 4.12 in W 18.00 in
L 12.00 in  W1 18.50 in
L1 12.50 in
18 × 18 in
H 5.25 in  W 18.00 in
L 18.00 in  W1 18.75 in
L1 18.75 in
24 × 18 in
H 5.25 in  W 18.00 in
L 24.00 in W1 18.75 in
L1 24.75 in
24 × 24 in
H 5.25 in  W 24.00 in
L 24.00 in  W1 24.75 in
L1 24.75 in
Note: 1 in = 25.4 mm

Resources / Downloads

Title View Email Category Type
New Vision View Email Bench Scales|Indicators / Controllers|Remote Displays / Scoreboards Application Story

Title Download Email
BenchMark MS Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark MS, SS, HE Technical Manual B Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Download Email
BenchMark Single Point Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
BenchMark Series Bench Scales Request Download Email Platform Scales|Bench Scales

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

Part # Description List Price Cart
18580 Scale,BENCHMARK BM1212-30 12x12x4-1/8 30 lb 10ft NTEP III Steel Painted SST Cover

List Price: $890.00

18582 Scale,BENCHMARK BM1212-50 12x12x4-1/8 50 lb 10ft NTEP III Steel Painted SST Cover

List Price: $890.00

18584 Scale,BENCHMARK BM1212- 100 12x12x4-1/8 100 lb 10ft NTEP III Steel Painted SST Cover

List Price: $890.00

18586 Scale,BENCHMARK BM1218-50 12x18x4-1/8 50 lb 10ft NTEP III Steel Painted SST Cover

List Price: $980.00

18588 Scale,BENCHMARK BM1218- 100 12x18x4-1/8 100 lb 10ft NTEP III Steel Painted SST Cover

List Price: $980.00

18590 Scale,BENCHMARK BM1818-50 18x18x5-1/4 50 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18592 Scale,BENCHMARK BM1818- 100 18x18x5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18594 Scale,BENCHMARK BM1818- 150 18x18x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18596 Scale,BENCHMARK BM1818- 200 18x18x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18598 Scale,BENCHMARK BM1818- 250 18x18x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18600 Scale,BENCHMARK BM1818- 300 18x18x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18602 Scale,BENCHMARK BM1818- 500 18x18x5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18604 Scale,BENCHMARK BM1818-1K 18x18x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,210.00

18606 Scale,BENCHMARK BM1824-50 18x24x5-1/4 50 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18608 Scale,BENCHMARK BM1824- 100 18x24-5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18610 Scale,BENCHMARK BM1824- 150 18x24x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18612 Scale,BENCHMARK BM1824- 200 18x24x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18614 Scale,BENCHMARK BM1824- 250 18x24x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18616 Scale,BENCHMARK BM1824- 300 18x24x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18618 Scale,BENCHMARK BM1824- 500 18x24-5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18620 Scale,BENCHMARK BM1824-1K 18x24x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,335.00

18622 Scale,BENCHMARK BM2424- 100 24x24x5-1/4 100 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,470.00

18624 Scale,BENCHMARK BM2424- 150 24x24x5-1/4 150 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,470.00

18626 Scale,BENCHMARK BM2424- 200 24x24x5-1/4 200 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,470.00

18628 Scale,BENCHMARK BM2424- 250 24x24x5-1/4 250 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,470.00

18630 Scale,BENCHMARK BM2424- 300 24x24x5-1/4 300 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,470.00

18632 Scale,BENCHMARK BM2424- 500 24x24x5-1/4 500 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,470.00

18634 Scale,BENCHMARK BM2424-1K 24x24x5-1/4 1,000 lb 10ft NTEP III Steel Painted SST Cover

List Price: $1,470.00

Options

Part # Description List Price Cart
112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legend Series,680 Synergy Series 380 Synergy Series

List Price: $145.00

112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI,480/482 Legend Series, 680 Synergy Series 380 Synergy Series

List Price: $195.00

64576 Bracket,Attachment Kit OPT, Benchmark for IQ+210, 480/482 Legend Series, 680 Synergy Series, 380 Synergy Series

List Price: $100.00

22125 LIT,Manual Benchmark Scale

Call for price

196363 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $225.00

196364 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $275.00

197482 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply option (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $165.00

197484 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $215.00

NA Ball transfer and roller conveyor top

Call for price
