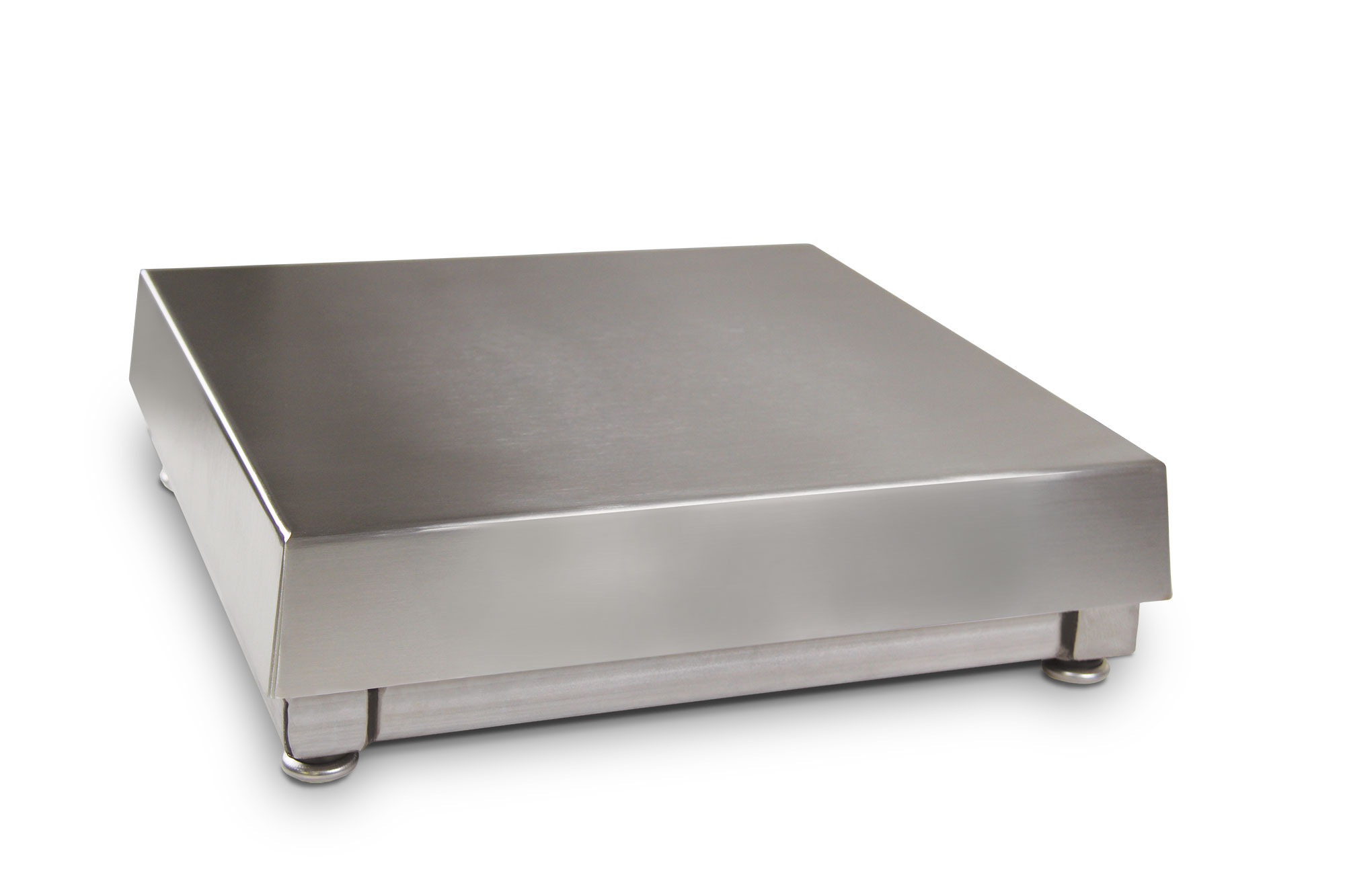

BenchMark® SS Stainless Steel Bench Scale

  • 304 stainless steel frame and cover

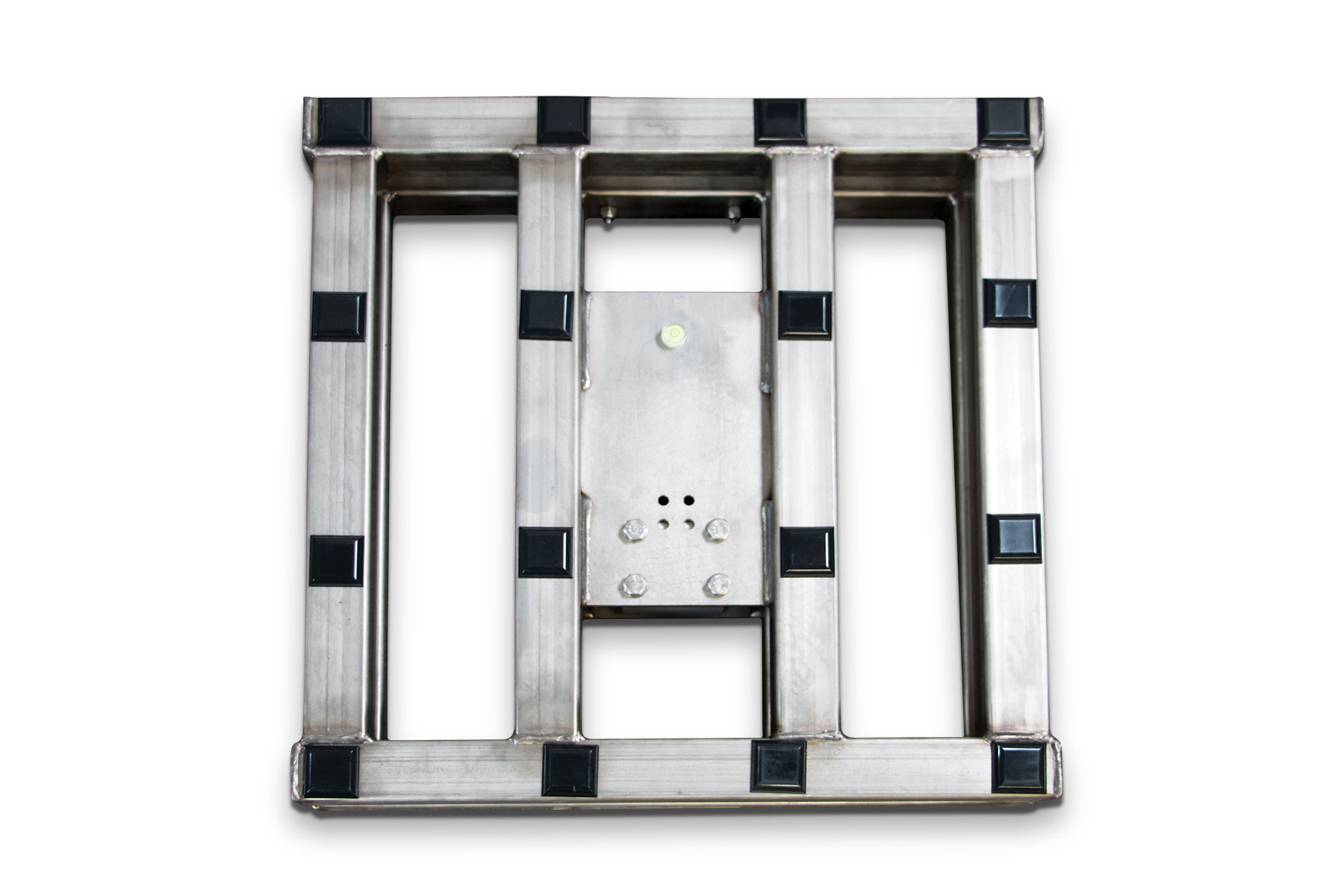

  • Base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM Approved OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Extremely Accurate Medium to High Capacity Weighing

BenchMark’s heavy-duty construction provides ultimate durability, sensitivity and long life for a variety of demanding weighing environments. Five standard platform sizes offer a wide variety of capacities. Custom sizes and capacities are available.

Load Cell, NTEP Certified:
IP66 aluminum, environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
150% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, glass bead blasted for even appearance

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Two-year limited

Approvals:
NTEP CC 95-072, Class III, 5,000 d
Measurement Canada AM-5082, Class III, 5,000 d

12 in x 18 in
H 4.00 in (102 mm) W 18.00 in (457 mm)
L 12.00 in (305 mm) W1 18.50 in (470 mm)
L1 12.50 in (318 mm)
18 in x 18 in
H 5.25 in (133 mm) W 18.00 in (457 mm)
L 18.00 in (457 mm) W1 18.75 in (476 mm)
L1 18.75 in (476 mm)
18 in x 24 in
H 5.25 in (133 mm) W 18.00 in (457 mm)
L 24.00 in (610 mm) W1 18.75 in (476 mm)
L1 24.75 in (629 mm)
24 in x 24 in
H 5.25 in (133 mm) W 24.00 in (610)
L 24.00 in (610 mm) W1 24.75 in (629 mm)
L1 24.75 in (629 mm)

Resources / Downloads

Title View Email Category Type
Birchwood's Bluegills View Email Application Story
Prince Edward Island View Email Checkweighers|Indicators / Controllers|Weight Indicators Application Story
Surviving the Tignish Wind View Email Indicators / Controllers|Weight Indicators|Checkweighers Application Story

Title Download Email
BenchMark SS Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark MS, SS, HE Technical Manual B Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Download Email
BenchMark Single Point Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
BenchMark Series Bench Scales Collateral Wizard Request Download Email Platform Scales|Bench Scales

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

Part # Description List Price Cart
186222 Scale,BENCHMARK BM1218S- 50 12x18x4 50 lb 10ft NTEP III SST

List Price: $1,040.00

186223 Scale,BENCHMARK BM1218S- 100 12x18x4 100 lb 10ft NTEP III SST

List Price: $1,040.00

18591 Scale,BENCHMARK BM1818S- 50 18x18x5-1/4 50 lb 10ft NTEP III SST

List Price: $1,440.00

18593 Scale,BENCHMARK BM1818S- 100 18x18x5-1/4 100 lb 10ft NTEP III SST

List Price: $1,440.00

18595 Scale,BENCHMARK BM1818S- 150 18x18x5-1/4 150 lb 10ft NTEP III SST

List Price: $1,440.00

18597 Scale,BENCHMARK BM1818S- 200 18x18x5-1/4 200 lb 10ft NTEP III SST

List Price: $1,440.00

18599 Scale,BENCHMARK BM1818S- 250 18x18x5-1/4 250 lb 10ft NTEP III SST

List Price: $1,440.00

18601 Scale,BENCHMARK BM1818S- 300 18x18x5-1/4 300 lb 10ft NTEP III SST

List Price: $1,440.00

18603 Scale,Benchmark BM1818S- 500lb 10ft NTEP III SST

List Price: $1,440.00

18605 Scale,BENCHMARK BM1818S- 1K 18x18x5-1/4 1,000 lb 10ft NTEP III SST

List Price: $1,440.00

18607 Scale,BENCHMARK BM1824S- 50 18x24x5-1/4 50 lb 10ft SST

List Price: $1,715.00

18609 Scale,BENCHMARK BM1824S- 100 18x24x5-1/4 100 lb 10ft NTEP III SST

List Price: $1,715.00

18611 Scale,BENCHMARK BM1824S- 150 18x24x5-1/4 150 lb 10ft NTEP III SST

List Price: $1,715.00

18613 Scale,BENCHMARK BM1824S- 200 18x24x5-1/4 200 lb 10ft NTEP III SST

List Price: $1,715.00

18615 Scale,BENCHMARK BM1824S- 18x24x5-1/4 250 lb 10ft NTEP III SST

List Price: $1,715.00

18617 Scale,BENCHMARK BM1824S- 300 18x24x5-1/4 300 lb 10ft NTEP III SST

List Price: $1,715.00

18619 Scale,BENCHMARK BM1824S- 500 18x24x5-1/4 500 lb 10ft NTEP III SST

List Price: $1,715.00

18621 Scale,BENCHMARK BM1824S- 1K 18x24x5-1/4 1,000 lb 10ft NTEP III SST

List Price: $1,715.00

18623 Scale,BENCHMARK BM2424S- 100 24x24x5-1/4 100 lb 10ft NTEP III SST

List Price: $2,110.00

18625 Scale,BENCHMARK BM2424S- 150 24x24x5-1/4 150 lb 10ft NTEP III SST

List Price: $2,110.00

18627 Scale,BENCHMARK BM2424S- 200 24x24x5-1/4 200 lb 10ft NTEP III SST

List Price: $2,110.00

118629 PL9710 Analog Output Kit Analog Output Module 4-20 mA Current Loop

List Price: $440.00

18631 Scale,BENCHMARK BM2424S- 300 24x24x5-1/4 300 lb 10ft NTEP III SST

List Price: $2,110.00

18633 Scale,BENCHMARK BM2424S- 500 24x24x5-1/4 500 lb 10ft NTEP III SST

List Price: $2,110.00

18635 Scale,BENCHMARK BM2424S- 1K 24x24x5-1/4 1,000 lb 10ft NTEP III SST

List Price: $2,110.00

Options

Part # Description List Price Cart
112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legend Series,680 Synergy Series 380 Synergy Series

List Price: $145.00

112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI,480/482 Legend Series, 680 Synergy Series 380 Synergy Series

List Price: $195.00

64576 Bracket,Attachment Kit OPT, Benchmark for IQ+210, 480/482 Legend Series, 680 Synergy Series, 380 Synergy Series

List Price: $100.00

22125 LIT,Manual Benchmark Scale

List Price: $5.25

196363 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $225.00

196364 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $275.00

197482 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply option (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $165.00

197484 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $215.00
