CLS-680 Forklift Scale Display

  • Bright six-digit, seven-segment LED display
  • Battery backed time and date
  • Full numeric keypad
  • Two serial ports: RS-232, one reserved for CLS
  • Numeric keyed entry allowed for tare
  • Formattable tickets
  • CLS user modes
  • Machined aluminum enclosure with rounded corners
  • WiFi standard
  • Bluetooth® standard
  • Embedded PIFA antenna
  • RAM style mount ability
  • M16 connector, CLS scale connection
  • M12 connector - RS232
  • Power cable connector
  • RS-232 connection with power
  • PreVent breather vent
  • Illuminated power switch

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Designed Specifically for Forklift Scale Applications

With a machined aluminum anodized enclosure, the CLS-680 is ideal for demanding, general-purpose forklift applications. Its compact size is attached with a RAM® mount for flexible positioning and minimal obstruction. Additional features include rounded corners, vibration protection and surge suppression.

Power:
DC voltages: 9-36 VDC

Communication Ports:
Two RS-232 full duplex, one reserved for CLS
Bluetooth SSP
WiFi: Wireless 802.11 b/g/n 2.5 GHz
Zigbee, reserved for CLS cableless option

Status Annunciators:
Ten LED annunciators

Display:
Six 0.5 in tall, seven-segment digits

Keys/Buttons:
Flat membrane panel, tactile feel (18 buttons)

Temperature Range:
Legal: 14°F to 104°F (-10°C to 40°C)
Industrial: 14°F to 122°F (-10°C to 50°C)

Dimensions (W X H X D):
6.5 in x 5.2 in x 3.3 in
(16.5 cm x 13.2 cm x 8.4 cm)

Estimated Weight:
3.7 lb (1.7 kg)

Material:
Machined aluminum enclosure, anodized finish

EMC Immunity:
EN 50082 Part 2 IEC 61000-4-2,3,4,5,6,8 and 11

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 19-021, Class III/IIIL, 5,000d

  • Cableless interface to CLS with Zigbee module
  • RAM style mounts
  • Molded M12 serial cables

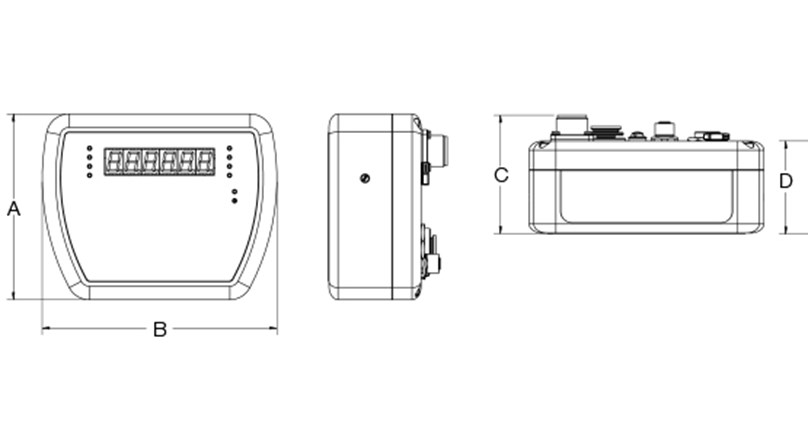

Dimensions
A 5.25 in (133.4 mm)
B 6.5 in (165.1 mm)
C 3.3 in (83.8 mm)
D 2.5 in (63.5 mm)



Resources / Downloads

Title Download Email
CLS-680 Catalog Page Download Email

Title Version Revision Download Email Category Archived
CLS-680 Forklift Scale Display Technical Manual A Download Email Forklift No

Title Collateral Wizard Request Download Email Category
CLS Series Forklift Scales Request Download Email

Title Version Size Download Email
CLS-680 Firmware 1.02.00 324.7 KB Download Email

Title View Download Email Category
CLS-680 Manual Module (Interactive) View Email Forklift

Parts

Part # Description List Price Cart
201300 Scale PKG,CLS-680 5000lb Capacity,Class II,34",Wired,9-36VDC, RAM Mount,Mode 600,5000x5lb NTEP

List Price: $7,860.00

Options

Part # Description List Price Cart
166161 Power Line Filter, CLS DC EMI FIlter, 0-75 VDC input voltage, 100 Vdc surge.

List Price: $95.00

167498 Cable,Extension 2 Meters 125395 Coiled Cable Extension, Straight, Molded Turk PN BSM BKM 5-084-2

List Price: $160.00

188193 CLS Calibration Hook Set

List Price: $245.00

Consult Bluetooth Option for CLS-680

Call for price

Consult WiFi Option for CLS-680

Call for price

Consult DC to DC converter, chassis mount

Call for price
