NTEP Certified
5,000 × 2 lb capacity and resolution, up to 42 in forks
Two 5,000 lb stainless steel load cells
iQUBE series digital junction box, stainless steel enclosure
Large viewing window for operator
1.5 in thick steel front and rear plates
Top cleats are pinned, bolted and welded
Four flexure system made from high strength stainless steel
Debris guards for top and sides
Stainless steel load cell rod bolts
Replaceable centering pin
Replaceable centering notch
Overload and underload stops
Field serviceable flexures and load cells
Wired or cable-less connectivity
Weight Indication Choices
CLS-680
CLS-920i
Windows® Mobile PC, tablets and handhelds, compatible with VIRTUi³®
Presale Requirements
Provide completed forklift questionnaire for quotation
Compatible with most Class II forklift attachments, consult factory
Installation Recommendations
When installing a forklift scale, OSHA requires the end user to de-rate the lift capacity of the forklift
Options
Narrow width backplate
Front plate width variations
CLS-680, 18 to 72 VDC
Mobile printer
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65

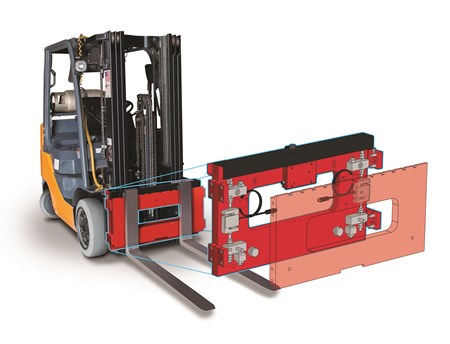

The CLS NextGen Pro is a Legal for Trade forklift scale with a 2-pound resolution when weighing with 42-inch forks. It mounts directly on Class II forklifts, streamlining weighing processes in busy environments. The CLS NextGen Pro reduces downtime for scale maintenance by having field-serviceable centering pins, centering notches, flexures and load cells.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 231802 | CLS680-3436-PRO, 16 × 36 in carriage plate, 9 to 36 VDC, wired | Consult | |
| 231803 | CLS680-3436-PRO, 16 × 36 in carriage plate, 9 to 36 VDC, cableless | Consult |
The CLS-680 was designed from the ground-up specifically for forklift applications. With a machined aluminum anodized enclosure, the CLS-680 is ideal for demanding, general-purpose forklift applications.
