Scale Carriage
38 in, 8,000 × 5 lb, non-NTEP
1.5 in thick front and back painted steel plates coupled by four flexures
Top cleats are welded, pinned and bolted
Welded centering pin
Two 5,000 lb S-beam load cells
iQUBE²® junction box with inclinometer
Molded coiled cable, up to 15 ft uncoiled
Presale Requirements
Provide completed forklift questionnaire for quotation
Compatible with most Class III forklift attachments, consult factory
Installation Recommendations
When installing a forklift scale, OSHA requires the end user to de-rate the lift capacity of the forklift
Options
CLS-680, 18 to 72 VDC
VIRTUi³®
Mobile printer
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65

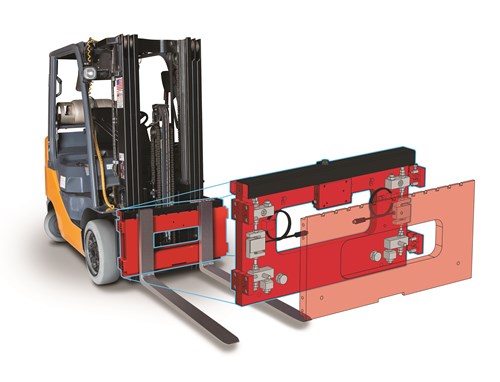

The CLS Series Class III forklift scale mounts directly to most Class III forklifts, saving time and money throughout material handling. The CLS Series quickly weighs shipments and provides weights that are not Legal for Trade. Results can be displayed with a Rice Lake Weighing Systems indicator specifically designed for the CLS or through a device supporting VIRTUi³® software.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 212521 | Scale PKG, CLS-680, 8000lb Capacity, Class III, 38", Wired, 9-36VDC, WiFi/WPAN, RAM Mount, Mode 609, 8000x5lb, (not NTEP approved) | List Price: $13,140.00 | |
| 214092 | Scale PKG, CLS-680, 8000lb Capacity, Class III, 38", Cable-less, 9-36VDC, WiFi/WPAN, RAM Mount, Mode 609, 8000x5lb (not NTEP approved) | List Price: $15,190.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 166161 | Power Line Filter, CLS DC EMI FIlter, 0-75 VDC input voltage, 100 Vdc surge. | List Price: $116.00 | |
| 167498 | Cable,Extension 2 Meters 125395 Coiled Cable Extension, Straight, Molded Turk PN BSM BKM 5-084-2 | List Price: $210.00 | |
| 120160 | Weight, 1000lb Forklift Testing 22-1/2 x 46-1/4 Rectangle Steel Class 6 | List Price: $3,200.00 | |
| 120162 | Weight, 2000lb Forklift Testing 22-1/2 x 46-1/4 Rectangle Steel Class 6 | List Price: $7,500.00 | |
| 164071 | J-Box Assy,CLS Series Forklift Scale,iQube 2.3,34 Inch Scale Assy | List Price: $695.00 | |
| Consult | Cableless option, order upgrade that also includes two batteries and charger | Consult |
The CLS-920 is a version of the 920i specifically designed for the CLS forklift scale. It incorporates the flexibility, intelligence and programmability of the 920i in a smaller enclosure with a DC power supply for use on forklifts.
