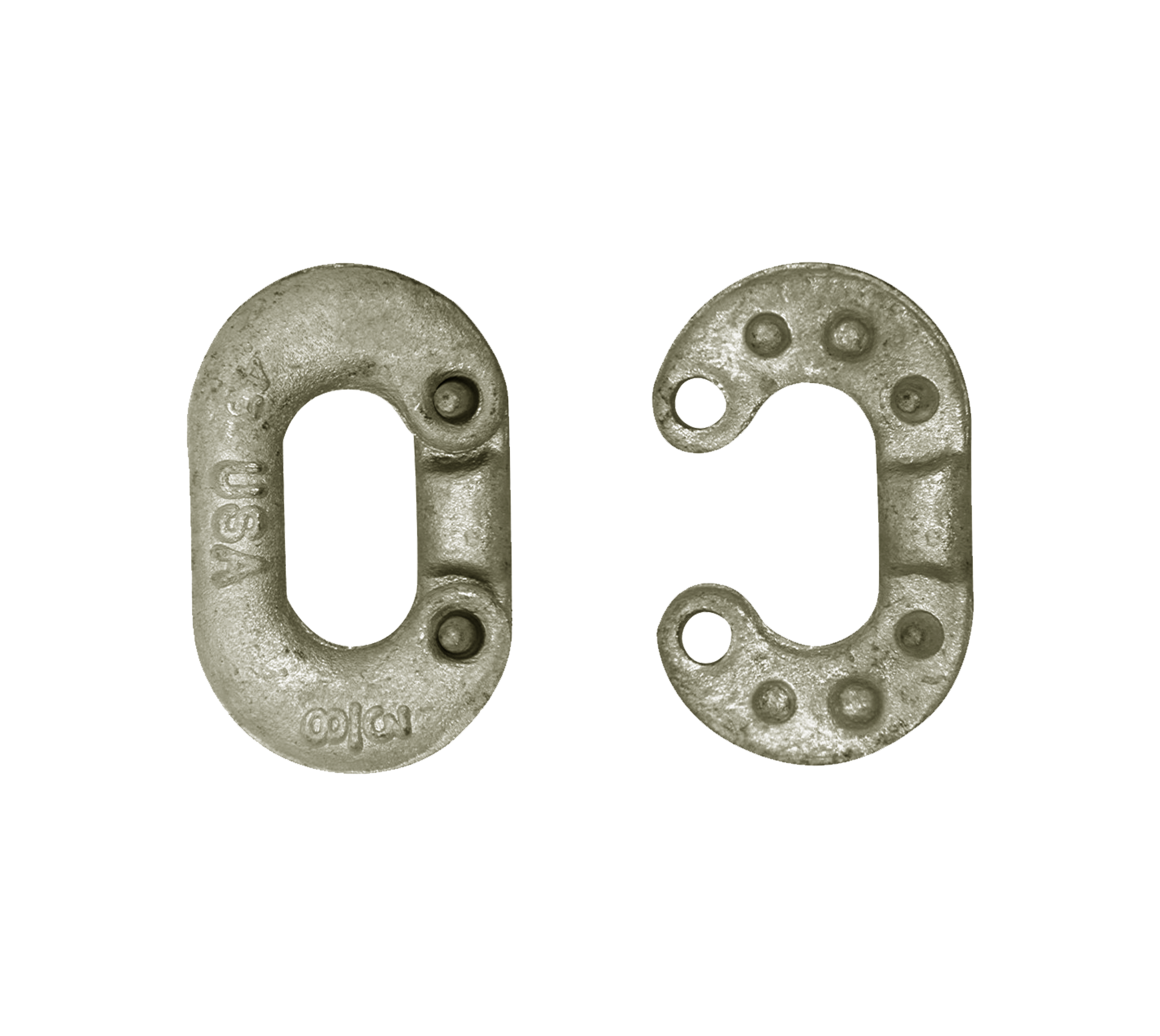

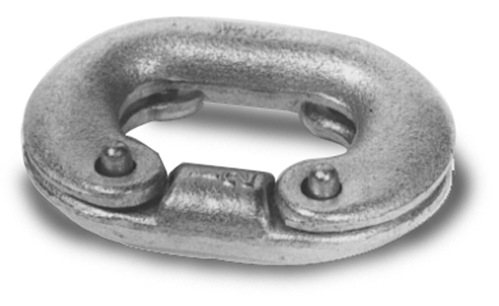

Connecting Links

  • Drop-forged carbon steel, heat-treated, hot-dipped galvanized finish

Connecting links are a vital hardware component to a functioning tension mounting assembly or other suspended weighing system assemblies. Drop-forged steel is reinforced and allows links to maximize safe load capacity up to 15,500 pounds.

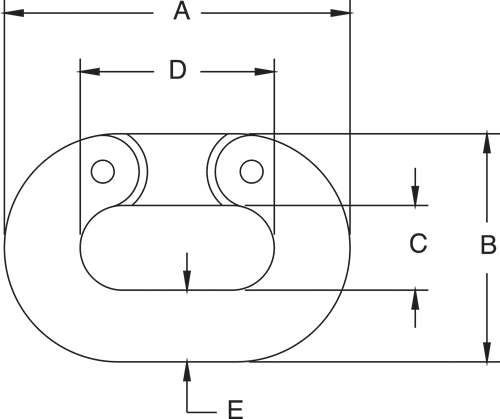

Part # A B C D E Safe Load*
17794 1.50 in 1.00 in 0.43 in 0.87 in 0.25 in 1,325 lb
17795 2.06 in 1.37 in 0.56 in 1.12 in 0.37 in 2,750 lb
17796 2.65 in 1.71 in 0.65 in 1.46 in 0.50 in 4,750 lb
17797 3.31 in 2.09 in 0.78 in 1.81 in 0.62 in 7,250 lb
17798 3.87 in 2.50 in 0.93 in 2.12 in 0.75 in 10,250 lb
17799 5.00 in 3.31 in 1.25 in 2.75 in 1.00 in 15,500 lb
*Do not exceed the safe load





Resources / Downloads

Title Download Email
Connecting Links Catalog Page Download Email

Parts

Part # Description List Price Cart
17794 Missing Link,1/4in 1,325 lb Steel Galvanized

List Price: $42.00

17795 Missing Link,3/8in 2,750 lb Steel Galvanized

List Price: $45.00

17796 Missing Link,1/2in 4,750 lb Steel Galvanized

List Price: $45.00

17797 Missing Link,5/8in 7,250 lb Steel Galvanized

List Price: $55.00

17798 Missing Link,3/4in 10,250 lb Steel Galvanized

List Price: $74.00

17799 Missing Link,1in 15,500 lb Steel Galvanized

List Price: $127.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
