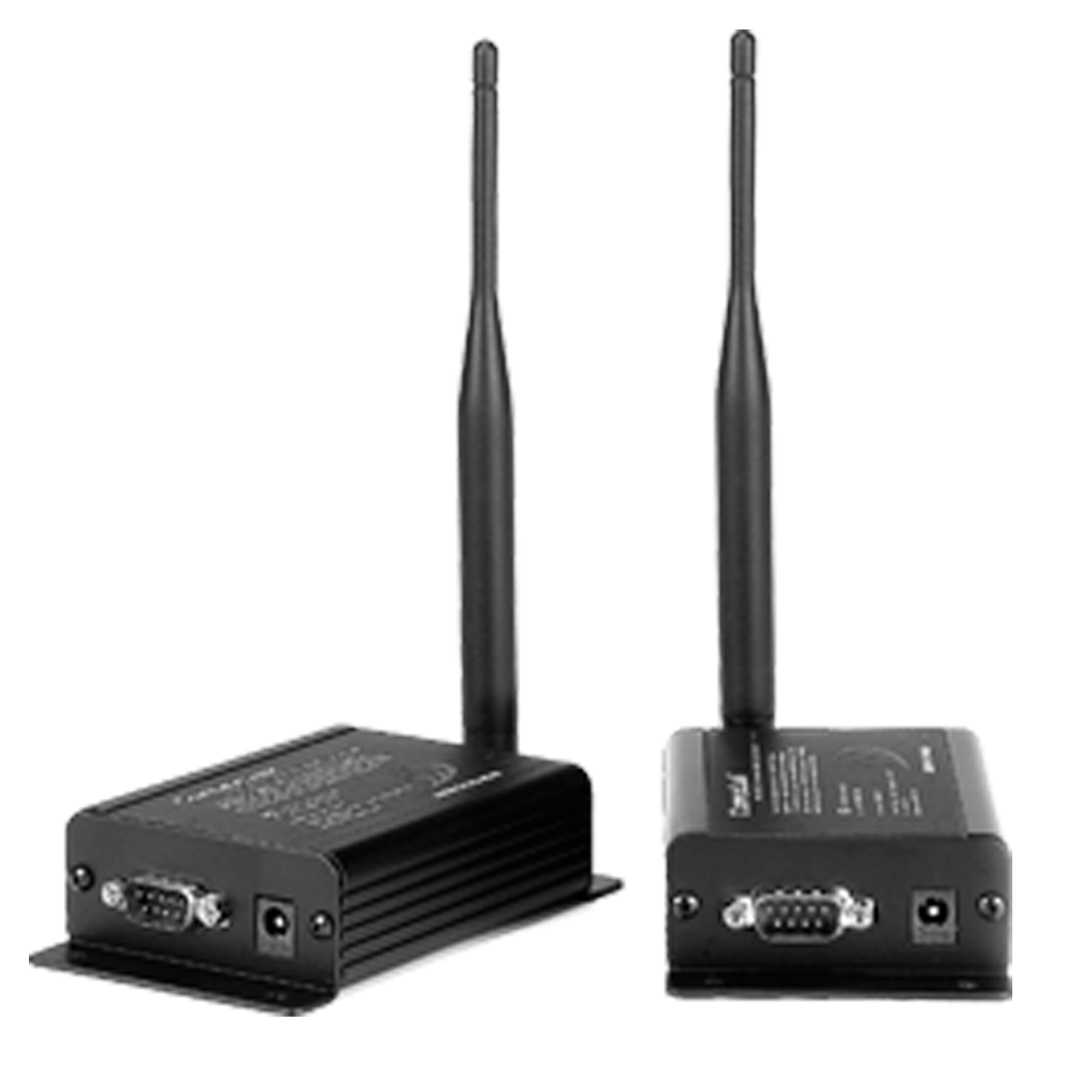

ConnexLink™ Wireless Radio 900 MHZ Transceivers

  • Durable industrial-grade enclosure with mounting flanges
  • Reliable communications up to 115 to 200 kbps

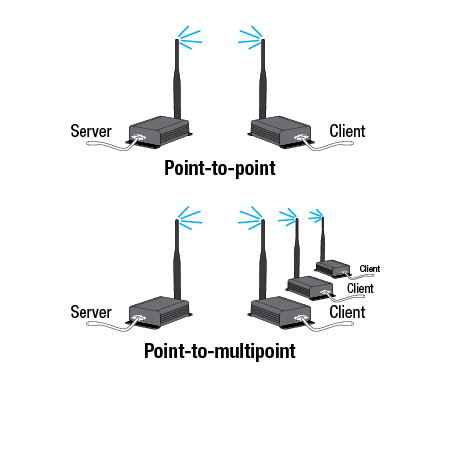

  • Supports point-to-point and point-to-multipoint applications

ConnexLink 900 MHZ wireless radio easily communicates data between various electronics in your scale system.

Power:
Input: 7 to 18 VDC
Output: 5 to 1,000 mW variable

Frequency Band:
902 to 928 MHz

Modulation:
FHSS FSK

Interface:
Standard: RS-232 (DB9 male)
ConnexLink PRO: RS-485 (6-pin terminal block)

Serial Interface Data Rate:
Up to 115 to 200 kbps

Current Draw (at 12 VDC):
400 mA TXD, 40 mA RXD

Power Supply:
AC transformer via 6 ft cable (183 cm)

Electrical Requirements:
Line voltage 100 to 120 V; frequency 50/60 Hz
(240 V outside the US)

Channels:
32 selectable channels

Security:
1-byte system ID, DES

Sensitivity:
-99dB at full RF data rate

Range (line-of-sight):
Up to 20 miles (32 km)

Dimensions:
4.75 × 2.75 × 1.17 in
(121 × 70 × 30 mm)

Temperature Range:
-40 °F to 176 °F (-40 °C to 80 °C)
Humidity (non-condensing):
10% to 90%

Weight:
<6 oz (<170 g)

Antenna Connector:
Reverse polarity SMA jack (female)

Resources / Downloads

Title Download Email
ConnexLink 900 MHZ Catalog Page Download Email

Title Version Revision Download Email Category Archived
ConnexLink Wireless Radio 900 MHZ Installation for LaserLight2 A Download Email Remote Displays / Scoreboards No

Title Version Size Release Date Download Email
ConnexLink Configuration Wizard 2.01 18.6 MB 08/20/2019 Download Email

Title View Download Email Category
Configuring and Setting up Two ConnexLink Radios View Download Email Indicator Hardware|Wireless Communications

Parts

Part # Description List Price Cart
86134 Transceiver,Wireless RF ConnexLink, 900 MHz, 1W, RS232, Includes Power Supply, 2.0 dBi Antenna, RS232 Cable

List Price: $365.00

105776 Transceiver,Wireless RF ConnexLink PRO, 900 MHz, 1W, RS232, RS485, Includes Power Supply 2.0 dBi Antenna

List Price: $450.00

129662 Transceivers,Pair, RF Wireless ConnexLink, 900 MHz, 1W, RS232, 9600 8 none. Radios uniquely matched and labeled as client and server Includes Power Supply, 2.0 dBi Antenna, RS232 Cable, Configuration CD

List Price: $735.00

Options

Part # Description List Price Cart
78827 Power Supply,ConnexLink 110-240VAC Input, Output 7.5VDC 2.0A

List Price: $65.00

103979 Antenna,ConnexLink 900MHz 1/2 Wave 2 dBi 7 Inch RPSMA COMPATIBLE WITH #86134 AND #105776

List Price: $55.00

119448 Antenna,Yagi 900 MHz 9 dBi N Female connector (Cable Required) HG909Y-NF

List Price: $165.00

119449 Cable,Antenna 20Ft RP-SMA Plug To N Male 195 Series, Yagi CA-RSPNMA020

List Price: $95.00

110538 Housing,FRP Connexlink 900MHz with Heater.

List Price: $1,565.00

110539 Housing,FRP Connexlink Pro with Heater.

List Price: $1,565.00

22436 Cable,COMM DB9F 9 Pin FEM On One End Stripped And Tinned On Other End 6ft Pin 2 (Brown) Pin3 (Red) pin 5 (Yellow)

List Price: $67.00

98084 Cable,ASSY Power Single Ended 2.1mm ID 5.5mm OD 12mm Barrel Length Six Foot 18AWG

List Price: $15.75
