Counterpart® Configurable Counting Indicator

  • AC operated (battery operation is optional)
  • LCD graphic transmissive display for indoor viewing
  • Single- or dual-channel models with serial scale input
  • Mix and match platforms with console
  • Four setpoint outputs for counting
  • Two RS-232 ports for connecting peripherals
  • Ethernet TCP/IP
  • Scanner input (RS-232)
  • PC software utility (Revolution®) for setup
  • 150 item memory

Options

  • Battery
  • USB connection for USB keyboard
  • WeighVault™ software for ID entry, data registers and reports

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL Listed LOGO Measurementcanada Approved BW CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

More than a weight indicator and more than a counting scale, Counterpart from Rice Lake stands alone as a configurable counting indicator, able to convert almost any scale base into an intelligent piece-counting device—for parts of every shape and size.

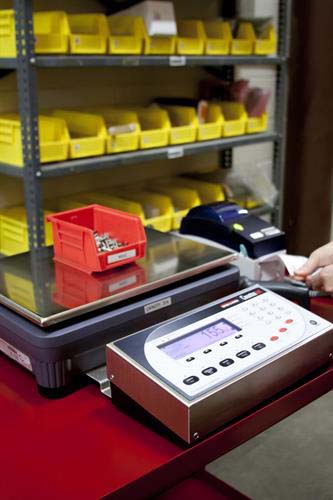

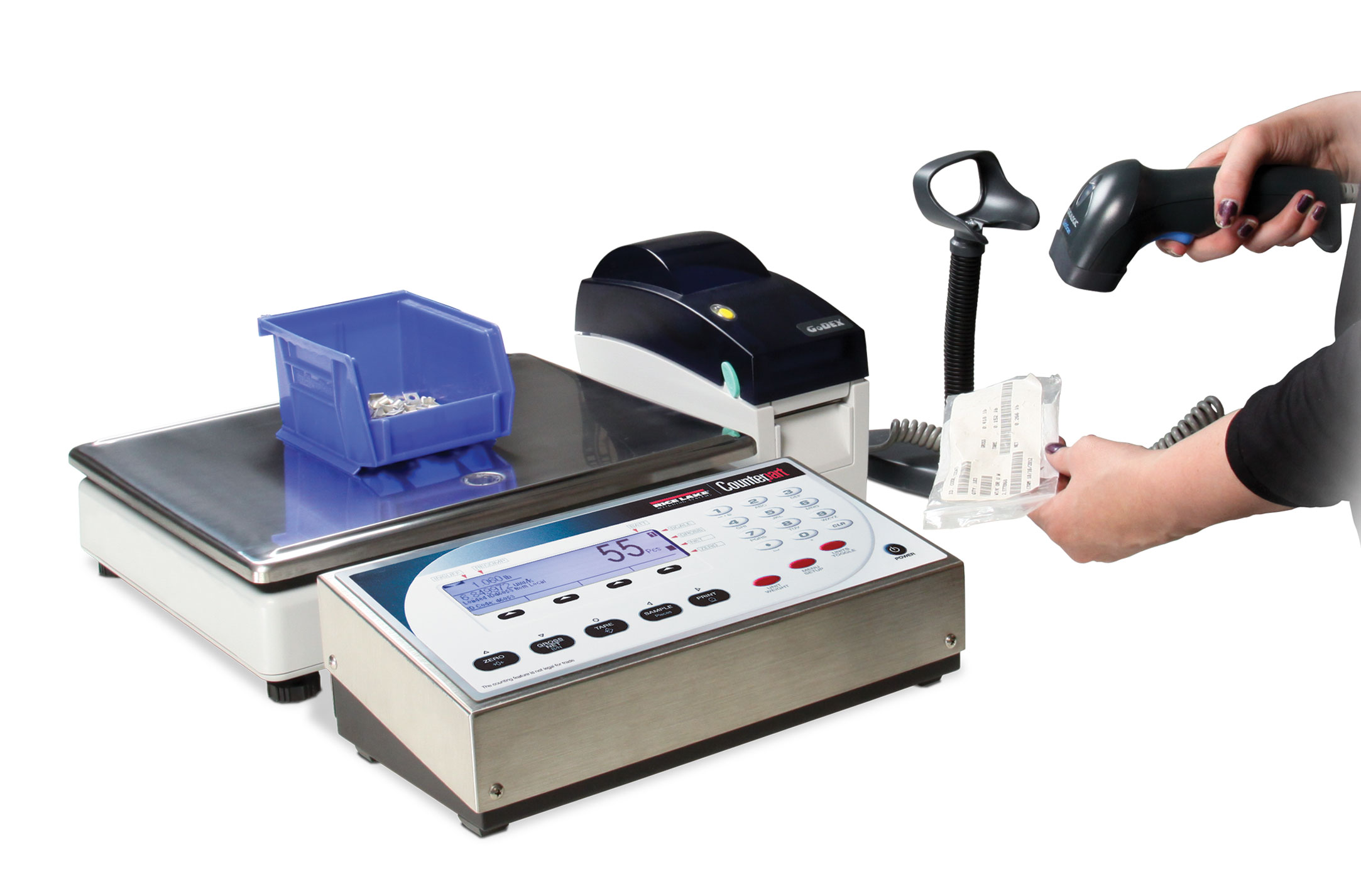

Unlike traditional counting scales, Counterpart uses Rice Lake’s simple configuration method to adjust to the parameters and resolution of any attached scale base, whether a floor scale, bench scale, or laboratory balance. Counterpart also connects with most bar code scanners, label printers, and inventory management software, making it quite possibly the most versatile piece of equipment in any inventory setting.

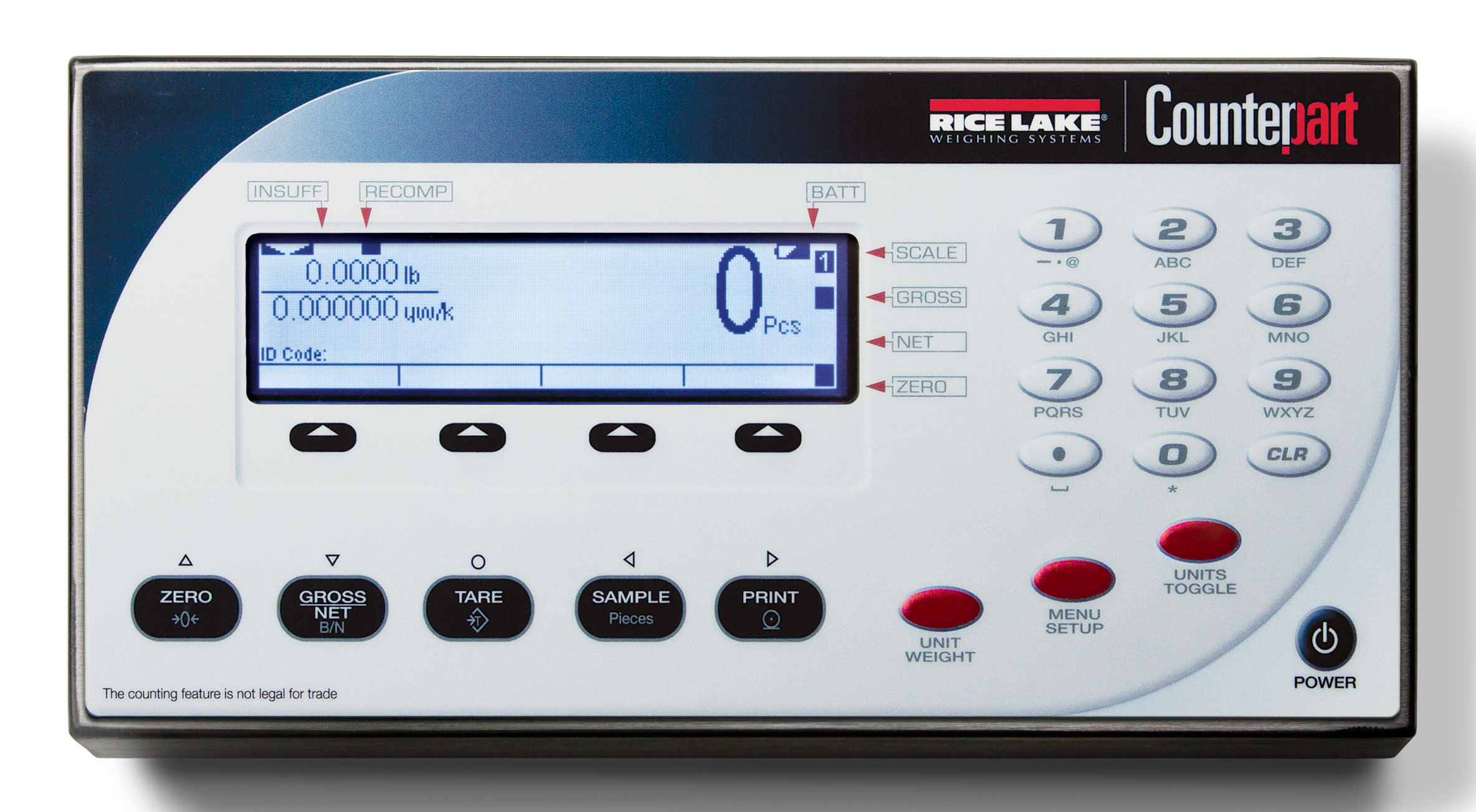

Rice Lake’s new configurable counting indicator does away with equipment learning curve. Users simply follow the keys left to right— zero, tare, and sample. View weight, piece weight, description and quantity all at the same time. And a ten-piece default sample is all that Counterpart ever requires.

While Counterpart was designed for operator simplicity, it also provides the high-end features necessary for better inventory control and record keeping. Onboard Ethernet allows for connection to a PC where WeighVault® software for Counterpart can take your data storage and reporting capabilities to new heights.

Counterpart can be purchased separately for operating one or more scale bases, or as part of a complete scale base and indicator package.

Power Source:
Input: 100 to 240 VAC, 47 to 63 Hz, 5 watts, U.S. power cord
Output: 9 to 12 V, 1.5 A max

Excitation Voltage:
5 VDC

Analog Signal Input Range:
0 to 4.5 mV/V

Analog Specifications:
Grad minimum: .3 μV/grad
Input sensitivity: 1.5 μV/grad recommended
Zero adjustment range: 0 to 100% or per region settings
A/D conversion rate: 7.5, 15, 30 samples per second
Load cells per scale: 8 x 350 ohms; 16 x 700 ohms
Scale channels: 1 or 2
Linearity: ±0.017 full scale

Circuit Protection:
RFI, EMI, ESD protection

Digital I/O:
Four

Display:
Viewing area: 240 × 64 pixels, transmissive VGA liquid crystal display (LCD) with adjustable contrast

Keypad:
24 buttons, full keypad (alpha numeric)

Resolution:
Weight display resolution: up to 100,000 graduations
Counting resolution: 1/1,000,000

Communications and Setpoint:
Two RS-232 ports support up to 115,200 bps
20 mA
Ethernet port
Setpoint output

Status Annunciators:
PCS, motion, low battery, insuff, recomp, scale number, gross, net, zero

Units of Measure:
Pounds, kilograms, grams, ounces

Prints:
Standard EPL label format; format is changeable to work with virtually any printer

Optional Battery:
Type: Lithium-ion
Charge time: 6 to 8 hours
Charge cycles: 400 to 1,200
Estimated runtime: 24 to 32 hours with one 350 ohms load cell base

Operating Temperature:
32 °F to 104 °F (0 °C to 40 °C)

Operating Humidity:
85%

Physical Dimensions:
(L × W × H)
Indicator only
12.25 × 6.25 × 4.0 in
(311.15 × 158.75 × 101.6 mm)

Warranty:
Two-year limited

Approvals:
NTEP Certified CC 12-110
CE Marked
UL Listed
Measurement Canada Approved

Counterpart Configurable Counting Indicator Dimensions

Dimensions
A 12.3 in (312.4 mm) C 3.94 in (100 mm)
B 6.17 in (156.7 mm)

Resources / Downloads

Title View Email Category Type
It's What's Inside That Counts View Email Articles

Title Download Email
Counterpart Catalog Page Download Email

Title Version Revision Download Email Category Archived
Counterpart Counting Scale Indicator 2.5 G Download Email No
WeighVault for Counterpart Installation Instructions Download Email Software|Counting Scales No
WLAN Option Installation Addendum for CW-90/90X, 720i, 820i, iQUBE2, LaserLT and Counterpart A Download Email Indicator Hardware|Indicators / Controllers|Indicator Hardware/Options No
WeighVault Counterpart Technical Manual A Download Email Software|Counting Scales No

Title Download Email
Counterpart Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Counterpart Configurable Counting Indicator Collateral Wizard Request Download Email Counting Scales
Rice Lake Weight Indicator Product Guide Request Download Email Indicators / Controllers|Weight Indicators
Rice Lake Indicator Family Matrix Request Download Email Indicators / Controllers

Title Version Size Release Date Download Email
Counterpart Firmware v2.05 2.05.00 337.8 KB 03/04/2015 Download Email
Counterpart Firmware v1.01 1.01.00 297 KB 09/30/2011 Download Email

Title View Download Email Category
Counterpart Part 1: Overview View Download Email Counting Scales
Counterpart Part 2: Features View Download Email Counting Scales
Counterpart Part 3: Counting Functionality & Communications View Download Email Counting Scales|Bulk Indicators/Controllers
Counterpart Part 4: Options View Download Email Counting Scales|Bulk Indicators/Controllers
Counterpart Part 5: System Designs View Download Email Counting Scales|Bulk Indicators/Controllers
Counterpart Part 6: Configuration View Download Email Counting Scales|Bulk Indicators/Controllers
Counterpart Part 7: Product Resources View Download Email Counting Scales|Bulk Indicators/Controllers
Counterpart Part 8: Demonstration View Download Email Counting Scales|Bulk Indicators/Controllers
Counterpart: Using Totalization Mode View Email Counting Scales
Counterpart: Adding a New ID View Email Counting Scales
Counterpart: Printing Alternate Labels View Email Counting Scales
Counterpart: Using WeighVault for In/Out Inventory View Email Counting Scales|Software
WeighVault for Counterpart Demonstration View Download Email Software

Parts

Counterpart Indicator Only

Part # Description List Price Cart
118788 Indicator, Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging

List Price: $1,050.00

120770 Indicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with US Power Cord and Packaging

List Price: $1,080.00

132429 Indicator,Counterpart Single A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging

List Price: $1,050.00

132431 Indicator,Counterpart Dual A/D, RS-232, Ethernet, Multi-ranging Power Supply with EU Power Cord and Packaging

List Price: $1,080.00

Single Channel with DIGI S-YC base system and bracket

Dual Channel with DIGI S-YC base system and bracket

Dual Channel with BenchMark base system and bracket

Options

Part # Description List Price Cart
124692 Battery OPT,CP Li-Ion

List Price: $310.00

53828 Cable,Multi Scale "Y" IQ9500 Counting Scale

List Price: $90.00

32375 CONN,Plug 14-Pin Male DIGI connector

List Price: $21.00

125062 Coverplate,Ethernet OPT Counterpart External Plate, Kit, Ethernet plug for welded cable

List Price: $21.00

130537 OPT,USB Host Card Counterpart USB Keyboard, RoHS Compliant

List Price: $160.00

179211 Keyboard,Microsoft USB Microsoft 600 USB Wired

List Price: $47.50

125079 Coverplate,DB9 Option 520, Counterpart Indicators.

List Price: $10.50

120767 Coverplate, 14 Pin Connector. Counterpart Counting Scale Indicator.

List Price: $15.75

125495 OPT,Wi-Fi Kit Counterpart Includes Antennae, Ethernet Board and access plate

List Price: $600.00

125546 LIT,USB WeighVault for Counterpart (English)

List Price: $265.00

118677 LIT,Technical Manual Counterpart Counting Scale Indicator (English)

List Price: $26.50

121459 Bracket OPT,Counterpart CP Front-mount Bracket and Mounting Screws Kit For BenchMark Scales. S-XL Bases.

List Price: $53.00

154700 Bracket Kit,OPT S-YC Counterpart Bracket And Mounting Screws

List Price: $53.00

121474 Cable,RS-232 5-Wire DB-9F to 6-position connector

List Price: $37.00

121501 Stand, Counterpart Indicator. Angled, Free Standing for Table Top.

List Price: $84.00

128063 Power Supply Assy,12V 15W 1.25A, Universal Input (90-264 VAC) Desktop Switching with IEC-320_C14 connector and EMI/RFI Ferrite Clamp

List Price: $58.00

15438 Power Cord,Detachable 18 AWG,7-1/2' Long,SVT Cord Black

List Price: $20.00

Printers/Cables

Scanners

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
