Coupling Nuts

  • Heavy hex

Important: Read "Load Cell Mounting Hardware Safety Guidelines"

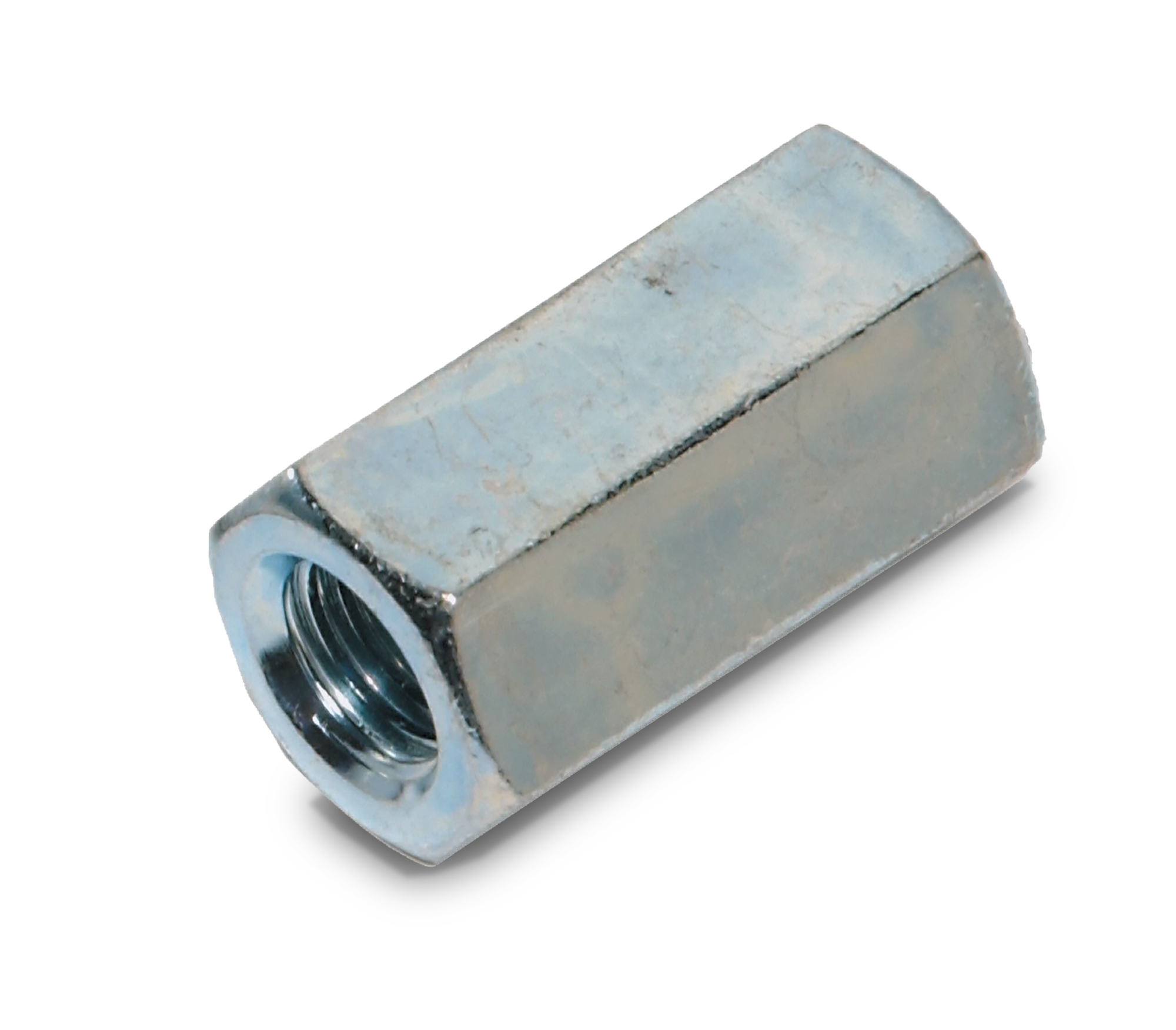

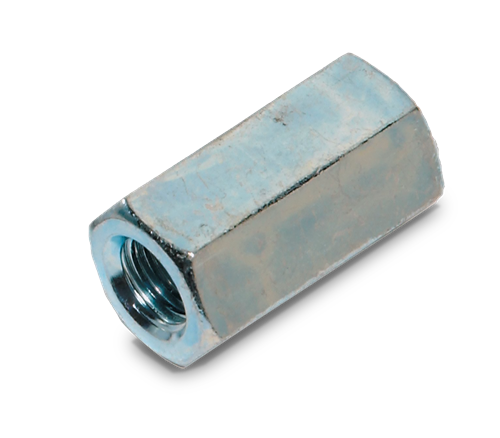

Coupling nuts are long nuts used to connect pieces of threaded rod or other male threaded fasteners.



Part# Thread Size Length Flat Safe Load*
14638 1/4-20 UNC 1.75 in 0.44 in 500 lb
14650 3/8-16 UNC 1.75 in 0.62 in 1,500 lb
14663 1/2-13 UNC 1.75 in 0.87 in 3,000 lb
14681 5/8-11 UNC 2.12 in 1.06 in 7,500 lb
14691 3/4-10 UNC 2.25 in 1.25 in 10,000 lb
*Do not exceed the safe load.





Resources / Downloads

Title Download Email
Coupling Nuts Catalog Page Download Email
Load Cell Mounting Hardware Safety Guidelines Download Email

Parts

Part # Description List Price Cart
14638 Nut,CPLG 1/4-20NCx1-3/4 7/16 Heavy HEX Width Across Flats=7/16 Length=1-3/4 Steel Zinc Plated Minimum Tensile Strength=60000 Psi Safe Load=500 Lbs

List Price: $7.50

14650 Nut,CPLG 3/8-16NCx1-3/4 5/8 Heavy HEX Width Across Flats=5/8 Length=1-3/4 Steel Zinc Plated Minimum Tensile Strength=60000 Psi Safe Load=1500 Lbs

List Price: $7.40

14663 Nut,CPLG 1/2-13NCx1-3/4 7/8 Heavy HEX Width Across Flats=7/8 Length=1-3/4 Steel Zinc Plated Minimum Tensile Strength=60000 Psi Safe Load=3000 Lbs

List Price: $7.40

14681 Nut,CPLG 5/8-11NCx2-1/8. 1-1/16 Heavy HEX Width Across Flats=1-1/16 Length=2-1/8 Steel Zinc Plated Minimum Tensile Strength=60000 Psi Safe Load=7500 Lbs

List Price: $10.50

14691 Nut,CPLG 3/4-10NCx2-1/4 1-1/4 Heavy HEX Width Across Flats=1-1/4 Length=2-1/4 Steel Zinc Plated Minimum Tensile Strength=60000 Psi Safe Load=10000 Lbs

List Price: $11.50

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
