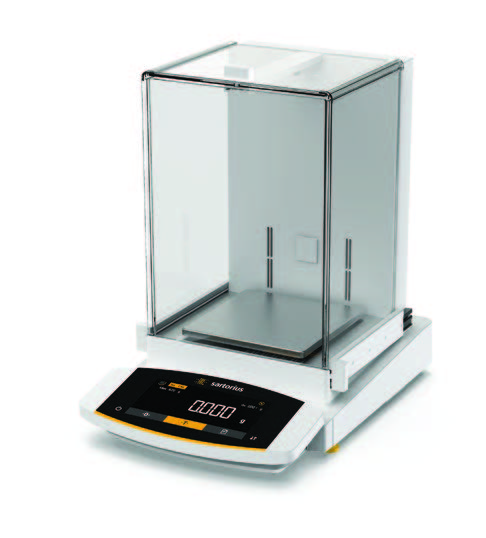

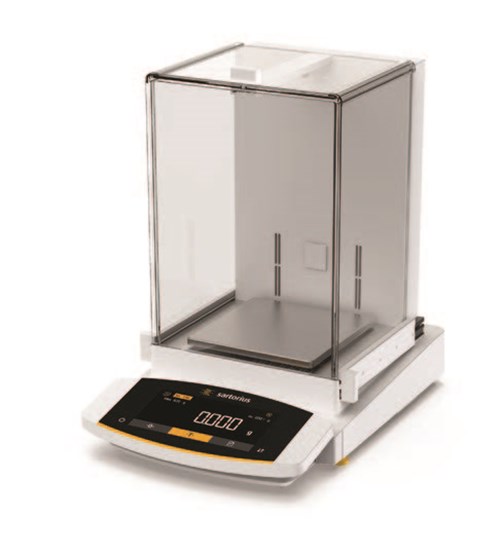

Cubis® II Series MCE, Sartorius Precision Balance
- State-of-the-art, TFT touchscreen operation
- Modular design
- User configurable and custom designed to meet changing applications
- Meets advanced Pharma compliance including user/password management for security, audit trail function logs and integrated alibi memory
- RS-232 and USB communication
- Easy cleaning by removing glass doors
- Manual glass draft shield
- Underweigh hook
Cubis II Series MCE, Sartorius Precision Specifications
| Weighing Units: Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Troy Ounce, Grain, Newton Pound/Ounce, Micrograms (See technical manual for complete listing) Operating Modes: Mass Unit Conversion, SQ Min Function, ISO-Cal Function, Density Determination (Buoyancy method only with MSE), Calculation, Averaging, Formulation, Percent Weighing, Totalizing, Counting, Customized Identification, Statistics, Time Control Function, Second Tare Memory, Over/Under Checkweighing |
Power: 120 V AC adapter (auto ranging) Stabilization Time: 3203S, 2203S, 2203P, 1203S, 5203S, 5203P: 1 second 623S, 623P, 323S: 0.8 seconds Calibration Weight: 3203S, 2203S: 2,000 g 2203P, 1203S: 1,000 g 5203S, 5203P: 500 g 623S, 623P: 500 g 323S: 200 g |
Operating Temperature: 5 °C to 40 °C (41 °F to 104 °F) Est. Weight: 17 lb Warranty: Ten-year limited Return Policy: Sartorius standard policy - restock fee may apply |
Cubis II Series MCE, Sartorius Precision Models
| Model | Capacity | Readability | Repeatability | Linearity | Pan Size | Dimensions | Part # |
|---|---|---|---|---|---|---|---|
|
MCE323S |
320 g |
1 mg |
0.7 mg |
2 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195709 |
|
MCE623P |
150 g |
1 mg |
1 mg |
5 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195808 |
|
MCE623S |
620 g |
1 mg |
0.7 mg |
2 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195707 |
|
MCE5203P |
5,200 g |
5 mg |
1 mg |
5 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195807 |
| MCE5203S |
5,200 g |
1 mg |
1 mg |
5 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195706 |
| MCE1203S |
1,200 g |
1 mg |
0.7 mg |
2 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195705 |
| MCE2203P |
1,010 g |
1 mg |
1 / 6 mg |
5 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195806 |
| MCE2203S |
2,200 g |
1 mg |
1 mg |
3 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195704 |
| MCE3203S |
3,200 g |
1 mg |
1 mg |
5 mg |
5.5 × 5.5 in |
16 × 9.8 × 11 in |
195703 |
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 195709 | Balance,MCE323S-2S00-E Sartorius, Cubis II, 320g x 1mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $6,600.00 |
|
| 195808 | Balance MCE623P-2S00-E Sartorius, Cubis II, 150g/300g/620g x 1/2/5mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $6,750.00 |
|
| 195707 | Balance,MCE623S-2S00-E Sartorius, Cubis II, 620g x 1mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $7,650.00 |
|
| 195807 | Balance MCE5203P-2S00-E Sartorius, Cubis II, 1,200g/2,400g/5,200g x 1/2/5mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $12,600.00 |
|
| 195706 | Balance,MCE5203S-2S00-E Sartorius, Cubis II, 5200g x 1mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $13,200.00 |
|
| 195705 | Balance,MCE1203S-2S00-E Sartorius, Cubis II, 1200g x 1mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $9,750.00 |
|
| 195806 | Balance MCE2203P-2S00-E Sartorius, Cubis II, 1,010g/2,200g x 1/10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $10,725.00 |
|
| 195704 | Balance,MCE2203S-2S00-E Sartorius, Cubis II, 2200g x 1mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $11,100.00 |
|
| 195703 | Balance,MCE3203S-2S00-E Sartorius, Cubis II, 3200g x 1mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply |
List Price: $11,200.00 |
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 156906 | Power Supply,100-240V Sartorius 6971987 |
List Price: $260.00 |
|
| 156908 | Cord,Power 220V EU Sartorius 6900900 |
List Price: $50.00 |
|
| Consult | DA, DR, DI, or DU: Other draft shields available |
Call for price |
|
| Consult | IP Additional RS-232, nine-pin connection with PS2 port (factory installed) |
Call for price |
|
| Consult | IR: Additional RS-232, 25-pin connection (factory installed) |
Call for price |
|
| Consult | TR: Certificate of compliance and full factory test report (factory installed) |
Call for price |
