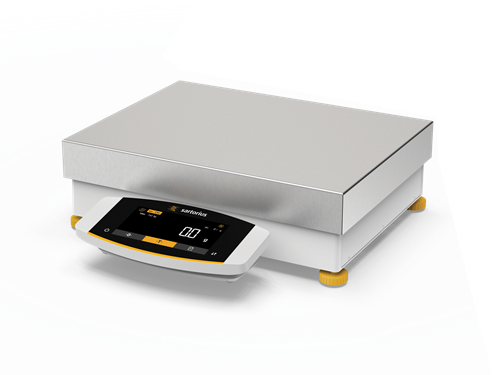

Cubis II Series MCE, Sartorius Toploader Balances

  • Fast stabilization time
  • Modular design
  • User-configurable and custom designed to meet changing applications
  • Meets advanced Pharma compliance including user/password management for security, audit trail function logs and integrated alibi memory
  • RS-232 and USB communication
  • Underweigh hook included
  • Choice of display
  • MCE - State-of-the-art, TFT touchscreen operation

Options

  • Bluetooth® wireless technology

Weighing Units:
Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Troy Ounce, Grain, Newton Pound/Ounce, Micrograms (See technical manual for complete listing)

Operating Modes:
Mass Unit Conversion, SQ Min Function, ISO-Cal Function, Density Determination (Buoyancy method only with MSE), Calculation, Averaging, Formulation, Percent Weighing, Totalizing, Counting, Customized Identification, Statistics, Time Control Function, Second Tare Memory
Power:
120 V AC adapter (auto ranging)

Stabilization Time:
1202S, 2202S, 4202S, 5201S, 8201S, 12201S: 0.8 seconds
6202P, 6202S, 8202S, 10202S, 5202S, 14202S, 14202P: 1 second

Calibration Weight:
1202S: 1 kg
2202S, 4202S: 2 kg
5201S, 6202S, 8201S, 8202S: 5 kg
5202S: 5,000 g
10202S, 12201S, 14202S, 14202P: 10 kg
Operating Temperature:
5 °C to 40 °C (41 °F to 104 °F)

Est. Weight:
21 lb

Warranty:
Two-year limited

Return Policy:
Sartorius Standard Policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

MCE1202S

1,200 g

10 mg

7 mg

20 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195723

MCE2202S

2,200 g

10 mg

7 mg

20 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195722

MCE4202S

4,200 g

10 mg

7 mg

20 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195721

MCE5201S

5,200 g

100 mg

50 mg

100 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195726

MCE5202S

5,200 g

0.01 mg

0.006 g

0.01 g

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195816

MCE6202P

1,500 g / 3,000 g / 6,200 g

10 mg / 20 mg
/ 50 mg

7 mg / 20 mg
/ 1940 mg

20 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195815

MCE6202S

6,200 g

10 mg

7 mg

20 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195720

MCE8201S

8,200 g

100 mg

50 mg

100 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195725

MCE8202S

8,200 g

10 mg

7 mg

20 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195719

MCE10202S

10,200 g

10 mg

7 mg

20 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195718

MCE12201S

12,200 g

100 mg

50 mg

200 mg

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195724

MCE14202S

14,200 g

0.01 g

0.01 g

0.03 g

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195717

MCE14202P

3,500 g / 7,000 g / 14,200 g

0.01 g / 0.02 g
/ 0.05 g

0.01 g / 0.02 g
/ 0.01 g

0.05 g

8.1 x 8.1 in
(206 x 206 mm)

16 x 9.8 x 3.5 in
(410 x 249 x 87.7 mm)

195812



Resources / Downloads

Title Download Email
Sartorius Cubis II Series MCE Toploader Balance, Catalog Page Download Email

Parts

Part # Description List Price Cart
195723 Balance,MCE1202S-2S00-0 Sartorius, Cubis II, 1,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $4,215.00

195722 Balance,MCE2202S-2S00-0 Sartorius, Cubis II, 2,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $4,675.00

195721 Balance,MCE4202S-2S00-0 Sartorius, Cubis II, 4,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $5,130.00

195726 Balance,MCE5201S-2S00-0 Sartorius, Cubis II, 5,200g x 0.1g, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $3,505.00

195816 Balance MCE5202S-2S00-R Sartorius, Cubis II, 5200g x 0.01g TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $6,490.00

195815 Balance MCE6202P-2S00-0 Sartorius, Cubis II, 1,500g/3,000g/6,200g x 0.01/0.02/0.05g TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $5,305.00

195720 Balance,MCE6202S0-S00 Sartorius, Cubis II, 6,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $5,915.00

195725 Balance,MCE8201S-2S00-0 Sartorius, Cubis II, 8,200g x 0.1g, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $4,740.00

195719 Balance,MCE8202S-2S00-0 Sartorius, Cubis II, 8,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $6,680.00

195718 Balance,MCE10202S-2S00-0 Sartorius, Cubis II, 10,200g x 10mg, TFT Touch Display, Manual Leveling With Digital Assist, 100-240V Power Supply

List Price: $7,730.00

195724 Balance,MCE12201S-2S00-0 Sartorius, Cubis II, 12,200g x 0.02g, TFT Touch Display, Manual Leveling With Digital Assist, 100-240V Power Supply

List Price: $5,245.00

195717 Balance,MCE14202S-2S00-0 Sartorius, Cubis II, 14,200g x 10mg, TFT Touch Display, Manual Leveling With Digital Assist, 100-240V Power Supply

List Price: $9,485.00

195812 Balance MCE14202P-2S00-0 Sartorius, Cubis II, 3,500g/7,000g/14,200g x 0.01/0.02/0.05g TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $8,185.00

Options

Part # Description List Price Cart
156906 Power Supply,100-240V Sartorius 6971987

List Price: $210.00

156908 Cord,Power 220V EU Sartorius 6900900

List Price: $43.00

Consult TR: Certificate of compliance and full factory test report (factory installed)

Call for price

Consult IR: Additional RS-232, 25-pin connection (factory installed)

Call for price

Consult IB: Bluetooth® wireless interface (factory installed)

Call for price

Consult IP: Additional RS-232, 9-pin connection with PS2 port (factory installed)

Call for price
