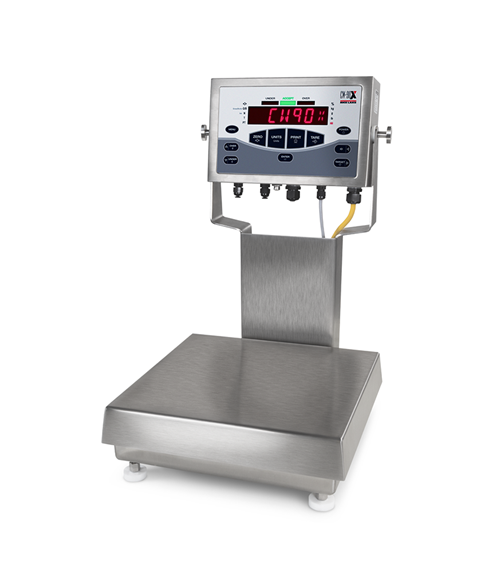

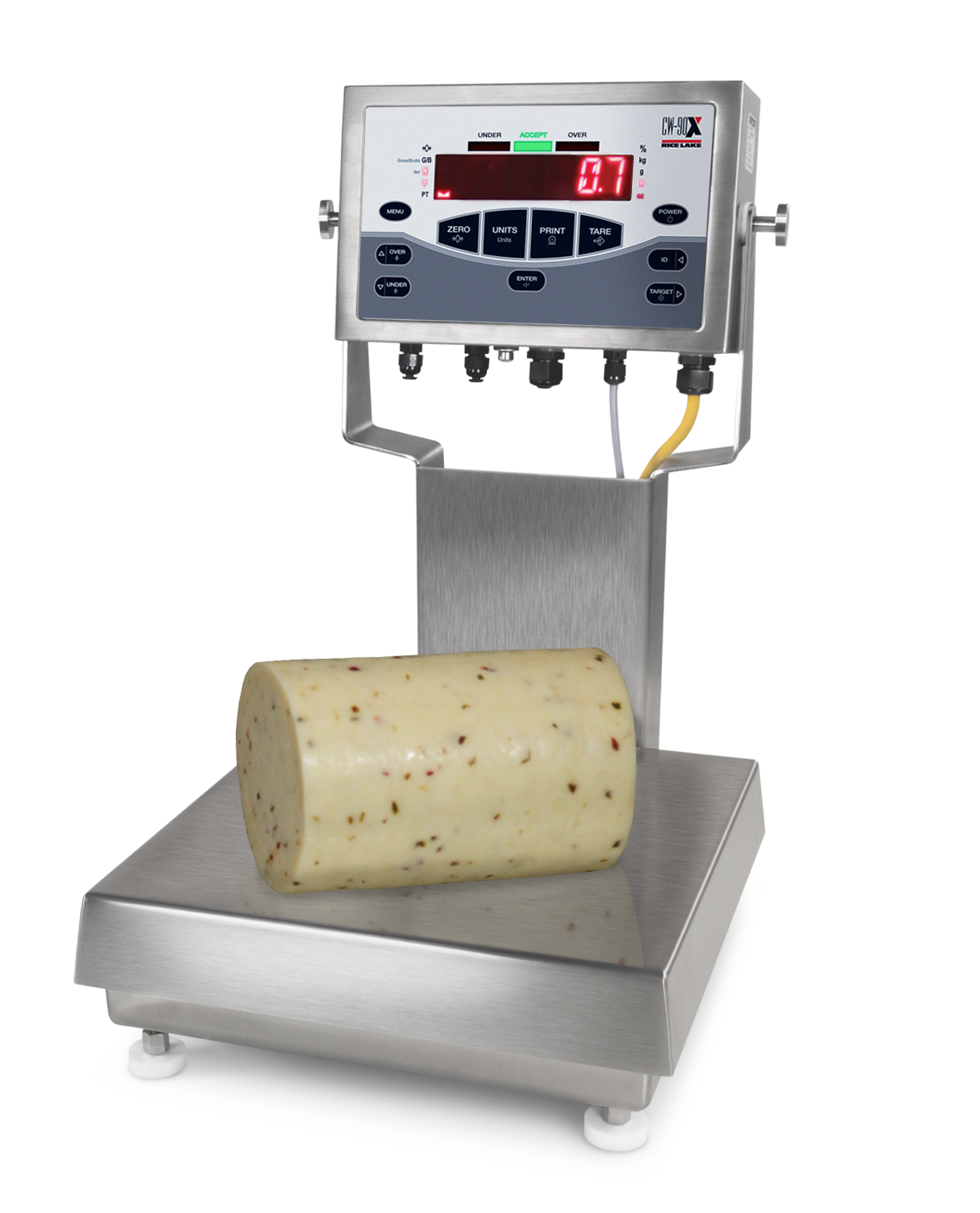

CW-90X Over/Under Washdown Checkweigher

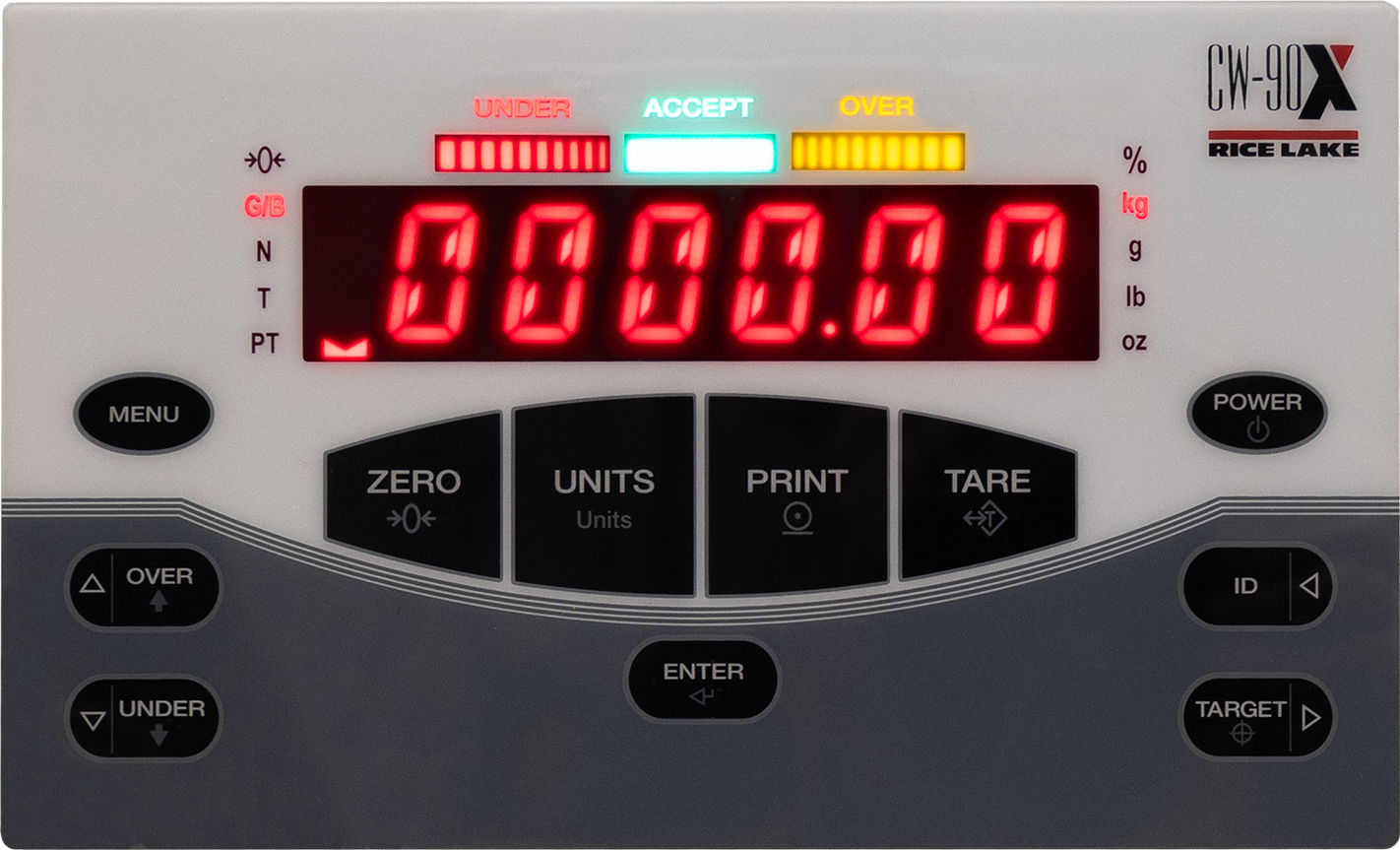

  • Piezo keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, ENTER, MENU, POWER

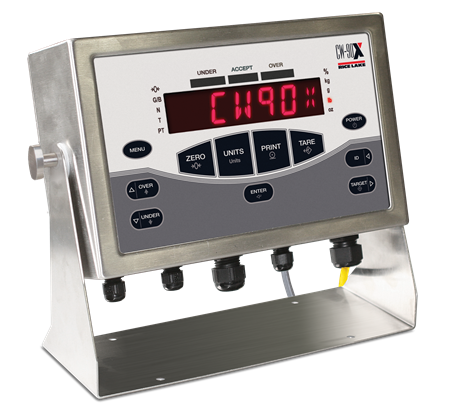

  • 304 stainless steel, IP69K rated indicator

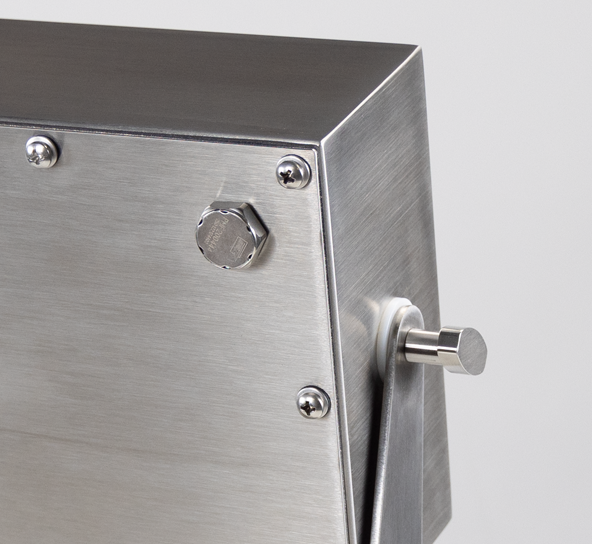

  • PreVent™ breather vent
  • Storage for up to 50 IDs
  • Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
  • High-intensity LED display
  • Battery backed time and date
  • Two full-duplex RS-232 serial ports
  • Configurable print formats
  • Audit trail tracking
  • Optional communications: Ethernet, USB or Fiber-optic
  • Four configurable Digital I/O
  • Reflash memory to upgrade firmware
  • Auto print capability
  • Accumulator
  • Factory Calibrated

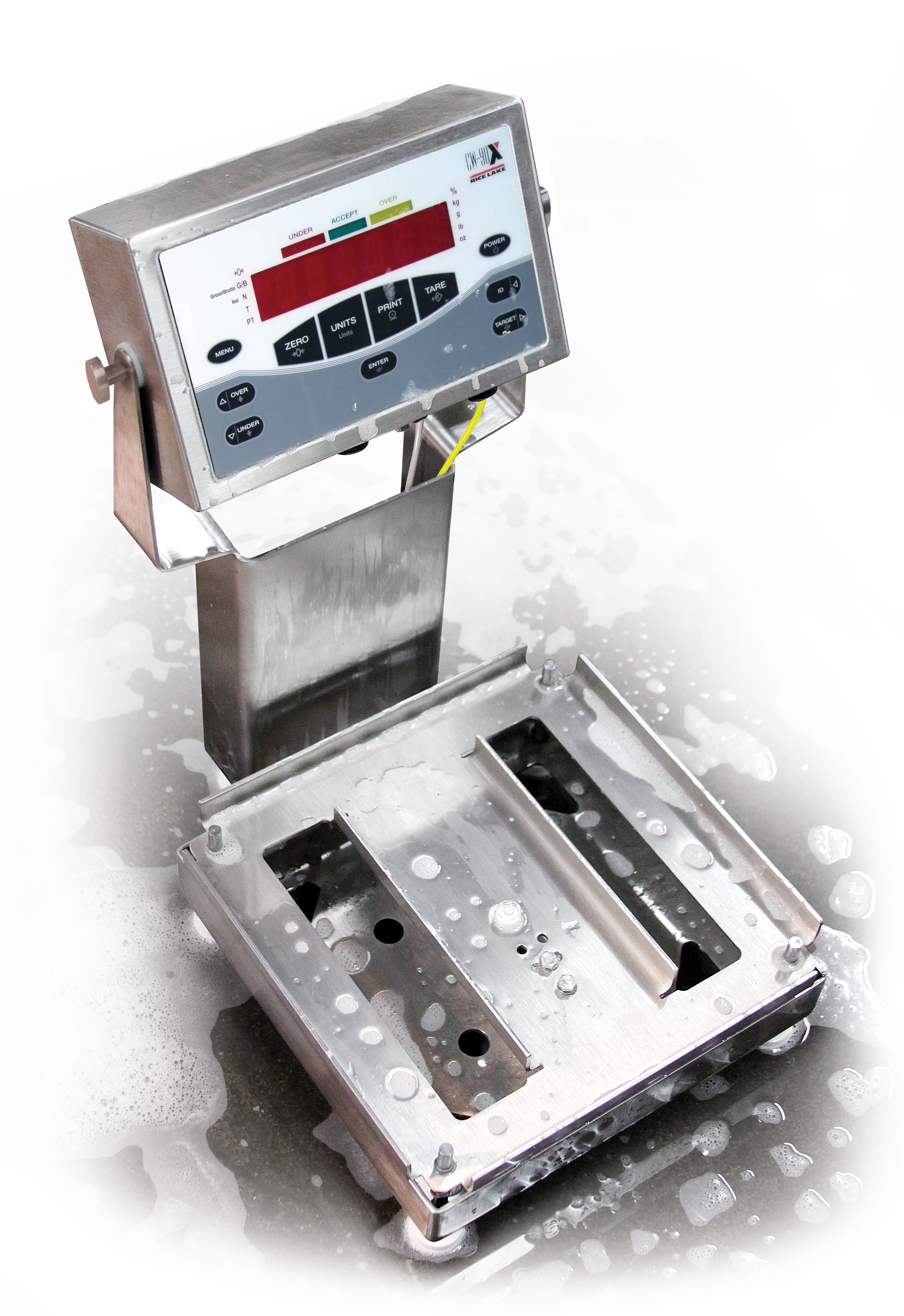

Scale Base:
  • IP69K, stainless steel, hermetically sealed load cell
  • 304 stainless steel
  • Meets HACCP requirements
  • Five point overload protection

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo CUL LOGO Measurementcanada Approved BW CE Mark LOGO EU Legalfortrade Symbol Forcatalog LOGO NSF CMYK

WARNING: Cancer and Reproductive Harm California Proposition 65

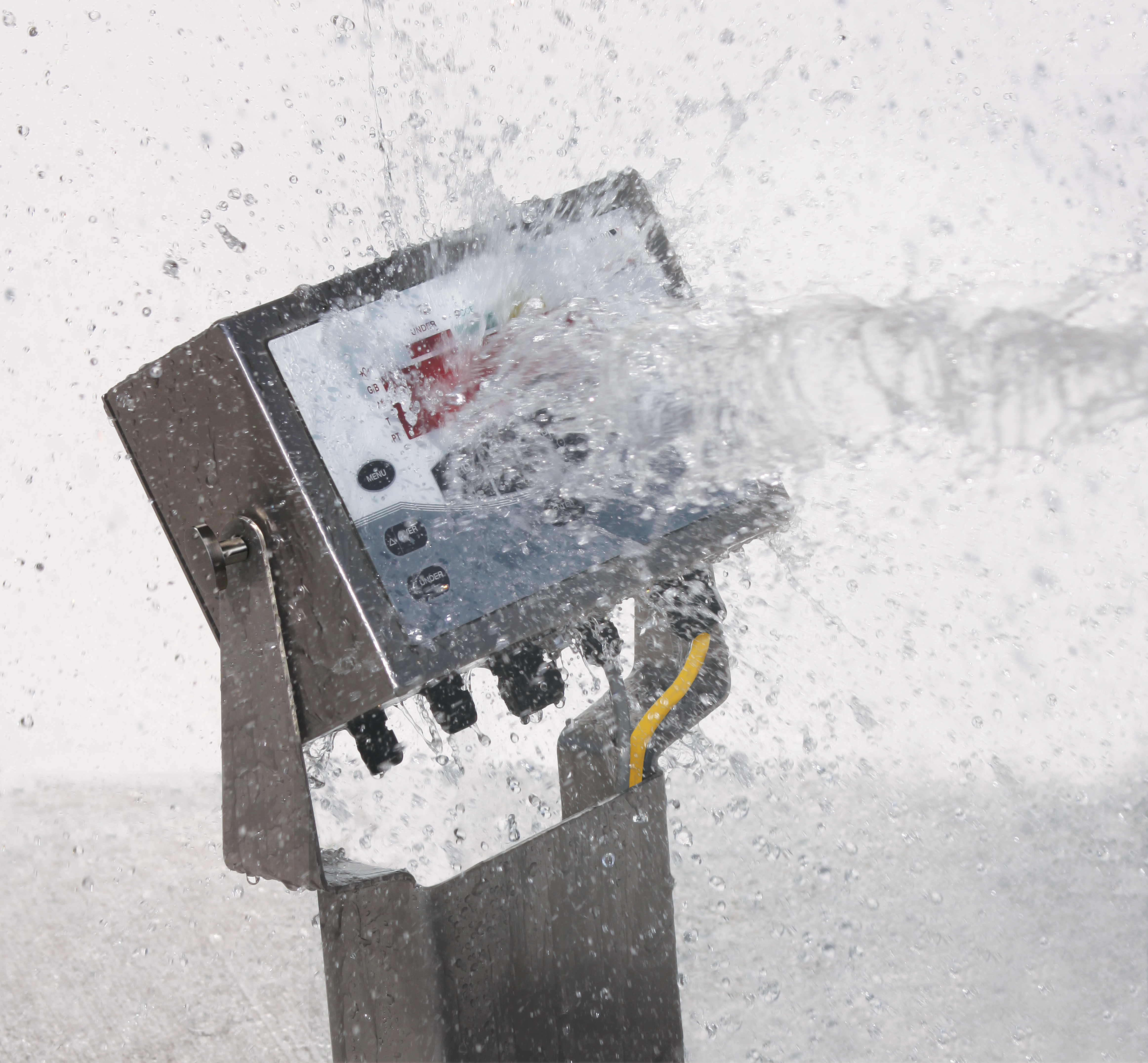

Performance Under Extreme Pressure

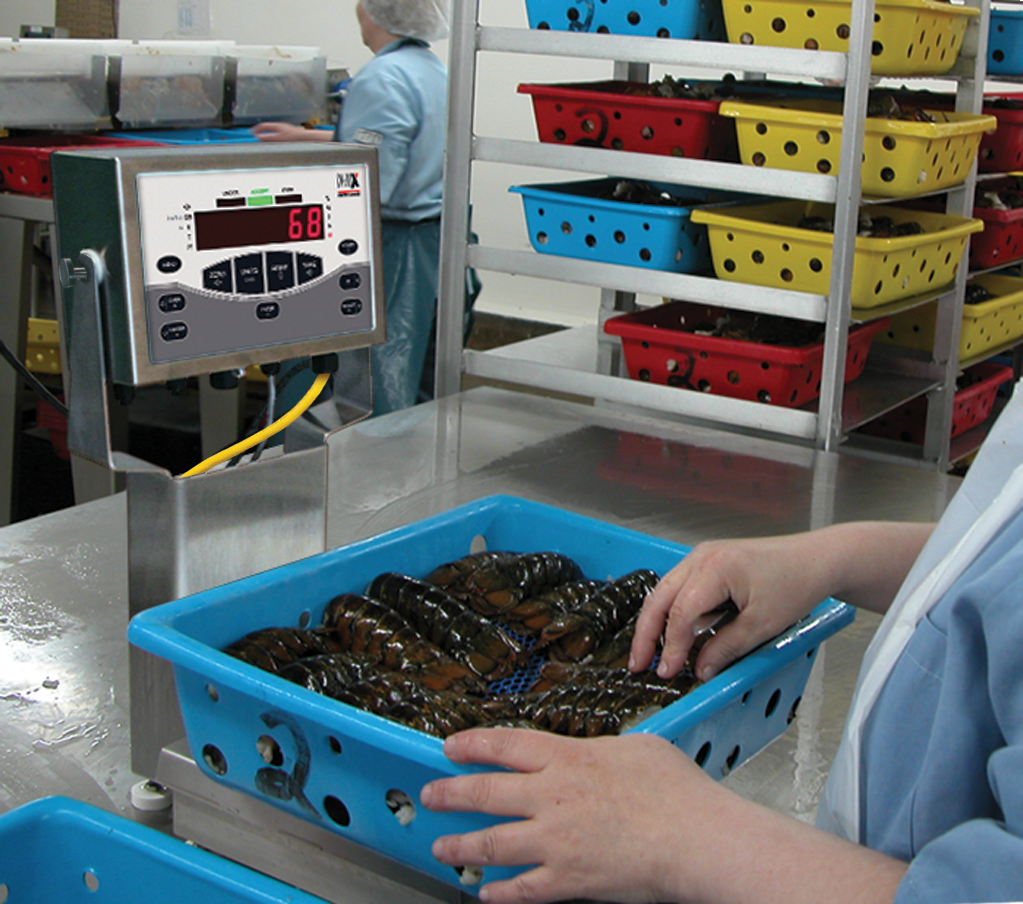

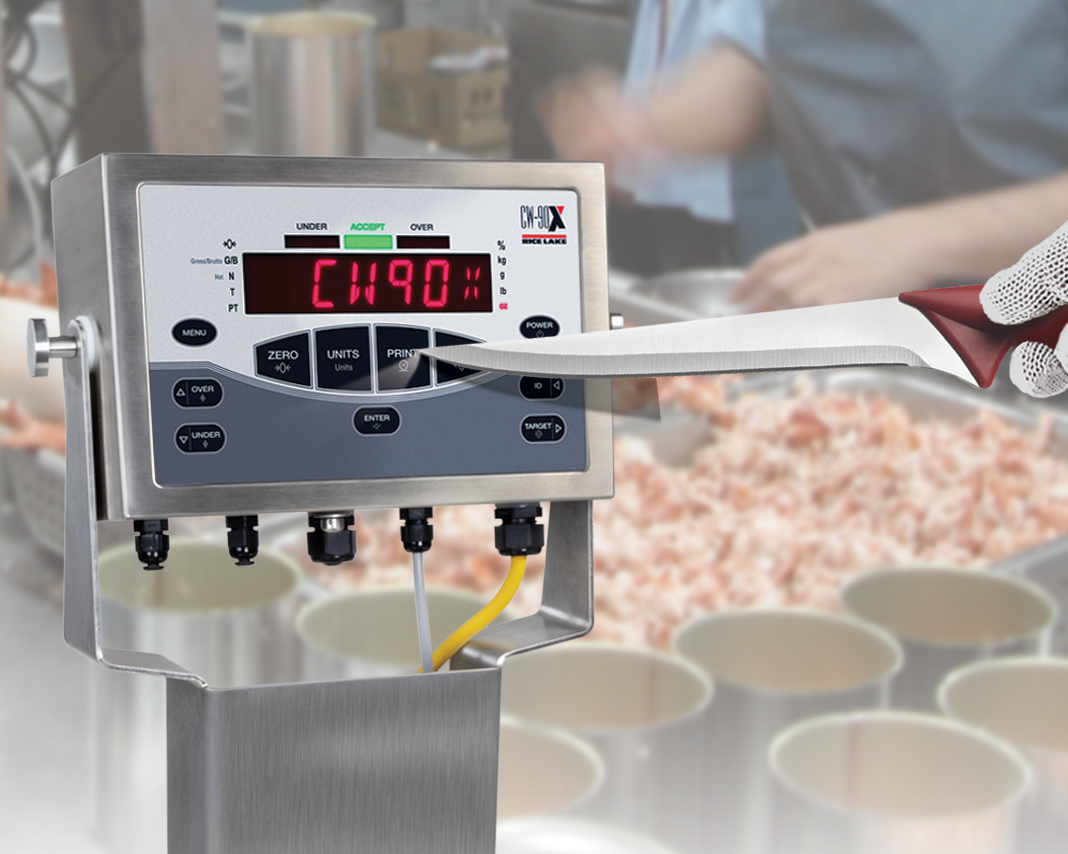

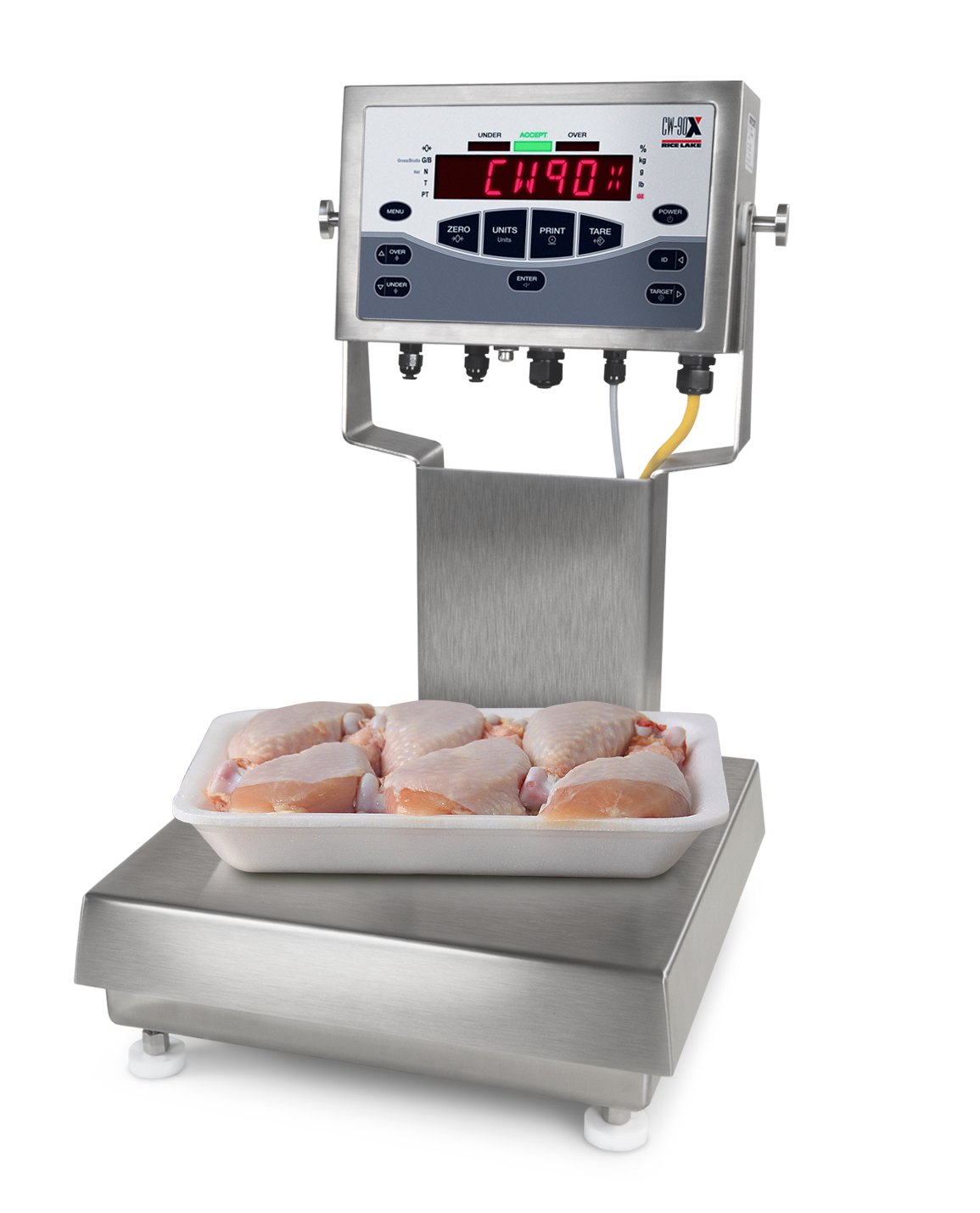

For heavy washdown environments and HACCP requirements, choose Rice Lake's CW-90X checkweigher. The CW-90X features the toughest keypad available. This rigid piezo device is made to withstand sharp knife-point contacts, and is resistant to most contaminants and liquids.

The configuration menu of the CW-90X is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator's needs. The CW-90X will store detailed information for up to 50 separate IDs (expandable with WeighVault), allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

Power - AC:
Line voltages:
115/230 VAC
Frequency:
50/60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)

Measurement Rate:
960,480, 240, 120, 60, 30, 15, 7.5 per second

System Linearity:
±0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Display:
Large 0.8 in, 14 segment, six digit high-intensity red
LED display

Status Annunciators:
Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion

Operating Temperature:
Legal: 14 ºF to 104 ºF (-10 ºC to 40 ºC)

Rating/Material:
IP69K, stainless steel

Display Resolution:
100,000 graduations maximum

Load Cell:
Stainless steel, hermetically sealed

Warranty:
Three-year limited

Approvals:
Indicator:
NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC11569
T10807
UL and CUL listed
CE marked
Scale:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF

Resources / Downloads

Title View Email Category Type
Ingredients of Success View Email Indicators / Controllers|Platform Scales Application Story
Red is Delicious View Email Indicators / Controllers|Checkweighers Application Story
The Food Safety Modernization Act and the Role of Scales in Food Processing View Email Articles

Title Download Email
CW-90X Checkweigher Catalog Page Download Email

Title Version Revision Download Email Category Archived
CW-90/90X Checkweigher Technical Manual 1 G Download Email Checkweighers|Indicators / Controllers|Weight Indicators No
CW-90/90X Checkweigher Firmware Update with Flash Magic Download Email Indicators / Controllers|Weight Indicators|Checkweighers No
WLAN Installation Instructions - CW-90/CW-90X/720i/820i/iQUBE²/LaserLT (Legacy Version) Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
WeighVault for CW-90/90X Installation Instructions Download Email Indicator Software|Indicators / Controllers|Weight Indicators|Checkweighers No
Lantronix MatchPort User Guide D Download Email Bench Scales|Platform Scales No
WLAN Option Installation Addendum for CW-90/90X, 720i, 820i, iQUBE2, LaserLT and Counterpart A Download Email Indicator Hardware|Indicators / Controllers|Indicator Hardware/Options No
CW-90/90X Checkweigh Indicator Overlay Replacement A Download Email Checkweighers|Indicators / Controllers|Weight Indicators No
WeighVault CW-90/90X Technical Manual A Download Email Software|Indicator Software|Weight Indicators|Checkweighers No

Title Download Email
CW-90/CW-90X Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
CW-90X Over/Under Checkweigher Request Download Email Bench Scales|Checkweighers|Indicators / Controllers
Washdown Solutions Request Download Email Washdown Scales
WeighVault Technical Sheet Download Email Checkweighers|Software
Cannabis Market Weighing Solutions: From Cultivation to Retail Request Download Email Retail Equipment|Checkweighers
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Request Download Email Washdown Scales|Bench Scales|Floor Scales|Checkweighers|In-Motion Checkweighers

Title Version Size Release Date Download Email
CW-90/90X Firmware v1.10 1.10.00 105.8 KB 11/28/2017 Download Email

Title View Email Category
Importance of Torque Recommendations for Assembly Download Email

Title View Download Email Category
CW-90/90X Software Overview View Email Indicators / Controllers|Checkweighers|Platform Scales|Washdown Scales
CW-90/90X Hardware Overview View Download Email Checkweighers|Platform Scales|Washdown Scales|Indicators / Controllers
WeighVault for CW-90 Demonstration View Download Email Checkweighers|Weight Indicators
Analog Output Setup and Testing View Download Email Discontinued Weight Indicators|Checkweighers

Parts

115 VAC

Part # Description List Price Cart
105963 CKWGHER, CW90X 10x10 5 lb/2.5 kg with 12 inch column 115VAC SST

List Price: $2,167.00

105965 CKWGHER, CW90X 10x10 10 lb/5 kg with 12 inch column 115VAC SST

List Price: $2,167.00

105966 CheckWeigher,CW90X 10x10 25 lb/10 kg with 12 inch column 115VAC SST

List Price: $2,167.00

105967 CheckWeigher,CW90X 12x12 25 lb/10 kg with 12 inch column 115VAC SST

List Price: $2,257.00

105968 CheckWeigher,CW90X 12x12 50 lb/25 kg with 12 inch column 115VAC SST

List Price: $2,257.00

105969 CKWGHER, CW90X 12x12 100 lb/50 kg with 12 inch column 115VAC SST

List Price: $2,257.00

230 VAC (CE marked/OIML approved)

230 VAC

Options

Part # Description List Price Cart
200578 Ind OPT,Ethernet Interface CW90, CW90X Straight through 10ft ethernet cable with PG11 cord grip

List Price: $440.00

206272 Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B 10/100 XPico for CW90,720i,iQube2

List Price: $570.00

95357 Cable,USB Type A To USB Mini-B 1 Meter Long

List Price: $11.00

171968 Cable,RS-232 5-Wire DB-9F to stripped and tinned leads

List Price: $39.00

96736 Ind Opt,Fiber-Optic Rx/Tx CW90, CW90X, 820i Internal Mount With Bus Power

List Price: $250.00

78026 Cable,Plastic Optical 100 ft. includes polishing kit

List Price: $175.00

80892 Cutter, Fiber Optic Disposable, .750 and 1.0mm single and duplex jacket Industrial Fiber Optics #IF-FC2

List Price: $12.00

117358 LIT,USB Weighvault for CW90X Version Software Package (English)

List Price: $250.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
