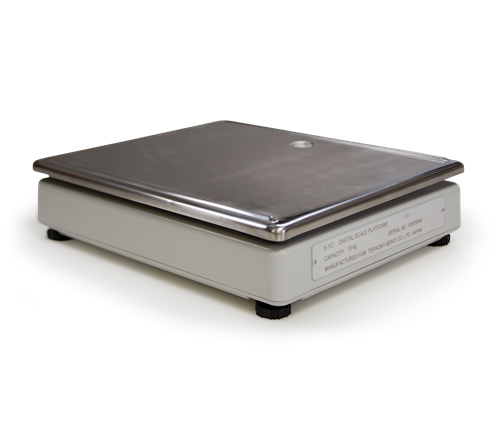

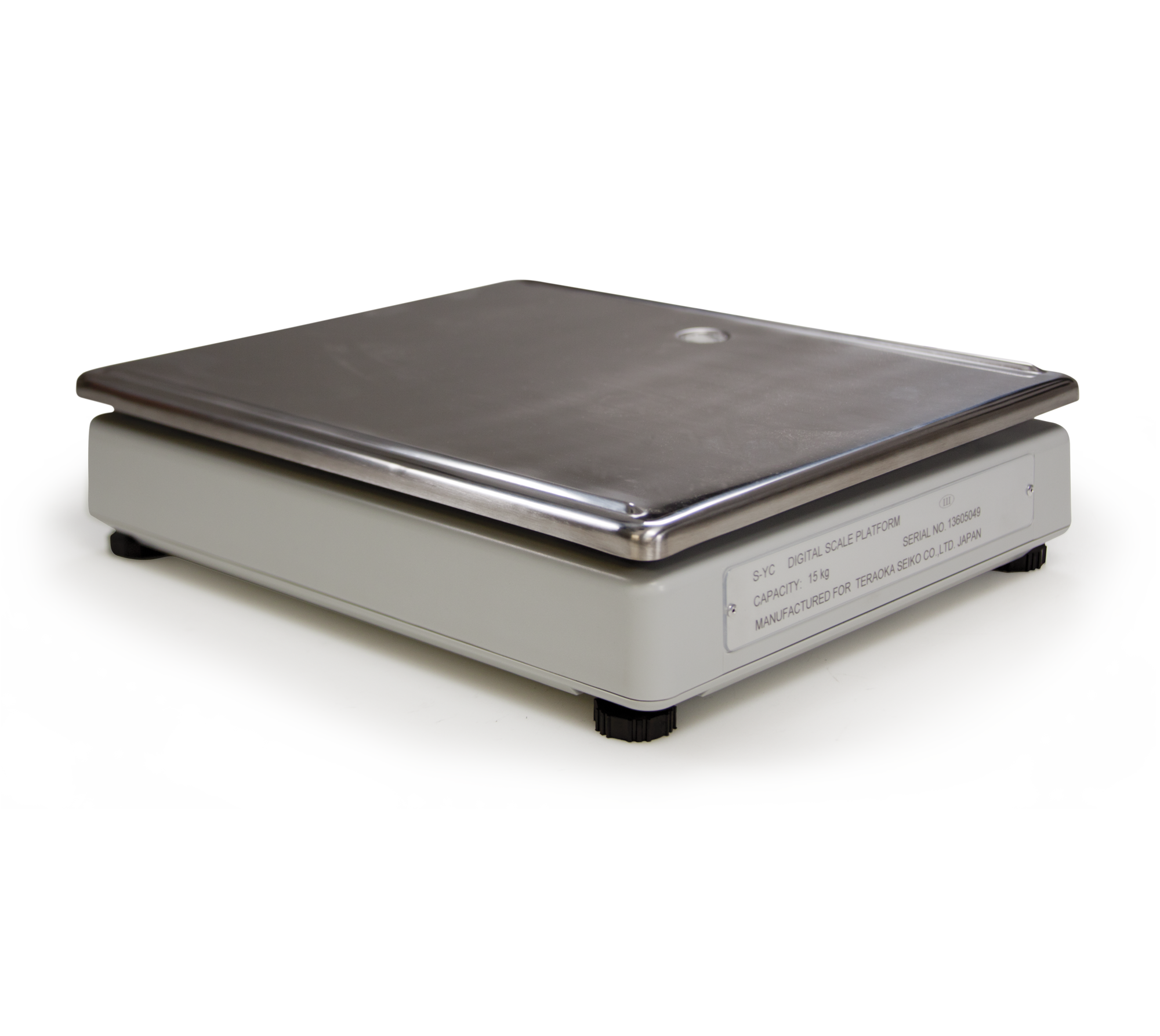

DIGI® S-YC Series Remote Scale Base Platforms

  • Stainless steel platter
  • ABS injection-molded plastic base
  • Single-point strain gauge load cell
  • Adjustable legs
  • Leveling bubble
  • 14-pin connector on three-meter cable

Durable Counting Scale

The DIGI S-YC Platform Series is constructed of durable ABS plastic and stainless steel, making it an ideal choice for industrial and food operations. The S-YC Series is easy to clean and endures tough applications. These platforms contain the highest quality load cells—extremely durable and able to withstand high overloads.

Output Impedance:
350 ±5 ohms

Insulation Resistance:
>500 Megohms

Rated Output:
1.0016 mV/V

Color Code:
Green + Output
Yellow – Output
Black Shield
White – Input
Red + Input

Load Cell Type:
K-Type DIGI cell

Load Cell Cable Length:
118 in (3 m)

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Two-year limited

Resources / Downloads

Title Download Email
DIGI S-YC Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
Counterpart Counting Scale Indicator 2.5 G Download Email No

Parts

Part # Description List Price Cart
154835 Base,S-YC 500g (1 lb) 7.9 x 5.6 in (201 x 143 mm) Platter, 3 m (118 in) Cable

List Price: $775.00

154836 Base,S-YC 1 kg (2.5 lb) 9.6 x 6.9 in (244 x 177 mm) Platter, 3 m (118 in) Cable

List Price: $775.00

154838 Base,S-YC 2.5 kg (5 lb) 13.4 x 11.1 in (341 x 284 mm) Platter, 3 m (118 in) Cable

List Price: $700.00

154839 Base,S-YC 5kg (10 lb) 13.4 x 11.1in (341 x 284 mm) Platter, 3 m (118 in) Cable

List Price: $700.00

154840 Base,S-YC 10kg (25 lb) 13.4 x 11.1 in (341 x 284 mm) Platter, 3 m (118 in) cable

List Price: $700.00

154841 Base,S-YC 25kg (50 lb) 13.4 x 11.1 in (341 x 284 mm) Platter, 3 m (118 in) Cable

List Price: $700.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
