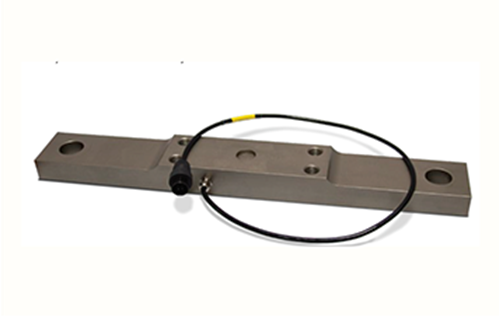

Dual Center Hanger Load Cell Mount Kit Alloy Steel, Hermetically Sealed

Request More Information
Dualcenterhangerloadcellkit

Full Scale Output:
0.25 mV/V at 12,500 lb

Output Resistance:
350 (nominal)

Input Resistance:
350 (nominal)

Material/Finish:
Alloy steel

Temperature:
14° F to 104° F (-10° C to 40° C)

Rated Excitation:
15 VDC (5-10 V recommended)

Non-linearity:
±0.1% full scale

Insulation Resistance:
500 megohms at 50 VDC

Seal Type:
Hermetically sealed, IP68

Cable Length:
32 in cable

Connector Type:
Conxall, 4-pin (male)

Connection Pin Out:
A - Excitation +
B - Signal +
C - Signal -
D - Excitation -

Warranty:
One-year limited warranty
