EL146, 4 Wire Load Cell Cable

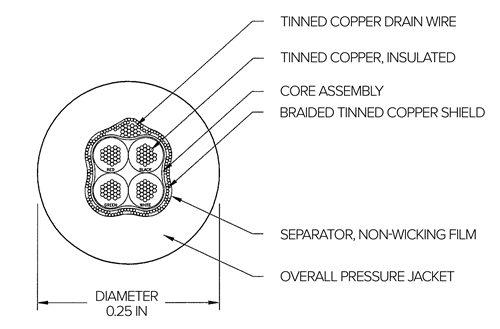

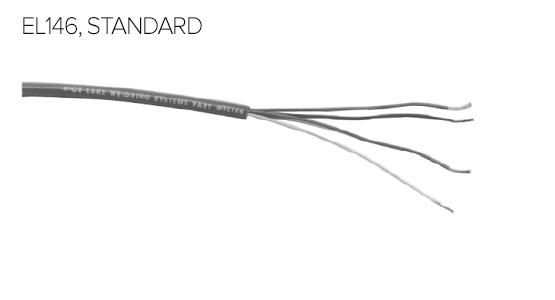

EL146 Standard Cable
- Four-wire load cell cable
- 20 AWG tinned copper wire stranded for flexibility
- Braided shielding is encased in red PVC
- All conductors are industry-standard color coded
- Diameter: 0.25 in
- Use the four-wire cable for repairing or extending existing cable
- Temperature rating: -22 °F to 126 °F (-30 °C to 80 °C)

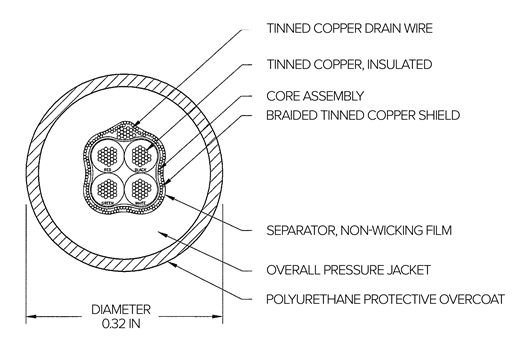

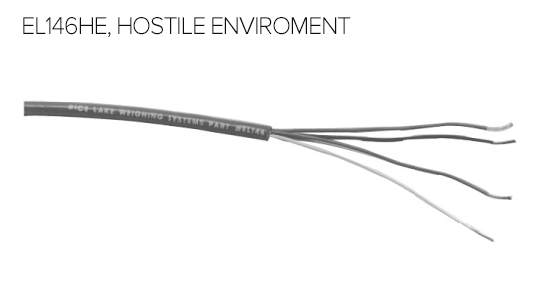

EL146HE Hostile Environment Cable
- Designed for use in hostile environments
- Polyurethane jacketing provides superior chemical and abrasion resistance
- RFI and EMI protected with foil overbraid shield
- Unmatched durability, yet extremely flexible
- All conductors are industry-standard color coded
- Diameter: 0.32 in
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- 500 V rating
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
EL146 Standard Cable Dimensions
| Part# | Continuous Roll | Description |
|---|---|---|
| 15505 | 100 ft | Four-conductor cable |
| 15506 | 250 ft | Four-conductor cable |
| 15507 | 500 ft | Four-conductor cable |
| 15508 | 1,000 ft | Four-conductor cable |
| 15493 | Custom Length | Four-conductor cable |
EL146 Hostile Environment Cable Dimensions
| Part# | Continuous Roll | Description |
|---|---|---|
| 15510 | 100 ft | Four-conductor hostile environment cable |
| 15511 | 250 ft | Four-conductor hostile environment cable |
| 15512 | 500 ft | Four-conductor hostile environment cable |
| 15513 | 1,000 ft | Four-conductor hostile environment cable |
| 15494 | Custom Length | Four-conductor hostile environment cable |
Resources / Downloads
Parts
EL146 Standard Cable
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 15505 | Cable,Load Cell 100ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $143.00 |
|
| 15506 | Cable,Load Cell 250ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $334.00 |
|
| 15507 | Cable,Load Cell 500ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $652.00 |
|
| 15508 | Cable,Load Cell 1000ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $1,075.00 |
|
| 15493 | Cable,Load Cell Custom EL146 4-Conductor per foot UL, CSA c UL approved |
List Price: $1.55 |
