EL147, 6 Wire Load Cell Cable

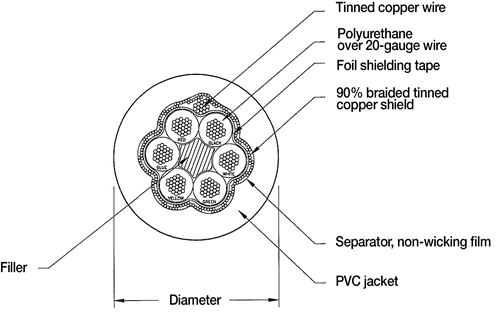

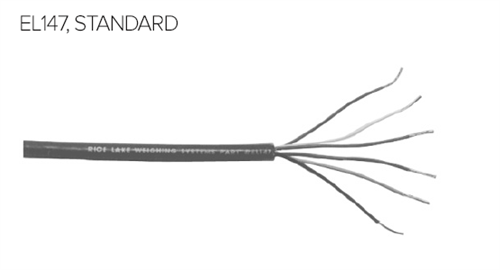

EL147 Standard Cable
- 20 AWG tinned copper wire stranded for flexibility
- Braided shielding is encased in red PVC
- All conductors are industry-standard color-coded
- Diameter: 0.29 in
- The six-wire cable is best suited for longer runs where remote sense lines can be used
- Temperature rating: -22 °F to 126 °F (-30 °C to 80 °C)

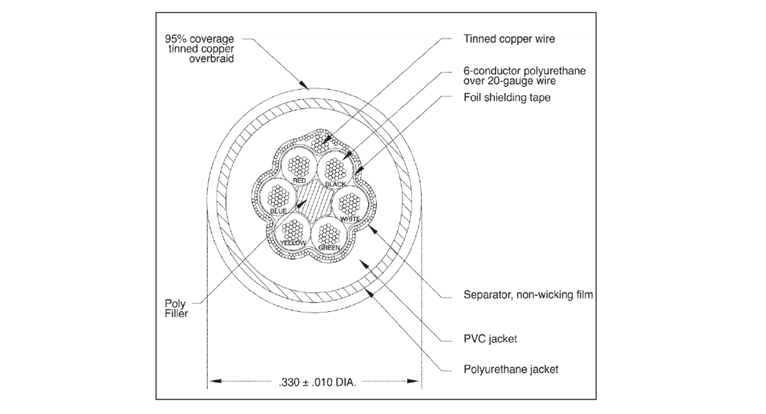

EL147RP Rodent Protection Cable
- Tinned copper overbraid provides superior rodent and abrasion deterrent
- Enhanced EMI/RFI protection
- Six-conductor industry-standard color-coded
- Ideal for truck and railroad-track scales
- Diameter: 0.33 in
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- Jacket coating enhanced with a chemical coating “NAW” that is distasteful to rodents

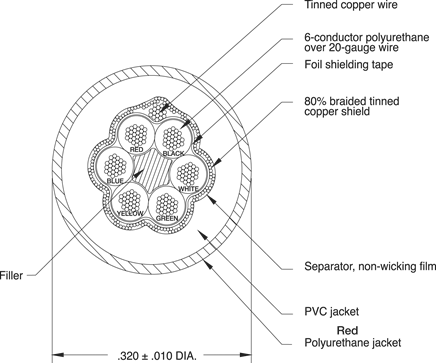

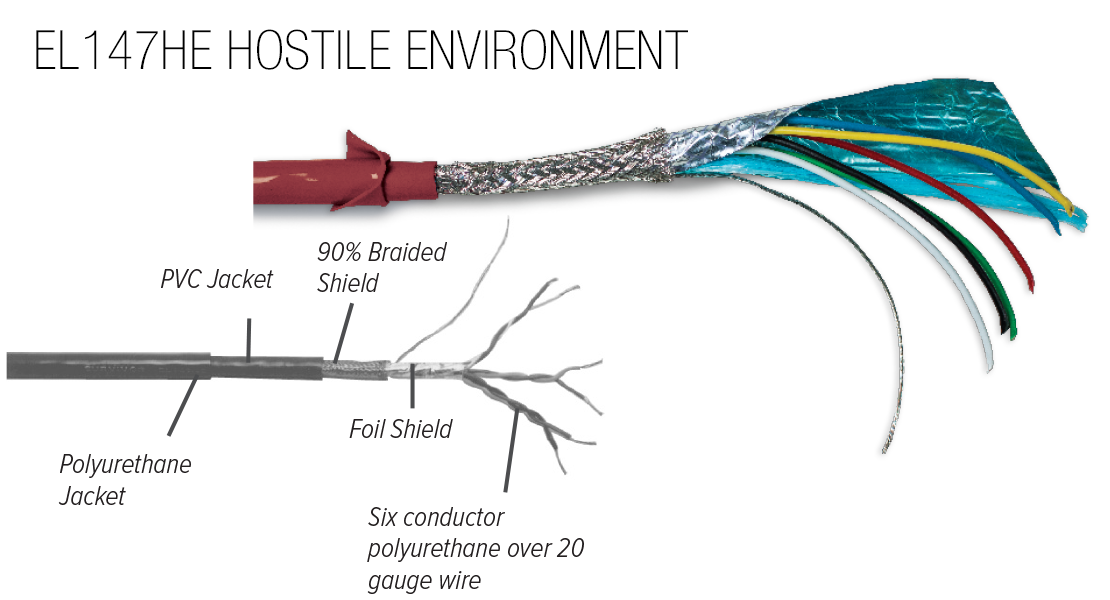

EL147HE Hostile Environment Cable
- Designed for use in hostile environments
- Polyurethane jacketing provides superior chemical and abrasion resistance
- RFI and EMI protected with foil overbraid shield
- Unmatched durability, yet extremely flexible
- All conductors are industry-standard color-coded
- Diameter: 0.32 in
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)

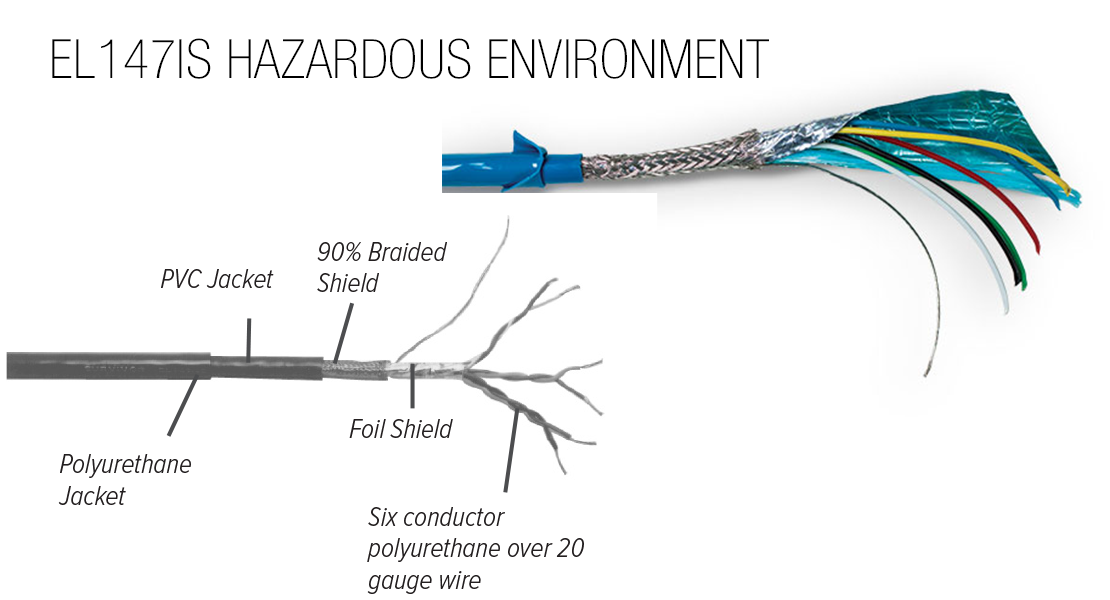

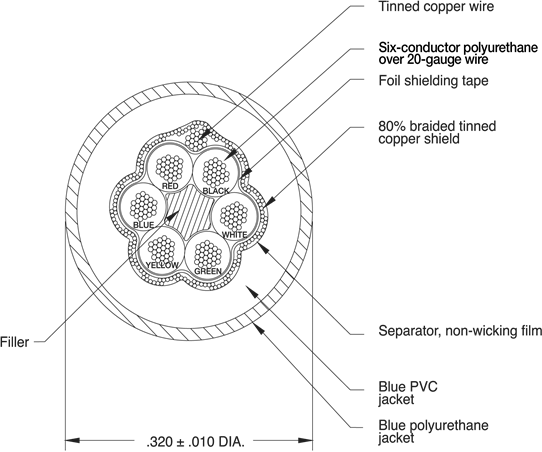

EL147IS Hazardous Environment Blue Jacket Cable
- Designed for intrinsically safe applications (must be wired according to Factory Mutual System-approved diagram)
- Polyurethane over PVC double jacketing provides superior chemical and abrasion resistance
- Both foil and braided wire shields for added RFI and EMI protection
- Six-conductor is industry-standard color-coded (Also available three-conductor)
- Suited for longer runs where remote sense lines can be used
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- Diameter: 0.32 in
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
EL147 Standard Cable Dimensions
| Part# | Continuous Roll | Description | |
|---|---|---|---|
| 15515 | 100 ft | 30.5 m | Six-conductor cable |
| 15516 | 250 ft | 76.2 m | Six-conductor cable |
| 15517 | 500 ft | 152.4 m | Six-conductor cable |
| 15518 | 1,000 ft | 304.8 m | Six-conductor cable |
| 15495 | Custom Length | Six-conductor cable | |
EL147RP Rodent Protection Cable Dimensions
| Part# | Continuous Roll | Description |
|---|---|---|
| 131964 | 100 ft | Six-conductor hostile environment cable |
| 131965 | 250 ft | Six-conductor hostile environment cable |
| 131966 | 500 ft | Six-conductor hostile environment cable |
| 131967 | 1,000 ft | Six-conductor hostile environment cable |
| 31475 | Custom Length | Six-conductor hostile environment cable |
EL147HE Hostile Environment Cable Dimensions
| Part# | Continuous Roll | Description |
|---|---|---|
| 15520 | 100 ft | Six-conductor hostile environment cable |
| 15521 | 250 ft | Six-conductor hostile environment cable |
| 15522 | 500 ft | Six-conductor hostile environment cable |
| 15523 | 1,000 ft | Six-conductor hostile environment cable |
| 15496 | Custom Length | Six-conductor hostile environment cable |
EL147IS Hazardous Environment Blue Jacket Cable Dimensions
| Part# | |
|---|---|
| 32817 | Available per foot |
| 72241 | Available per foot |
Resources/Downloads
Catalogs
| Title | Download | |
|---|---|---|
| EL147 Standard Load Cell Cable Catalog Page | Download |  Email |
| EL147RP Plus Rodent Protection Load Cell Cable Catalog Page | Download | Email |
| EL147HE Hostile Environment Load Cell Cable Catalog Page | Download | Email |
| EL147IS Hazardous Environment Blue Jacket Load Cell Cable Catalog Page | Download | Email |
Parts
EL147 Standard Cable
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 15515 | Cable,Load Cell 100ft EL147 6-Conductor UL, CSA, c UL approved |
List Price: $245.00 |
|
| 15516 | Cable,Load Cell 250ft EL147 6-Conductor UL, CSA, c UL approved |
List Price: $535.00 |
|
| 15517 | Cable,Load Cell 500ft EL147 6-Conductor UL, CSA, c UL approved |
List Price: $950.00 |
|
| 15518 | Cable,Load Cell 1000ft EL147 6-Conductor UL, CSA, c UL approved |
List Price: $1,875.00 |
|
| 15495 | Cable,Load Cell Custom EL147 6-Conductor per foot UL, CSA, c UL approved |
List Price: $2.45 |
