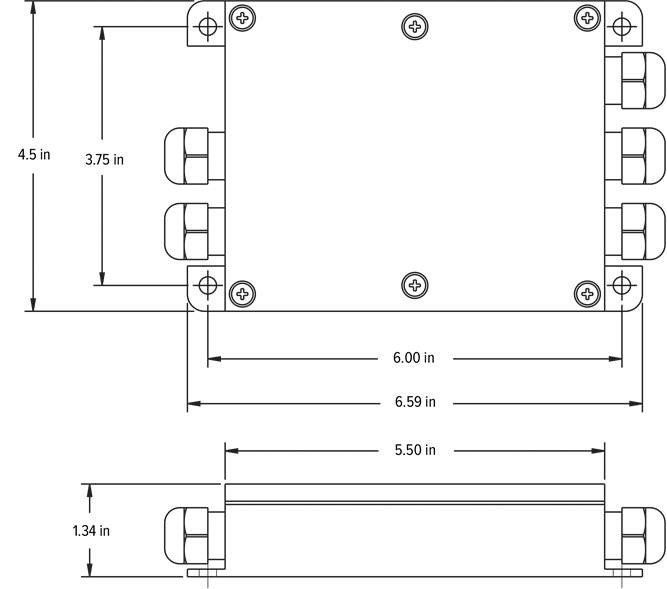

EL204 Signal Trim Junction Box

Standard Features

  • ABS enclosure with molded-in cable fittings
  • Premium screw terminals
  • Number of cells: Two, three or four single cells
Applications
  • Floor, hopper, tank or livestock applications

The EL204 signal trim junction box is a fit choice for summing two to four single cells in floor, hopper, tank or livestock applications. The ABS enclosure with molded-in cable fittings, sealed six-screw lid attachment and die-cut gasket provides superior environmental protection.

Cable Fittings:
Five water tight nylon compression fittings, 0.210 × 0.280 in (5.3 × 7.1 mm)

Connectors:
Spring clamp screwless, 12 to 28 AWG



Temperature:
Operating Range
0 °F to 122 °F (-18 °C to 50 °C)

Trimming:
Individual cell trim, signal trim

Potentiometers:
100,000 ohm, 25-turn cermet



Enclosure:
ABS with molded through-fittings, sealed six-screw lid

Circuit Board:
3.8 × 2.3 in, with conformal coating

Warranty:
One-year limited



Model Complete J-Box Replacement Replacement Board Only Replacement Cord Grips Replacement Pressure & Condensation Vent Desiccant Packs
JB4SS 88956 88958 58983 59001 88733 PreVent™ breather (vent) 88734 (vent nut) 92240
JB4ES 91779 89446 58983 59001 88733 PreVentbreather (vent) 88734 (vent nut) $1.05 92240
JB4SP JB4SPT 91780 92762 88958 (load cell) and
89894 (transient protection)
58983 59001 88733 PreVent breather (vent) 88734 (vent nut) 16039
JB4EP JB4EPT 91781 92763 89446 (load cell) and
89894 (transient protection)
58983 59001 88733 PreVent breather (vent) 88734 (vent nut) 16039
EL204 73428 88958 N/A N/A N/A
JB8SP 91782 **89889 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and
15630 (nut)=1/2" NPT
88733 PreVent breather (vent) 88734 (vent nut) 16039
JB8SPT 91783 89889 (load cell) and 89894 (transient protection) 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and
15630 (nut)=1/2" NPT
88733 PreVent breather (vent) 88734 (vent nut) 16039
EL304A 21169 21301 N/A N/A N/A
JB1010 36231 36351 N/A N/A N/A
JB1010ST 68813 68811 N/A N/A N/A
EL210 91781, JB4EP* 92472 58983 59001 N/A N/A
EL211A 91780, JB4SP (However the board does not have section trim capabilities)* 92473 (However the board does not have section trim capabilities) 58983 59001 N/A N/A
EL604-AL 88956, JB4SS* 88958 58983 59001 N/A N/A
EL604STA 88956, JB4SS* 88958 58983 59001 N/A N/A
EL604ETA 91779, JB4ES* 89446 58983 59001 N/A N/A
EL504 21165 21296 N/A N/A N/A
JB808S 91782, JB8SP* 92471 15655 (cord grip) and
15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT
N/A N/A
JB818ST 91783, JB8SPT* Need (1) 77445 (1) 89889 and (1) 89894 15655 (cord grip) and
15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT
N/A N/A

Resources / Downloads

Title Download Email
EL204 Catalog Page Download Email

Title Version Revision Download Email Category Archived
EL-204 Installation Instructions Download Email Junction Boxes No

Title Download Email
Replacement Junction Boxes, Boards or Components Catalog Page Download Email

Parts

Part # Description List Price Cart
73428 J-Box,EL204 ABS Signal Trim

List Price: $210.00

88958 Board,4 Channel ST Signal Trim w/Expansion FM

List Price: $175.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Hdimage(1)

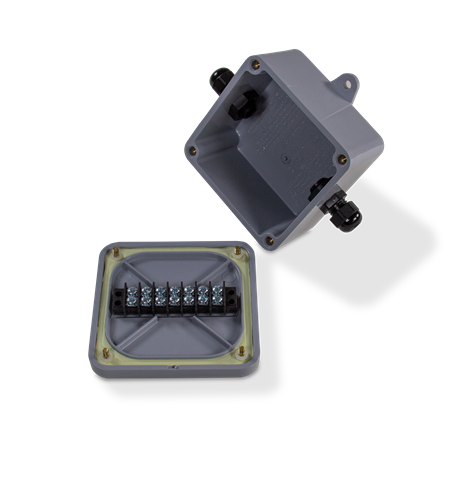

EL168 1-Cell Junction Splice Box

Use the EL168 1-Cell junction box for splicing or extending load cell cable.

Hdimage(1)

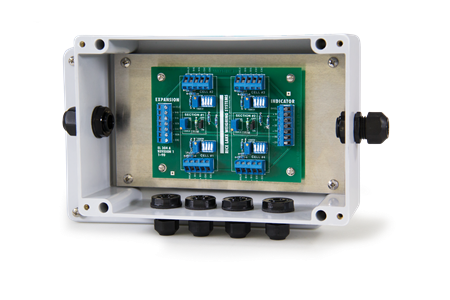

EL304A Signal Trim Junction Box

The EL304A signal trim junction box has a NEMA Type 4X Fiberglass Reinforced Polyester (FRP) enclosure, providing optimal protection.

Hdimage(1)

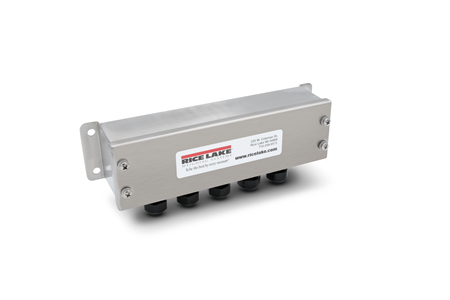

EL504 Signal Trim Junction Box

For signal trimming of two or four load cell outputs individually, the EL504 signal trim junction box is perfect for a variety of scales and installations.
