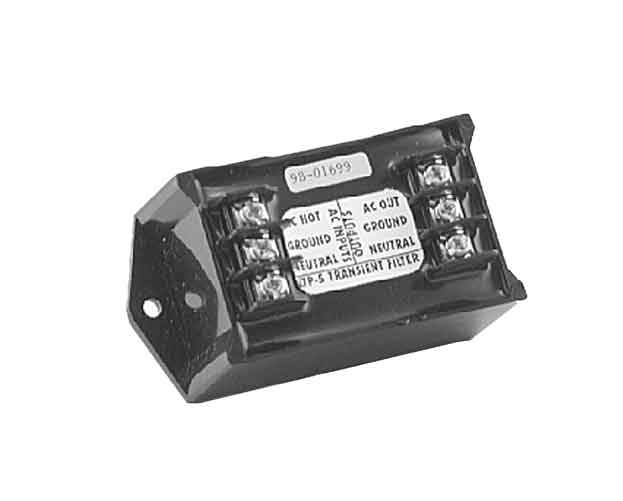

EL225-4 AC Transient Protector

Dedicated series transient protection
Bidirectional design reduces noise on surrounding lines

WARNING: Cancer and Reproductive Harm California Proposition 65

HD View

The EL226 AC Transient Protector is designed to filter voltage spikes and electrical noise from AC wall receptacles that provide power to sensitive equipment. The reliable EL226 can be mounted on any surface, providing optimal protection for scales, computers and printers.

EL225-4 AC Transient Protector Specifications

Maximum Current:
2 amps continuous

Trip Point:
130 VAC rms

Clamping Time:
Less than five nanoseconds

EMI/RFI Protection:
Nine stages

Protection Type:
Nine-stage series type filters out both common and normal mode transients

Grounding:
20 ft insulated #10 AWG wire provided

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Dimensions:
(L × W × H)
4.01 × 2.05 × 2.00 in

Warranty:
One-year limited

Resources / Downloads

Catalogs

Title	Download	Email
EL225-4 Catalog Page	Download	Email

Parts

Part #	Description	List Price	Cart
21142	AC Protection Chassis Mount, Transient Protection.	List Price: $285.00	View Cart

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
