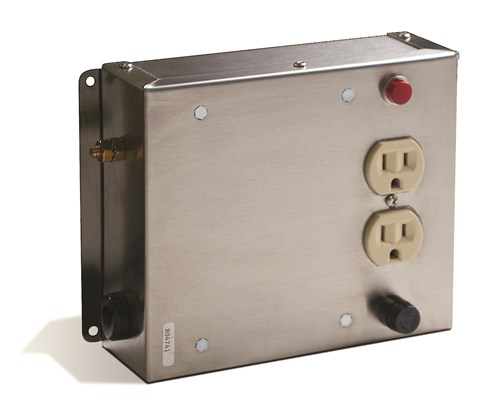

EL226 AC Transient Protector

  • Duplex receptacle
  • 20 ft ground cable
  • Factory serviceable
  • 9 ft cord with three-prong plug
  • Stainless steel industrial enclosure
  • Plugs into any grounded three-prong outlet
  • Indicator light shows protection is secure
  • Excellent as a prefilter for voltage regulators
  • Reliability and quality top-of-the-line performance
  • Shielded line cord for protection against induced transients
  • Positive proven protection for scales, computers and printers
  • Convenient mounting holes; can be mounted on any surface

The EL226 AC Transient Protector is designed to filter voltage spikes and electrical noise from AC wall receptacles that provide power to sensitive equipment. The reliable EL226 can be mounted on any surface, providing optimal protection for scales, computers and printers.

Operating Voltage:
120 VAC 50/60 Hz, nominal

Maximum Current:
10 rms instantaneous, 7.5 rms continuous

Clamping Time:
Less than three to five nanoseconds

EMI/RFI Protection:
13 stages

Protection Type:
13-stage filters out both common and normal mode transients

Grounding:
20 ft insulated #10 AWG wire provided

Enclosure:
Stainless steel

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Circuit Board:
Fiberglass reinforced 4-glass epoxy

Dimensions:
(W × H × D)
8.00 × 6.00 × 2.50 in

Warranty:
One-year limited warranty

EL226 AC Transient Protection Dimensions

Resources / Downloads

Title View Email Category Type
The Power of Zap 2 View Email Hardware Articles

Title Download Email
EL226 Catalog Page Download Email

Parts

Part # Description List Price Cart
21136 AC Protection,Duplex Outlet

List Price: $370.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
