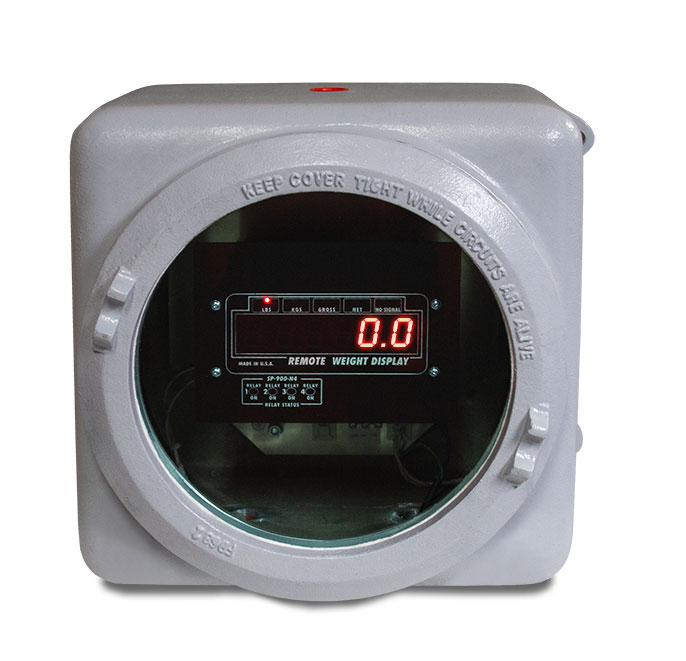

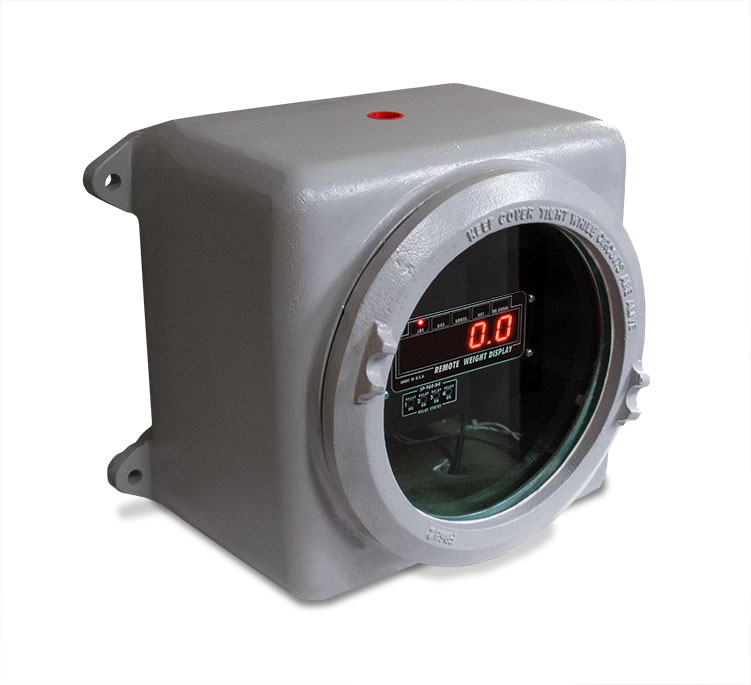

EL232 XPCD Explosion Proof Remote Serial Display

  • 20 mA current loop or RS-232 input
  • Compatible with most Rice Lake indicators
  • NEMA Type 4, 7CD, 9EFG enclosure

The Intrinsically Safe Remote Serial Display

Use a protected remote display within the hazardous area while your indicator remains outside. This RD300 remote display is housed within an explosion proof box—an easy way to make an intrinsically safe device using any existing indicator or controller.

Display:
High-intensity, red LED, 0.8 in (20.3 mm) high digits


Input Voltage:
115 VAC, 60 Hz


Weight:
Approximately 60 lb (27.2 kg)


NEC Classifications:
Class I, Division 1, Groups C & D; Class II, Division 1,
Groups E, F & G and Class III hazardous environments

Baud Rate:
1200, 2400, 4800 and 9600


Interfaces:
20 mA current loop and RS-232
Please consult factory for model numbers and interface requirements


Warranty:
One-year limited warranty



Dimensions
A 10.50 in (266.7 mm) D 11.75 in (298.5 mm) G 11.75 in (298.5 mm) glass diameter
B 9.50 in (241.3 mm) E 10.50 in (266.7 mm) H 7/16 in (11 mm) dia holes
C 5.81 in (147.7 mm) F 7.50 in (190.5 mm)





Resources / Downloads

Title Download Email
EL232 XPCD Catalog Page Download Email
Explosive Environment Equipment Policy Download Email
Explosive Environment Solutions Download Email
Hazardous Atmospheres Download Email

Title Version Revision Download Email Category Archived
EL232 XPCD Installation Manual Download Email Remote Displays / Scoreboards No

Title Download Email
Hazardous Area Classification Download Email

Title View Download Email Category
ScaleTalk: What are Hazardous Areas? View Download Email

Parts

Part # Description List Price Cart
20904 Remote DSPL,EL232 XPCD 117 VAC RS232/20mA Serial Interface

List Price: $3,595.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
