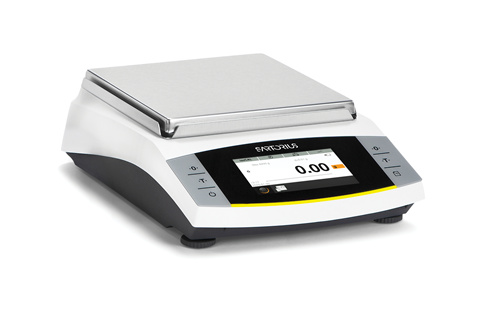

Entris II Series Basic Advanced, Sartorius Precision Balance
- User-friendly operation
- Basic applications
- Monolithic weighing systems
- Aluminum die-cast base, ABS housing
- Front level bubble
- RS-232 standard
- Below balance weighing
Entris II Series Basic Advanced, Sartorius Precision Specifications
| Weighing Units: Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Troy Ounce, Grain, Newton (See technical manual for complete listing) Operating Modes: Weighing, Density, Percentage, Counting, Mass Unit Conversion, Mixing, Statistics, Components, Animal Weighing, Checkweighing, Peak Hold and Pipette Test Power: AC adapter, 115 to 240 V, US plug |
Stabilization Time: BCA223I-1S: 2.5 seconds BCA323I-1S: 1.1 seconds BCA423I-1S, BCA623I-1S: 1.0 seconds BCA1203I-1S: 1.5 seconds Operating Humidity: 15% to 80% for temperatures up to 31 °C Calibration Weight: BCA223I-1S, BCA323I-1S: 200 g BCA423I-1S, BCA623I-1S, BCA1203I-1S: 500 g |
Operating Temperature: 5 °C to 40 °C (41 °F to 104 °F) Est. Weight: BCA223I-1S, BCA323I-1S, BCA423I-1S: 13.7 lb (6.2 kg) BCA623I-1S: 13.9 lb (6.3 kg) BCA1203I-1S: 12 lb (5.4 kg) Warranty: Two-year limited |
Entris II Series Basic Advanced, Sartorius Precision Models
| Model | Capacity | Readability | Repeatability | Linearity | Pan Size | Dimensions | Part # |
|---|---|---|---|---|---|---|---|
|
BCA223I-1S |
220 g |
1 mg |
± 0.1 mg |
± 0.2 mg |
3.5 in (90 mm) |
20.67 × 19.49 × 15.75 in |
202470 |
|
BCA323I-1S |
320 g |
1 mg |
± 1 mg |
± 2 mg |
4.7 in (120 mm) |
20.67 × 19.49 × 15.75 in |
202472 |
|
BCA423I-1S |
420 g |
1 mg |
± 1 mg |
± 2 mg |
4.7 in (120 mm) |
20.67 × 19.49 × 15.75 in |
202474 |
|
BCA623I-1S |
620 g |
1 mg |
± 1 mg |
± 2 mg |
4.7 in (120 mm) |
20.67 × 19.49 × 15.75 in |
202475 |
|
BCA1203I-1S |
1,200 g |
1 mg |
± 1 mg |
± 2 mg |
4.7 in (120 mm) |
20.67 × 19.49 × 15.75 in |
202478 |
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 202470 | Entris II, 220g x 1mg Precision Balance with Internal Calibration Adjustment, Basic Advanced |
List Price: $2,480.00 |
|
| 202472 | Entris II, 320g x 1mg Precision Balance with Internal Calibration Adjustment, Basic Advanced |
List Price: $2,700.00 |
|
| 202474 | Entris II, 420g x 1mg Precision Balance with Internal Calibration Adjustment, Basic Advanced |
List Price: $2,950.00 |
|
| 202475 | Entris II, 620g x 1mg Precision Balance with Internal Calibration Adjustment, Basic Advanced |
List Price: $3,525.00 |
|
| 202478 | Entris II, 1200g x 1mg Precision Balance with Internal Calibration Adjustment, Basic Advanced |
List Price: $4,700.00 |
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 112261 | Printer,Data YDP20-0CE and Time/Date Function, Sartorius, 9 Pin to 25 Pin RS-232 Cable Included. Requires Power Supply Pn 191429. If used with Entris II Unit will also Need PN 201911 RS-232 9 Pin Male to 9 Pin Female |
List Price: $1,580.00 |
|
| 31103 | Paper,Printer YPP01 STD Size Roll,Fits All YDPxx-xxx Printers Internally, 5 Rolls per Pack |
List Price: $76.00 |
|
| 31106 | Ribbon,Printer 6906918 for YDP021YDP03 Minebea |
List Price: $100.00 |
|
| 201911 | Cable,Printer RS-232 Data 9 Pin Male to 9 Pin Female Sartorius YDP20-0CE Printer for use with Entris II |
List Price: $85.00 |
|
| 204042 | Universal Power Supply Input: 100-240VAC/50-60HZ. Inc. Entris II Balances |
List Price: $61.00 |
|
| 191429 | Universal Power Supply Adapter Input: 100-240VAC/50-60HZ Inc. Line Cord CP3202S, CP6201, PT Series, Practum, Quintix, Secura, Entris I Balance, EA35EDE Scale, BP Series, EA Series, YDP20 Printer |
List Price: $67.00 |
