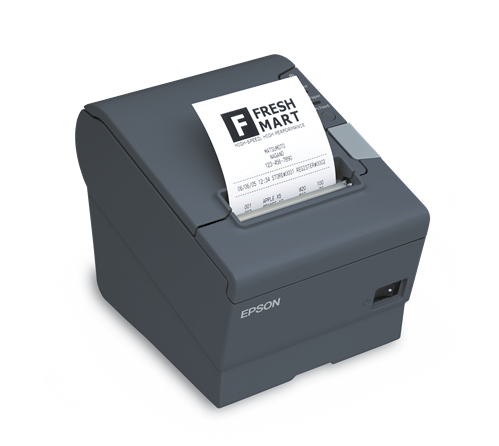

Epson TM-T88VI Direct-Thermal POS Receipt Printer

  • High-speed printing of both text and graphics (up to 300 mm/second)
  • Direct thermal POS receipt printer
  • True grayscale image printing
  • Best-in-class reliability
  • Convenient drop-in paper loading, auto cutter and status LEDs
  • ENERGY STAR® qualified
  • Accommodates 58 mm or 80 mm paper roll
  • Paper saving print features
  • Improved cover protects from dust and debris
  • OS support for Microsoft® Windows® 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/Intel Processor) and Linux

Interface:
Built-in USB and serial interface (DB-25F); built-in USB and Ethernet: or built-in USB and Wireless LAN

Data Buffer:
Receive buffer: Selectable as 45 bytes or 4 KB using the DIP switch

Paper Dimensions:
80 mm: 3.13 × 3.27 in diameter
58mm: 2.26 × 3.27 in diameter

Paper Thickness:
55 to 80 µm

Print Speed:
300 mm/s {11.81 inch/s}

Color:
Gray

Safety Standards:
EMI: FCC/ICES-003 Class A
UL60950-1/CSA C22.2 No.60950-1

Power:
24 VDC ±7%

Power Consumption:
Approx. 1.8 A (mean)

Temperature:
Operating : 31 °F to 113 °F (5 °C to 45 °C)
Storage: 14 °F to 122 °F (-10 °C to 50 °C)

Reliability:
MTBF: 360,000 hours
MCBF: 70 million lines

Dimensions:
(L x W x H)
7.68 × 5.71 × 5.83 in
(195 × 145 × 148 mm)

Weight:
3.5 lb (1.6kg)

Warranty:
One-year







Resources / Downloads

Title View Email Category Type
New Vision View Email Bench Scales|Indicators / Controllers|Remote Displays / Scoreboards Application Story

Title Download Email
EPSON TM-T88VI Catalog Page Download Email

Title Download Email
Custom Label Format Form Download Email

Parts

Part # Description List Price Cart
117233 Printer,Thermal TM-T88V Epson Direct Thermal, RS-232, USB, PS-180 Power Supply, Gray

List Price: $610.00

199848 Printer,Thermal TM-T88VI Epson Direct Thermal, Ethernet, 802.11 Wireless WPA, USB, PS-180 Power Supply, Black

List Price: $765.00

Options

Cables, Adapters and Connectivity

Part # Description List Price Cart
23112 Power Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE

List Price: $120.00

69917 Paper Roll,Thermal Star TSP700, TSP600, 3.125" Wide x 3.25" Dia 7/16 Core 295 Foot Rolls

List Price: $6.00

83007 Printer,Parallel OPT Connect-It OPT, TM-U220 TM-T88IV

List Price: $66.00

15568 Cable,Kit 25 Pin RS232 IDS SP 25 Pin D-Sub Male To 25 Pin D-Sub Male

List Price: $70.00

15547 Cable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White

List Price: $70.00

79074 Cable, USB 6ft USB-A (male) to USB-B (male)

List Price: $35.00

167545 Printhead,POS Receipt Printer TM-T88IV TM-T88V Epson

List Price: $135.00

Consult Custom RS-232 serial cable

Call for price
