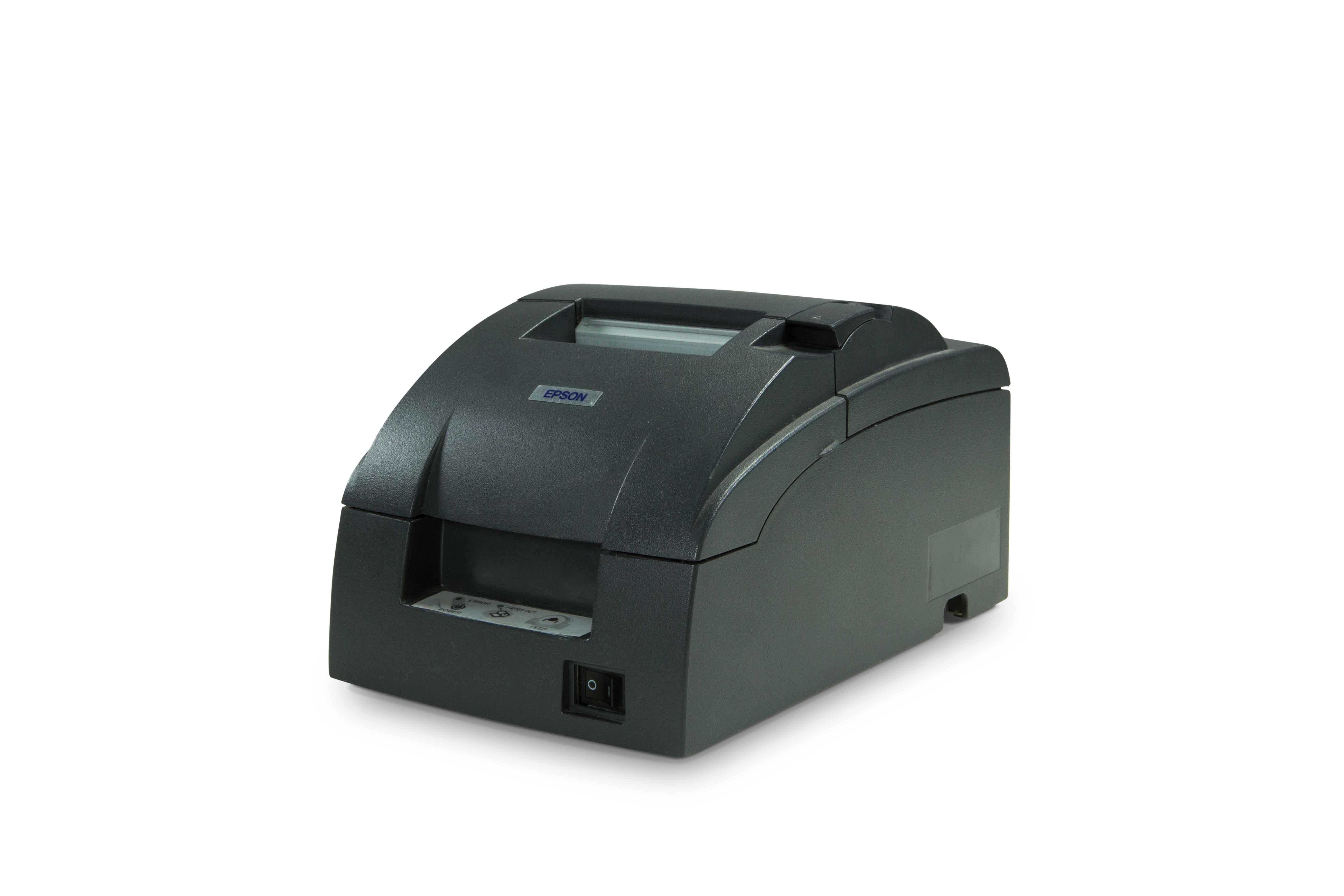

Epson TM-U220 Roll-Tape Printer

  • Nine-pin dot matrix printhead
  • High-speed 4.7 to 6.0 lines per second printing
  • Drop-in paper set and auto paper loading
  • Automatically transmits changes in printer status
  • RS-232 (DB-25F connector)
  • Optional connect-it cartridges for parallel, USB, 10 Base-T
  • Uses MI88D mechanism


Some approval documents are available to view by clicking the icons below.

CE Mark UL Listed CSA

WARNING: Cancer and Reproductive Harm California Proposition 65

Print Speed:
Approximately 4.7 lines per second

Column Capacity:
40/42 or 33/35 columns

Characters Per Line:
40 characters

Print Area:
3 in (76.2 mm) W

Character Formation:
7 × 9 and 9 × 9 dot matrix

Character Height:
0.12 standard font

Character Set:
95 alphanumeric characters
37 international characters
128 × 12 graphic characters

Line Spacing:
0.17 in (4.32 mm)

Printhead Life:
Approximately 100 million strokes/pin

Form Thickness:
0.002 to 0.003 in (0.06 to 0.085 mm)

Cassette-type purple ribbon. Ribbon life is approximately 1.5 million characters (continuous prints)
Black ink also available

Serial Interfaces:
Baud rates: 4800, 9600
RS-232 compatible (DB-25F) or USB model

7 or 8 bits, none, even or odd

Operating Temperature:
32 °F to 122 °F (0 °C to 50 °C)

Stop Bits:
1 or more

DTR/DSR or XON/XOFF control selectable

Overall Dimensions:
(L × W x H)
Type A: 11.3 × 6.3 × 6.2 in
(286 × 160 × 158 mm)
Type D: 9.7 × 6.3 × 5.4 in
(248 × 160 × 139 mm)

10 lb

Two-year limited
(includes printhead)

CSA certified

Resources / Downloads

Title Download Email
EPSON TM-U220 Catalog Page Download Email

Title Version Revision Download Email Category Archived
EPSON TM-U220 User's Manual Download Email Printers No
EPSON TM-295, TM-U200, TM-U590 Communications Interface Information Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Download Email
Epson Printers Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
EPSON TM-U220 POS Impact Printers Download Email Accessories|Printers

Title View Download Email Category
Rice Lake Thermal Printers View Email Printers
Thermal Printer Label Setup Demonstration View Email Printers


Part # Description List Price Cart
81076 Printer,Tape TM-U220D RS232 Serial, Universal Power Supply, US Power Cord Epson

List Price: $445.00

81077 Printer,Tape TM-U220A RS232 Serial, Take Up Reel, Auto Cutter, Universal Power Supply, US Power Cord

List Price: $660.00

164387 Printer,Tape TM-U220D USB USB, Universal Power Supply, US Power Cord Epson

List Price: $475.00

204682 Printer,Tape TM-U220B Ethernet TCP/IP, Universal Power Supply, US Power Cord Epson Cutter Option

List Price: $655.00


Accessories & Consumables

Part # Description List Price Cart
83007 Printer,Parallel OPT Connect-It OPT, TM-U220 TM-T88IV

List Price: $66.00

35666 Cover,Dust TM-U200, U220

List Price: $63.00

31296 Ribbon CRTG,Purple TM-300, TM-U200, TM-U220, M118D, ERC-30 ERC-34 ERC-38

List Price: $12.75

66499 Ribbon CRTG,TM300 TMU200 TM-U220, M118D ERC-30/34/38 Red/Black

List Price: $12.75

69916 Paper Roll,3 Inch Wide 150ft Long 1 Ply White Bond 1/2 in Core 3 in OD

List Price: $5.25

69915 Paper Roll,3 Inch Wide 90ft Long, 2 Ply White/Canary 1/2 In Core 3 In OD Star Epson

List Price: $7.50

35667 LIT,Manual TM-U200 Operator

List Price: $17.00

72309 Power Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output

List Price: $290.00

23112 Power Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE

List Price: $120.00

Cables, Adapters and Connectivity

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
