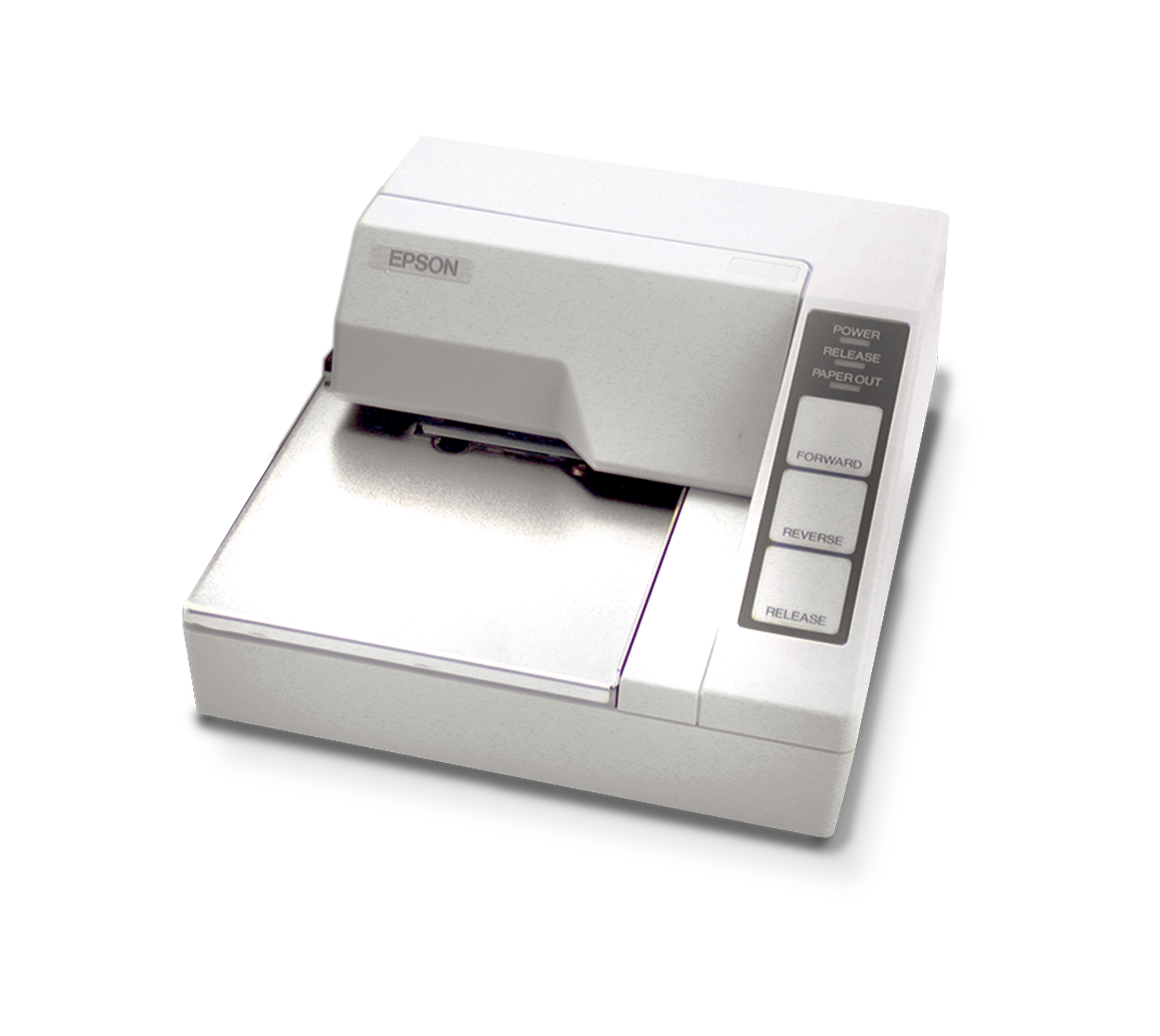

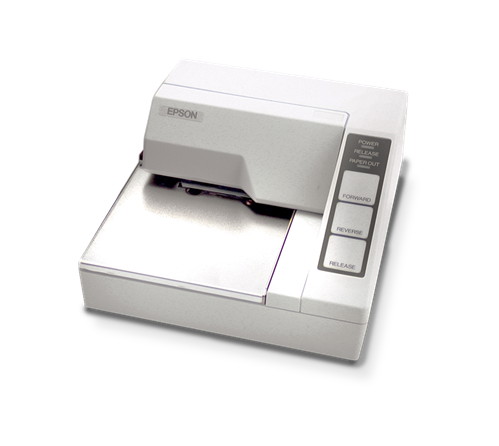

Epson TM-U295 Ticket Printer

  • High-speed 1.9 to 2.3 lines per second printing
  • Single copy or up to four-part multicopy ticket printing
  • RS-232 serial communication

Note: Does not support double-strike commands.

Approvals

Some approval documents are available to view by clicking the icons below.

UL Listed CE Mark CSA

WARNING: Cancer and Reproductive Harm California Proposition 65

The Epson TM-U295 is a sound and economical choice for simple ticket printing needs. This attractive model will print tickets up to four parts thick.

Print Speed:
1.9 to 2.3 lines per second (5 x 7 character, 3 dot line spacing)

Column Capacity:
35/42 columns

Characters Per Line:
35 standard font

Print Area:
2.59 in W (65.8 mm W)

Character Formation:
5 x 7 and 7 x 7 dot matrix

Character Height:
0.11 standard font

Character Set:
Full 96-character ASCII; with software control, 32 international characters, 128 x 2 graphic characters

Line Spacing:
0.16 in (4.06 mm) software programmable in 1/60 in units

Print Head Life:
Approximately 100 million strokes/pin

Form Thickness:
Single-ply: 0.003 in to 0.009 in (0.08 mm to 0.23 mm)
Copy paper: 0.003 in to 0.014 in (0.08 mm to 0.36 mm)

Ribbon:
Cassette-type purple ribbon
Ribbon life is approximately 1.5 million characters (continuous prints)
Black ink also available.

Serial Interfaces:
RS-232 (DB-25F) compatible

Baud Rates:
1200, 2400, 4800, 9600, selectable

Parity:
7 or 8 bits, none, even or odd

Stop Bits:
1 or more

Handshaking:
DTR/DSR or XON/XOFF control selectable

Overall Dimensions:
(W x D x H): 7.08 x 7.49 x 3.99 in
(180 x 190.5 x 101.5 mm)

Weight:
9 lb

Approvals:
UL listed, CSA certified, CE marked

Warranty:
One-year limited warranty (includes print head)

Resources / Downloads

Title Download Email
EPSON TM-U295 Catalog Page Download Email

Title Version Revision Download Email Category Archived
EPSON TM-295, TM-U200, TM-U590 Communications Interface Information Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Download Email
Epson Printers Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
EPSON TM-U295 Slip Printer Download Email Accessories|Printers

Parts

Part # Description List Price Cart
23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

List Price: $650.00

35891 Printer,Ticket TM295 Kit w/115-230VAC External Power Supply And Blunt End Printer Cable

List Price: $695.00

33816 Printer,Ticket TMU295 Epson 24VDC

List Price: $615.00

Options

Part # Description List Price Cart
29582 Cover,Dust TM-290II TM-295

List Price: $58.00

29584 Ribbon CRTG,ERC-27 Purple TM-290II TM-295 Epson M66SA, Fairbanks 50-3930 50-3960, Toledo 8807

List Price: $12.75

29583 Ribbon CRTG,ERC-27 Black TM-290II TM-295 Epson M66SA, Fairbanks 50-3930 50-3960

List Price: $12.75

23112 Power Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE

List Price: $120.00

34344 LIT,Manual TM-295 Operate

List Price: $21.00

72309 Power Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output

List Price: $195.00

71630 Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG

List Price: $60.00

Cables

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
