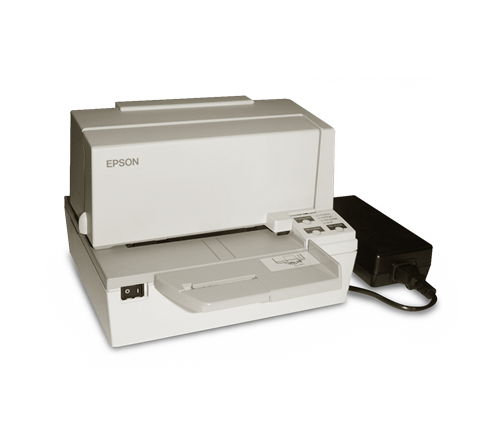

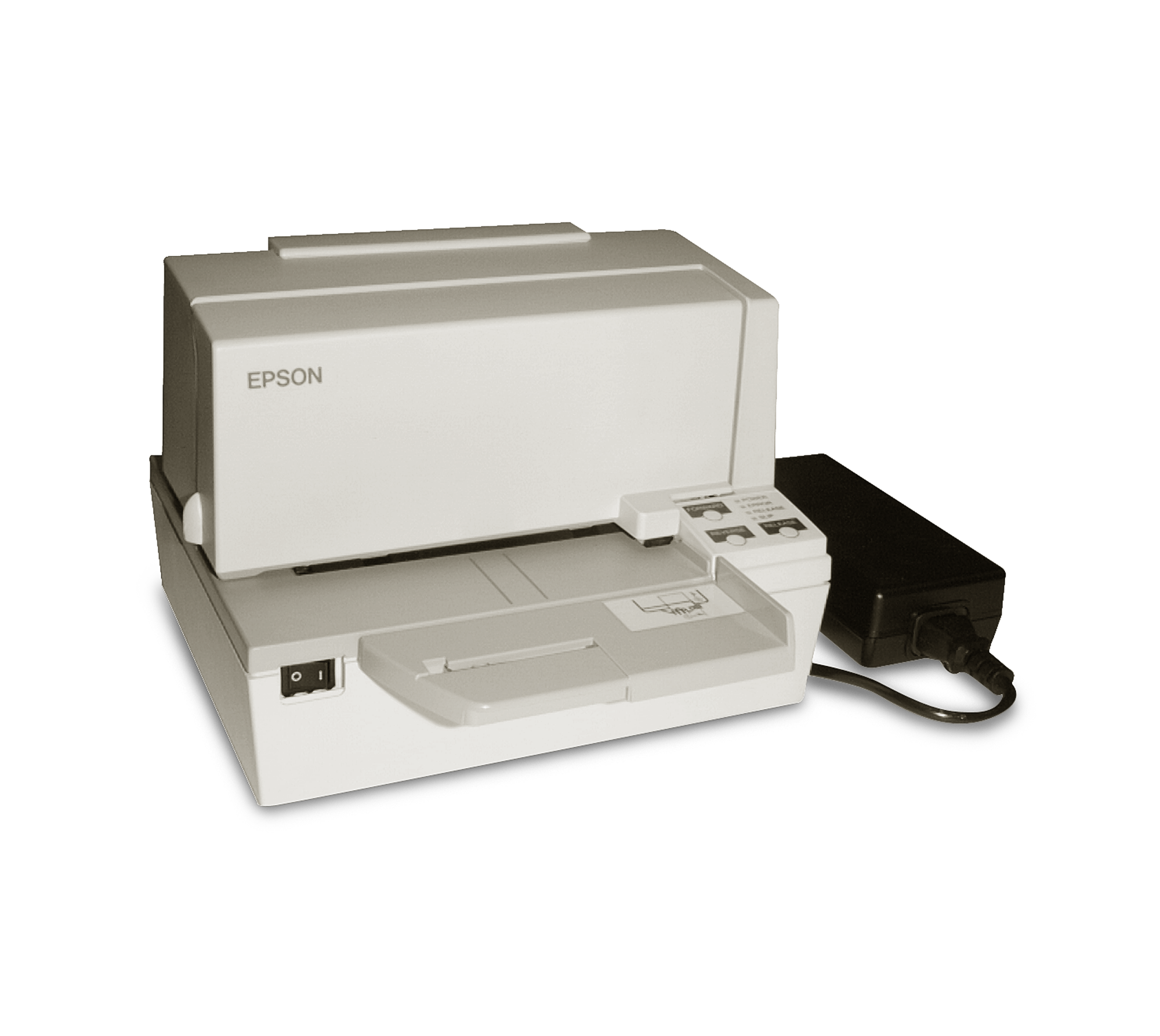

Epson TM-U590 Ticket Printer

  • High-speed 2.8 lines per second printing for 88 columns of print; 4.9 lines per second printing for 40 columns
  • Single copy and up to five-part
  • Wide slip capability of A4 size documents
  • Remote-printing functionality sent via RS-232
  • 5.2 in wide print area
  • Supports double-strike commands

Approvals

Some approval documents are available to view by clicking the icons below.

ULCUS CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

EPSON TM-U590 is a wide-frame printer able to handle a broad range of printing tasks with ease. It can accommodate larger ticket sizes, up to four parts thick.

Print Method:
Nine-pin, serial impact dot matrix

Font:
7 x 9 and 9 x 9

Column Capacity:
88/66 columns

Character Size:
(W x H): 0.05 in x 0.12 in/0.06 in x 0.12 in
(1.3 mm x 3.1 mm/1.6 mm x 3.1 mm)

Character Set:
95 alphanumeric characters
32 international characters
128 x 2 graphic characters

Characters Per Inch:
16.7 CPI/12.5 CPI

Serial Interfaces:
Bidirectional parallel,
RS-232 (DB-25F)/ RS-485

Data Buffer:
4K/69 bytes

Paper Dimensions:
(W x L): 2.76 x 2.76 in/8.26 x 11.69 in
(70 x 70 mm/210 x 297 mm)

Paper Thickness:
0.003 in to 0.014 in (0.09 mm to 0.36 mm)

Copy Capabilities:
One original up to four copies

Power:
24 VDC ±10%

Power Consumption:
Approx. 43 W
Drawer Kickout Device Function:
Two drives

Ribbon:
ERC-31 (purple)

Overall Dimensions:
(W x D x H): 9.92 x 10.47 x 7.28 in
(252 x 266 x 185 mm)

Weight:
12 lb

Approvals:
CE Marked, FCC Class A, VCC #1,
UL and C-UL Listed, TUV

Warranty:
One-year limited warranty (includes print head)

Resources / Downloads

Title Download Email
EPSON TM-U590 Catalog Page Download Email

Title Version Revision Download Email Category Archived
EPSON TM-295, TM-U200, TM-U590 Communications Interface Information Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Download Email
Epson Printers Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
EPSON TM-U590 Slip Printer Download Email Accessories|Printers

Parts

Part # Description List Price Cart
128726 Printer,Ticket TM-U590 Epson, 24 VDC with 115-230V Power Supply, Euro Plug

List Price: $1,190.00

68502 Printer,Ticket TM-U590 Cool White Epson 24VDC w/115-230vac Power Supply

List Price: $1,150.00

164391 Printer,Ticket TM-U590 Epson USB, 24VDC w/115-230vac Power Supply

List Price: $1,320.00

Options

Part # Description List Price Cart
68525 Ribbon CRTG,ERC-31 Purple TM-U590, TMU-925, TMU-930, TMU-935, Cardinal P-400, Toledo 8808

List Price: $14.50

104145 Ribbon CRTG,TM-U590 Black

List Price: $14.50

23112 Power Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE

List Price: $120.00

128746 Power Supply,Epson 90 - 264 VAC to 24 VDC, Euro Plug

List Price: $145.00

111840 Cover,Dust TM-U590

List Price: $69.00

68562 Manual,TM-U590 Operators

List Price: $12.75

68725 Manual,TM-U590 Technical

List Price: $37.00

72309 Power Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output

List Price: $195.00
