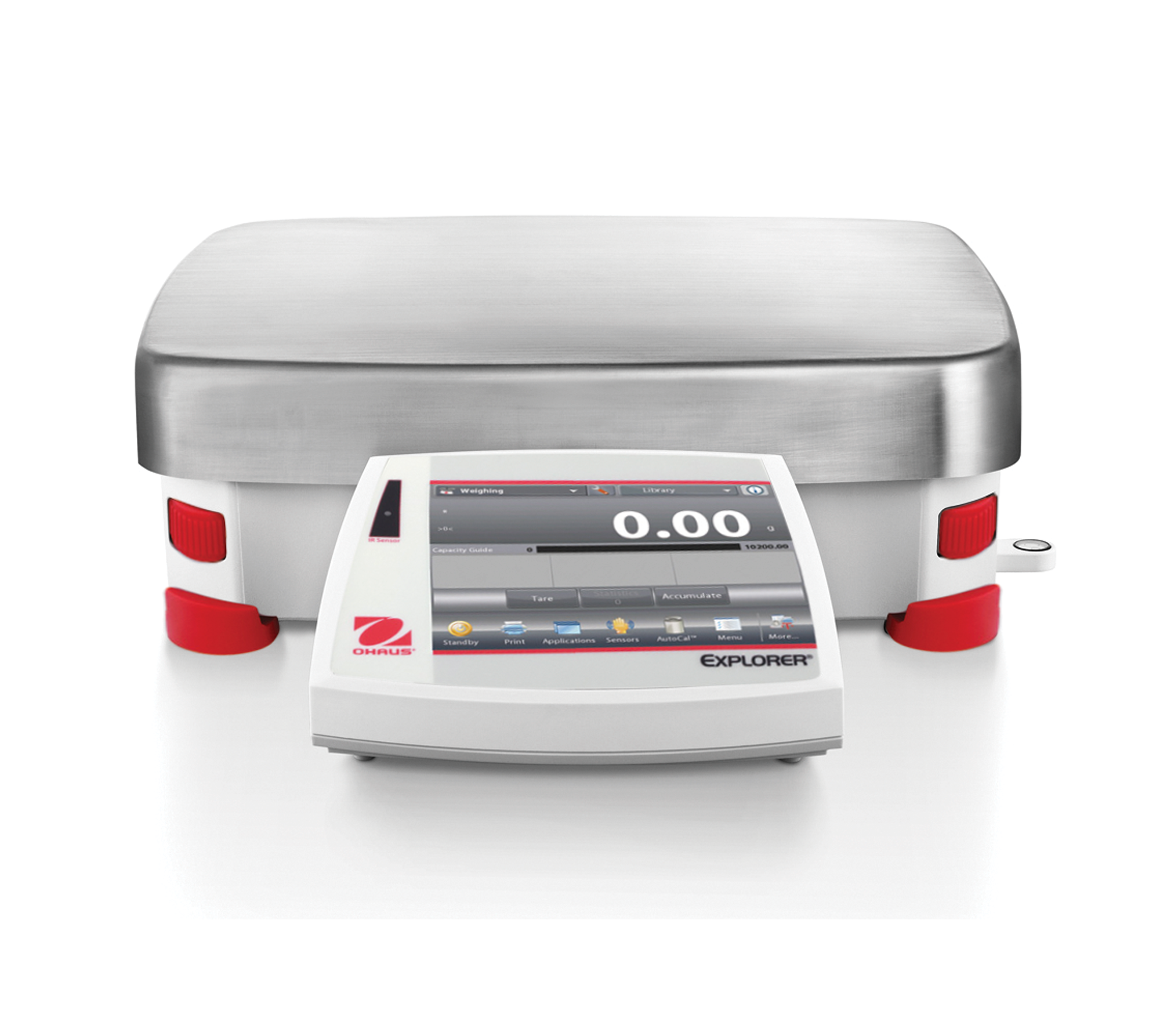

Explorer® Series, Ohaus High Capacity Balance
- Touchless IR (infrared) sensors minimize keypad use
- Program IR sensor to control operations including print, tare and other selectable functions
- Color VGA, 5.7 in display with icons for simple menu navigation
- Multiple application modes designed for versatility
- AutoCal™ calibration
- Robust IP54 die-cast metal bottom housing with stainless steel pan
- ENERGY STAR qualified adapter
- Underweigh hook
Innovative Industrial Balance
The Ohaus Explorer High Capacity Series features an innovative, easy-to-use interface. One-step operation guides you through Explorer Pro’s application modes with a single button press. The high-resolution, backlit, LCD display is easy to view, while programmable touchless sensors can control a diverse range of popular applications including tare, print and power.
Explorer Series, OHAUS High Capacity Specifications
|
Weighing Units: Operating Modes: |
Power: Stabilization Time: Calibration: Operating Temperature: |
Est. Weight: Warranty: Return Policy: |
Explorer Series, OHAUS High Capacity Models
| Model | Capacity | Readability | Repeatability | Linearity | Pan Size | Dimensions | Part # |
|---|---|---|---|---|---|---|---|
|
Ex12001 |
12,000 g |
0.1 g |
±0.1 g |
±0.2 g |
14.84 × 12.24 in |
14.84 × 4.72 × 17.44 in |
157235 |
|
Ex24001 |
24,000 g |
0.1 g |
±0.1 g |
±0.2 g |
14.84 × 12.24 in |
14.84 × 4.72 × 17.44 in |
157236 |
|
Ex35001 |
35,000 g |
0.1 g |
±0.1 g |
±0.2 g |
14.84 × 12.24 in |
14.84 × 4.72 × 17.44 in |
157237 |
Resources / Downloads
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 157235 | Balance,Ohaus EX12001 Explorer High Capacity, 12000 x 0.1g, 120-240V Adapter |
List Price: $5,075.00 |
|
| 157236 | Balance,Ohaus EX24001 Explorer High Capacity, 24000 x 0.1g, 120-240V Adapter |
List Price: $6,175.00 |
|
| 157237 | Balance,Ohaus EX35001 Explorer High Capacity, 35000 x 0.1g, 120-240V Adapter |
List Price: $7,225.00 |
Options
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 157238 | Column,Tower Display Ohaus High Capacity 30078082 |
List Price: $205.00 |
|
| 77712 | Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery |
List Price: $260.00 |
|
| 70406 | Balance OPT,Cable 9-Pin Serial Ext |
List Price: $260.00 |
|
| 156234 | Adapter,AC Ohaus 120-240V Universal 46001724 Navigator XT, PA, PX, EX Series Requires 156235 Plus SET or 166574 US Plug Only Sold Separately |
List Price: $67.00 |
|
| 156235 | Plug Set,Intl Ohaus Kit PN 46001780 Includes 46001766 US Plug - Valor 2000, PA, PX, EX, Defender Series (Kit includes plugs for EU, US, AU, UK) |
List Price: $29.00 |
