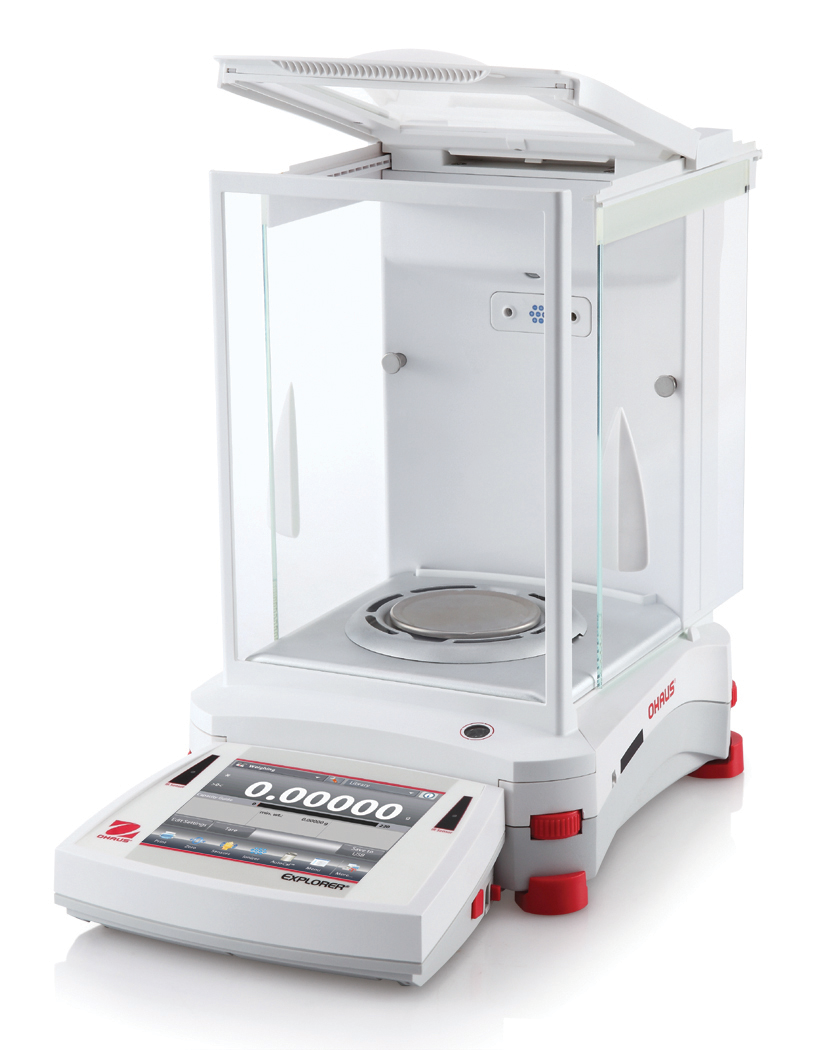

Explorer® Series, OHAUS Semi-Micro Balance

  • Intuitive SmarText™ software
  • 4 programmable touchless sensors
  • Weighing chamber
  • Color touchscreen display
  • Memory for up to 99 items
  • Real-time clock for GLP/GMP data collection
  • Audible stability alert
  • Autocal automatic calibration
  • EX225D/AD and EX225/AD
  • Includes ionizer and auto doors

Weighing Units:
Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Grain, Newton (see technical manual for complete listing)

Operating Modes:
Weighing, Percent Weighing, Parts Counting, Checkweighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Pipette Adjustment, SQC

Power Requirements:
AC adapter input: 100 to 240 VAC 0.6A 50/60 Hz

Stabilization Time:
0.1 mg = 0.3 seconds; 0.01 mg = 8 second

Min-Weight:
20.0 mg fine range (USP, u=0.10%, k=2)

Calibration:
AutoCal™ at 1.5 °C temperature change, 11 hours and external calibration

Operating Temperature Range:
14 °F to 86 °F (-10 °C to 30 °C)

Est. Weight:
25 lb (12.5 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability
(20 g) std
Repeatability
(100 g) std
Linearity Pan Size Dimensions Part #

EX125D

52 g/120 g

0.01 mg / 0.1 mg

±0.015 mg

0.1 mg

±0.1 mg

80 mm

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

171347

EX125

120 g

0.01 mg

±0.015 mg

0.02 mg

±0.1 mg

80 mm

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

171348

EX225D

120 g / 220 g

0.01 mg / 0.1 mg

±0.015 mg

0.02 mg / 0.1 mg

±0.1 mg

80 mm

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

171349

EX225D/AD

120 g / 220 g

0.01 mg / 0.1 mg

±0.015 mg

0.02 mg / 0.1 mg

±0.1 mg

80 mm

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

171350

EX225/AD

220 g

0.01 mg

±0.015 mg

0.03 mg

±0.1 mg

80 mm

9 × 15.4 × 13.8 in
(230 × 393 × 350 mm)

171351



Resources / Downloads

Title Download Email
Ohaus Explorer Series Semi-Micro Balance, Catalog Page Download Email

Title Version Revision Download Email Category Archived
OHAUS Explorer Semi-Micro Balance Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
OHAUS Explorer Semi-Micro Balance Download Email Balances

Parts

Part # Description List Price Cart
171347 Balance,Ohaus EX125D Semi-Micro Explorer, 52g/120g x 0.01 mg/0.1mg, 120-240 VAC AC Adapter, US power cord

List Price: $6,636.00

171348 Balance,Ohaus EX125 Semi-micro Explorer, 120 g x 0.01 mg, 120-240VAC AC adapter, US Power Cord

List Price: $8,273.00

171349 Balance,Ohaus EX225D Semi-micro Explorer, 120 g/220 g x 0.01/0.1 mg, 120-240VAC AC Adapter, US Power Cord

List Price: $8,464.00

171350 Balance,Ohaus EX225D/AD Semi-micro Explorer, 120 g/220 g x 0.01/0.1 mg, 120-240VAC AC Adapter, US Power Cord

List Price: $8,745.00

171351 Balance,Ohaus EX225/AD Semi-micro Explorer, 220 g x 0.01 mg, 120-240VAC AC adapter, US Power Cord

List Price: $10,558.00

Options

Part # Description List Price Cart
70406 Balance OPT,Cable 9-Pin Serial Ext

List Price: $232.00

156234 Adapter,AC Ohaus 120-240V Universal 46001724 Navigator XT, PA, PX, EX Series Requires 156235 Plus SET or 166574 US Plug Only Sold Separately

List Price: $60.00

156235 Plug Set,Intl Ohaus Kit PN 46001780 Includes 46001766 US Plug - Valor 2000, PA, PX, EX, Defender Series (Kit includes plugs for EU, US, AU, UK)

List Price: $26.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
