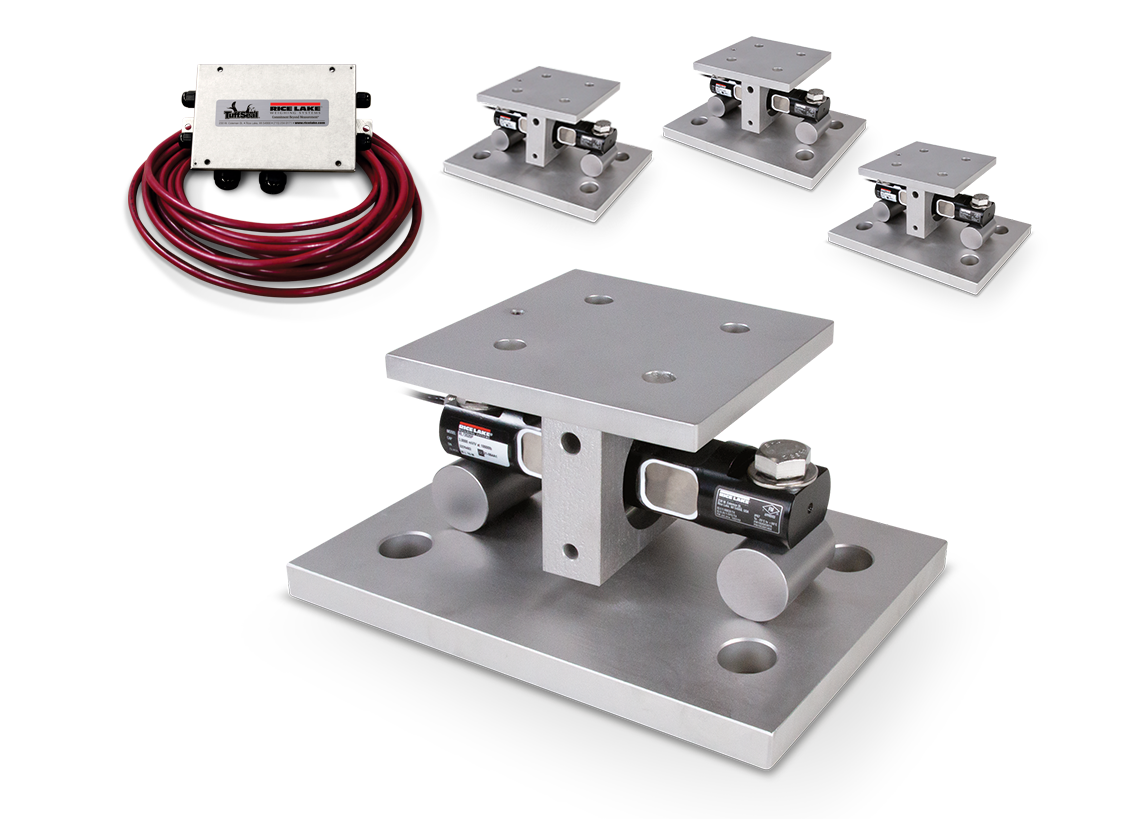

Complete Kit Includes
Three or four EZ Mount 1 stainless steel compression mounts with RL72020 MLC Coated NTEP Certified double-ended shear beam load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 5,000 to 150,000 lb
Unique sliding pin design compensates for thermal expansion/contraction
Stainless steel construction (mount)
Self-checking
Easy load cell replacement
Simplified design allows bolting directly to tank and floor
Double-ended design, center-loaded
Low-profile design
Applications
Medium- to heavy-capacity tanks and fertilizer hoppers
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The EZ Mount 1 Series weigh module utilizes the double-ended beam design with an articulating top plate to provide superior accuracy in any loading condition. The double-ended beam design means there is less cumbersome hardware and each module has a lower profile than modules of different configurations. NTEP Certified and FM approved coated RL72020 load cells give you accuracy and dependability in many applications, including intrinsically safe and explosion proof areas.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17943 | Mount,EZ Mount 1 5,000- 20,000 lb SST Compression No Cell | List Price: $885.00 | |
| 17944 | Mount,EZ Mount 1 30,000- 60,000 lb SST Compression No Cell | List Price: $2,450.00 | |
| 17945 | Mount,EZ Mount 1 100,000 lb SST Compression No Cell | List Price: $4,480.00 | |
| 29011 | Mount,EZ Mount 1 150,000 lb SST Compression No Cell | List Price: $4,480.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 33749 | Dummy Load Cell, RL72020/RL70000 series 5K-20K Mild Steel | List Price: $90.00 | |
| 74016 | Dummy Load Cell RL72020/RL70000 series 30K-60K Mild Steel | List Price: $122.00 | |
| 94175 | Dummy Load Cell RL72020/RL70000 series 100K Mild Steel | List Price: $265.00 | |
| 158715 | Dummy Load Cell RL72020/RL70000 series 150K Mild Steel | List Price: $265.00 |
