EZ Mount 1 Weigh Module with RL70000 Load Cell

Complete Kit Includes

  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three or four EZ Mount 1 mild steel compression mounts
  • Three or four RL70000 double-ended shear beam load cells
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 5,000 to 250,000 lb
  • NTEP Certified load cells
  • Unique sliding pin design compensates for thermal expansion/contraction
  • Self-checking
  • Easy load cell replacement
  • Simplified design allows bolting directly to tank and floor
  • Center-loaded double-ended shear beam design
  • Low-profile design
  • Painted mild steel construction

Optional Features

  • Kits available with VPG® Revere 5103 load cell, capacities in 5,000 to 150,000 lb

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Accurate and Dependable Weigh Module

The EZ Mount 1 Series weigh module utilizes the double-ended beam design with an articulating top plate to provide superior accuracy in any loading condition. The double-ended beam design means there is less cumbersome hardware and each module has a lower profile than modules of different configurations. NTEP Certified and FM approved RL70000 Series load cells give you accuracy and dependability in many applications, including intrinsically safe and explosion proof areas.

Applications:

Rated Capacity C C1 H H1 H2 L L1 L2 L3 L4 T W W1 W2 W3
lb/in
5,000 to 20,000 0.56 1.06 5.31 0.75 0.50 11.00 8.00 3.00 6.00 6.87 5/8-18 UNF 7.50 4.00 3.00 6.00
30,000 to 60,000 0.68 1.19 8.43 1.00 0.75 15.00 11.50 5.12 8.00 8.50 1-14 UNS 10.00 6.00 5.12 8.00
100,000 0.81 1.38 10.37 1.25 1.25 18.00 14.00 7.50 10.00 9.50 1-14 UNS 12.00 9.00 7.50 10.00
150,000 0.81 1.38 10.37 1.25 1.25 18.00 14.00 7.50 10.00 9.50 1-14 UNS 12.00 9.00 7.50 10.00
200,000 to 250,000 1.06 1.88 16.75 2.00 2.00 26.00 20.00 9.00 12.00 13.00 1 1/2-12 UNS 12.00 6.00 9.00 12.00

Resources / Downloads

Title Download Email
EZ Mount 1 with RL70000 Catalog Page Download Email

Title Version Revision Download Email Category Archived
EZ Mount Load Cell Mounting Kit Installation Manual D Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
EZ Mount 1 Tank-Mounting Assembly Mild Steel Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
EZ Mount 1 Medium to Heavy Capacity Mount Assembly Collateral Wizard Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module (Does NOT Include Load Cell)

Part # Description List Price Cart
17823 Mount,EZ Mount 1 5,000- 20,000 lb Steel Painted Compression No Cell

List Price: $345.00

17824 Mount,EZ Mount 1 30,000- 60,000 lb Steel Painted Compression No Cell

List Price: $927.00

17850 Mount,EZ Mount 1 100,000 lb Steel Painted Compression NO Cell

List Price: $1,277.00

29012 Mount,EZ Mount 1 150,000 lb Steel Painted Compression No Cell

List Price: $1,277.00

26068 Mount,EZ Mount 1 200,000- 250,000 lb Mild Steel Painted Compression No Cell

List Price: $2,915.00

3-Module Kit

4-Module Kit

VPG Revere 5103 3-Module Kit

VPG Revere 5103 4-Module Kit

Options

Dummy Load Cells (Mild Steel)

Part # Description List Price Cart
33749 Dummy Load Cell,RL70000- 5K-20K Mild Steel

List Price: $90.00

74016 Dummy Load Cell,RL70000 30k-60k Mild Steel

List Price: $122.00

94175 Dummy Load Cell, RL70000 100k. Dummy load cell for RL70000-100k

List Price: $265.00

158715 Dummy Load Cell, RL70000- 150k. Dummy load cell for RL70000-150k mild steel

List Price: $265.00

Grounding Kit

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products 0Dd926c19ad24e0f805da9aabd12d16b Orig

VPG Revere 5103 Alloy Steel, Double-Ended Beam Load Cell

The VPG Revere 5103 alloy steel, double-ended beam load cell is designed for truck, track and process weighing with high accuracy, low profile, tolerance to non-axial loading and a redundant seal.

WEB SC RL70000

Rice Lake RL70000 Alloy Steel, Double-Ended Beam Load Cell

The Rice Lake RL70000 Alloy Steel, Double-Ended Beam Load Cell with center loading is designed for truck, tank and hopper applications.

WEB SC Celtron CSB

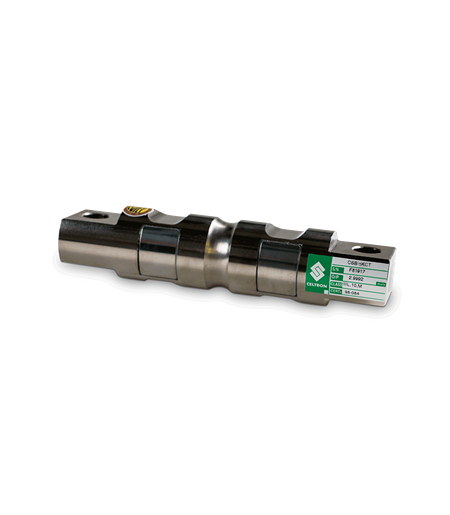

VPG Celtron CSB Alloy Steel, Double-Ended, Shear Beam Load Cell
