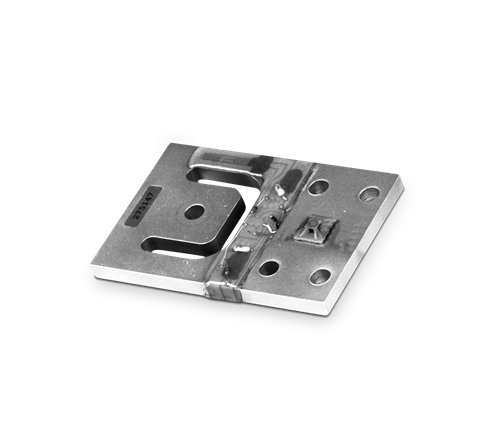

The PB load cell is an inexpensive alternative planar beam used in low-profile, light-capacity applications. It has a capacity range from 15 to 150 kilograms and includes 1.5 meters of load cell cable.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 96361 | Load Cell,Planar Beam Flintec PB 15kg 1M 1.0mV/v 1000 OHM AL IP65 Matched Output Without AMP Connector With Threaded Hole (1/4-20). Planar beam | List Price: $85.00 | |
| 96362 | Load Cell,Planar Beam Flintec PB 37.5kg 1.5M 1.0mV/v 1000 OHM AL IP65 Matched Output Without AMP Connector With Threaded Hole (1/4-20). Planar beam | List Price: $90.00 | |
| 96363 | Load Cell,Planar Beam Flintec PB 75kg 1.5M 1.0mV/v 1000 OHM AL IP65 Matched Output Without AMP Connector With Threaded Hole (1/4-20). Planar beam | List Price: $96.00 | |
| 96364 | Load Cell,Planar Beam Flintec PB 150kg 1.5M 1.0mV/v 1000 OHM AL IP65 Matched Output Without AMP Connector With Threaded Hole (1/4-20). Planar beam | List Price: $108.00 |
