Flintec RC1 Stainless Steel, Rocker Column Load Cell

Offers stainless steel and hermetic sealing, making these cells suitable for use in tough industrial environments. Capacities are 250 kN, 400 kN and 50,000 lb. Cable lengths of 15 ft, 35 ft and 60 ft for easy field replacement and load cell repairs.


Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
351 (± 1) ohm
P/N 170734 1,000 (± 2) ohm

Input Resistance:
400 (± 15) ohm
P/N 170734  1,100 (± 50) ohm

Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
± 0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
250 kN: 35 ft
400 kN: 60 ft
50,000 lb: 15 ft overbraid

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

One-year limited

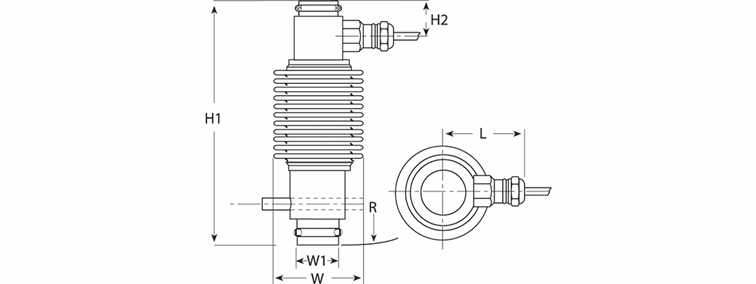

Rated Capacity H1 H2 L R W W1
250*  7.56 1.22 2.44 10.98 2.83 1.46
400 8.86 1.34 2.72 14.02 3.35 1.46
50,000lb** 7.56 1.22 2.44 10.98 2.83 1.46
*For Mettler-Toledo digital to analog conversion: requires replacement of all system load cells, junction box, and instrumentation; consult factory. Kit on pg110
**1,000 Ohm Bridge



Resources / Downloads

Title Download Email
Flintec RC1 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


Part # Description List Price Cart
36217 Load Cell,CSR RC1-250KN- C3 56,000lb 35ft Flintec 2mV/V 350 OHM EW SST HS IP68 NTEP IIIL 10M OIML C3

List Price: $858.00

36218 Load Cell,CSR RC1-400KN- C3 90,000lb 60ft Flintec 2mV/V 350 OHM EW SST HS IP68 NTEP IIIL OIML C3

List Price: $1,457.00

170734 Load Cell, CSR RC1-50KLB -S 50,000lb 15ft over braid 2mv/v 1000 Ohm EW SST HS FM IP68/69 NTEP

List Price: $1,075.00


Part # Description List Price Cart
17703 Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST

List Price: $50.00

71602 Load Receiver,Upper 3-3/4 Dia x 1-1/4 Long with O ring

List Price: $195.00

44290 Rocker Cup,Lower 3-3/4 Dia. x 1-11/16 Toledo Digitol To Flintec RC1 Lower Cup

List Price: $195.00

214044 Pin, Spring 10mm x 60mm SST For Use With Flintec RC1-250kn anti-rotation

List Price: $10.00
