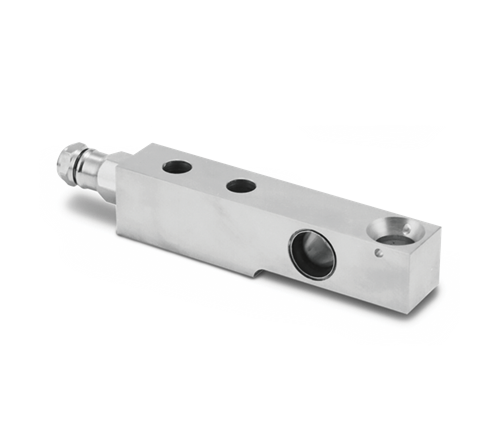

Flintec SB4 Stainless Steel, Single-Ended Beam Load Cell

Designed for multiple-cell applications, such as floor scales and hoppers, these stainless steel, single-ended beams are used exclusively in Rice Lake Weighing Systems' Paramounts® HS mounting systems. mV/V/ohm calibration assures matched outputs for easy calibration. Features true hermetic sealing of both the strain gauge area and cable entry, providing protection from outside elements. Includes field-replaceable load cell cable to simplify cable and load cell repairs. Available in both NTEP Certified and Non-NTEP Certified ranges 5 kN to 100 kN.


Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
± 0.03% full scale

Insulation Resistance:
10,000 megohm

Deflection at Capacity:
10 kN: 0.012 in
23 kN: 0.02 in
50 kN: 0.012 in
100 kN: 0.016 in

Cable Length:
5 to 23 kN: 10 ft
50 to 100 kN: 15 ft
Also available in 30 ft.

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

One-year limited

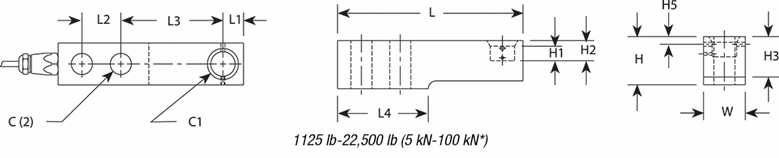

Rated Capacity C C1 H H1 H2 H3 H5 L L1 L2 L3 L4 W
5 to 23 0.53 0.71 1.42 0.39 0.59 1.19 0.16 6.10 0.59 1.38 3.15 2.98 1.18
50 0.85 0.98 1.93 0.58 0.81 1.62 0.31 7.48 0.83 1.57 4.13 3.66 1.69
100 1.06 1.18 2.87 0.82 1.21 2.43 9.65 1.19 1.97 5.31 4.72 2.36



Resources / Downloads

Title Download Email
Flintec SB4 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


NTEP Certified/OIML - 10ft Cable

Part # Description List Price Cart
26662 Load Cell,SEB SB4-5KN-C3 5KN (1,125 lb) 10ft Flintec 2mV/V 1000 OHM EW NTEP III 3S/5M SST HS IP69K OIML C3

List Price: $715.00

26663 Load Cell,SEB SB4-10KN-C3 10KN (2,250 lb) 10ft Flintec 2mV/V 1000 OHM EW NTEP III 3S/5M SST HS IP69K OIML C3

List Price: $715.00

26664 Load Cell,SEB SB4-23KN-C3 23KN (5,200 lb) 10ft Flintec 2mV/V 1000 OHM EW NTEP III 3S/5M SST HS IP69K OIML C3

List Price: $715.00

NTEP Certified/OIML - 15ft Cable

Non-NTEP Certified/Non-OIML - 10ft Cable

Non-NTEP Certified/Non-OIML - 15ft Cable

NTEP Certified/OIML - 30ft Cable

Non-NTEP Certified/Non-OIML - 30ft Cable


Part # Description List Price Cart
17703 Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST

List Price: $50.00

Related Products


Paramounts® HS Weigh Module Kits

The Paramounts HS system provides self-checking in applications of extreme temperature fluctuations and vibration while maintaining unparalleled system accuracy.

Portals 0 Products 45F86fddeb1b4d6287df4f6e1c24c6d1 Orig

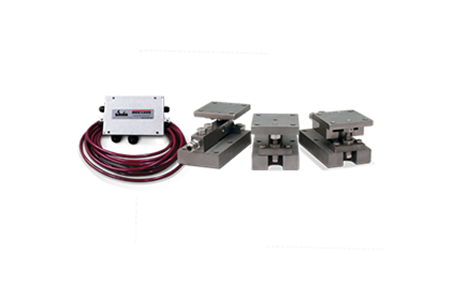

SURVIVOR® Paramounts® HE Weigh Module Systems
