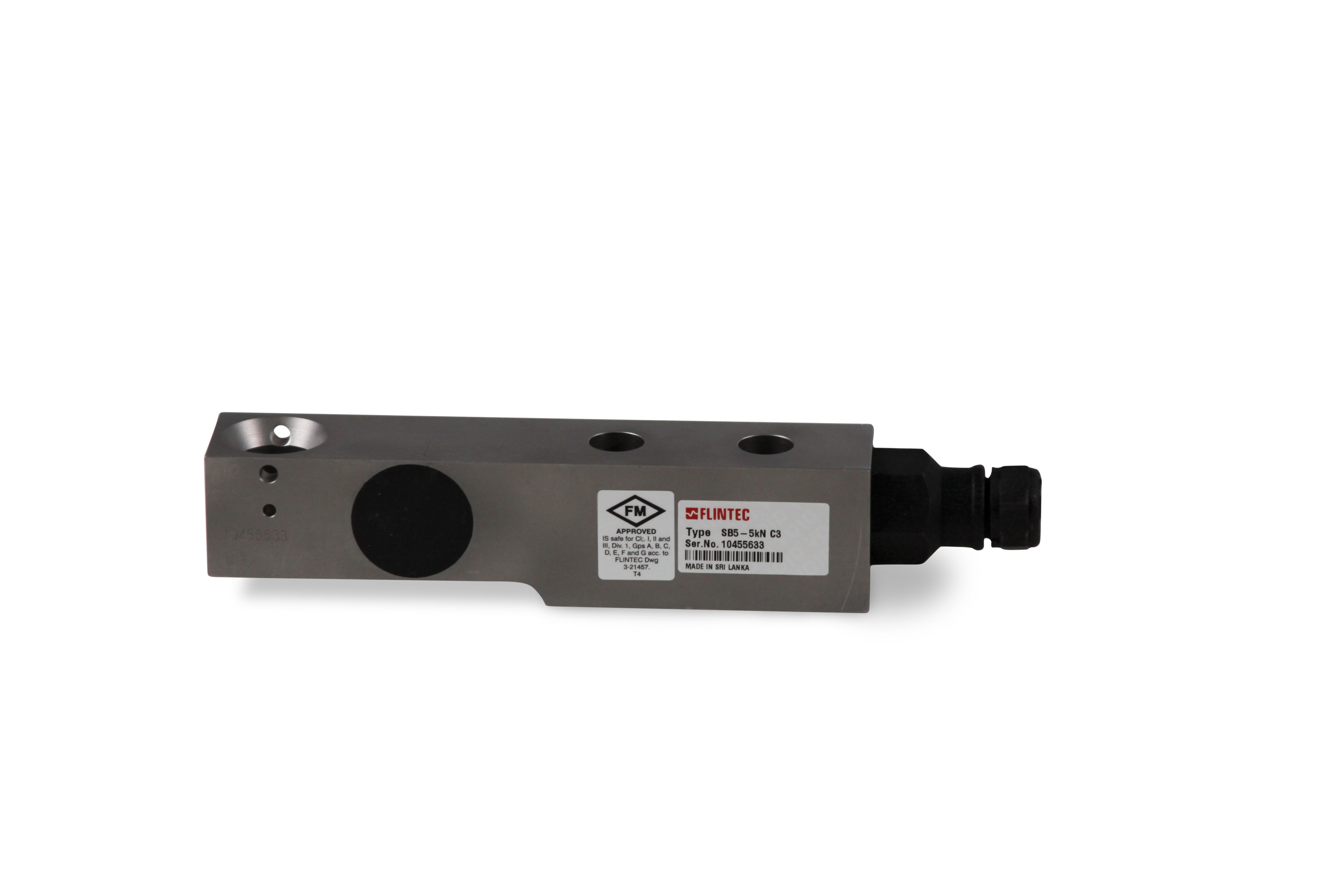

Flintec SB5 Stainless Steel, Single-Ended Beam Load Cell

Made for multiple-cell applications, such as floor scales and tank, bin and hopper weighing systems. Used exclusively in Rice lake Weighing Systems' Paramounts® EP mounting systems. mV/V/ohm calibration assures matched outputs for easy calibration. Available in both NTEP Certified and Non-NTEP Certified ranges 5 kN to 100 kN.


Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM Approved OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Stainless steel

Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
± 0.03% full scale

Insulation Resistance:
10,000 megohm

Deflection at Capacity:
5 kN: 0.008 in
10 kN: 0.012 in
20 kN: 0.02 in
50 kN: 0.012 in

Cable Length:
5 to 20 kN: 10 ft
50 to 100 kN: 15 ft
Also available in 30 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

One-year limited

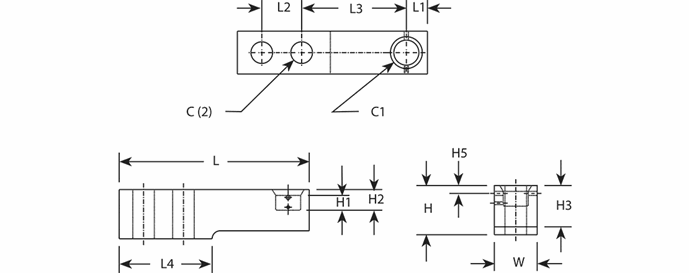

Rated Capacity C C1 H H1 H2 H3 H5 L L1 L2 L3 L4 W
5 to 20 0.53 0.71 1.42 0.39 0.59 1.19 0.16 6.10 0.59 1.38 3.15 2.98 1.18
50 0.85 0.98 1.93 0.58 0.81 1.62 0.31 7.48 0.83 1.57 4.13 3.66 1.69
100 1.06 1.18 2.87 0.82 1.21 2.43 9.65 1.19 1.97 5.31 4.72 2.36



Resources / Downloads

Title Download Email
Flintec SB5 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


NTEP Certified/OIML - 10ft Cable

Part # Description List Price Cart
33387 Load Cell,SEB SB5-5KN-C3 5KN (1,125lb) 10ft Flintec 2mV/V 1000OHM EW NTEP III 3S/5M SST OIML C3

List Price: $430.00

33388 Load Cell,SEB SB5-10KN-C3 10KN (2,250lb) 10ft Flintec 2mV/V 1000OHM EW NTEP III 3S/5M SST OIML C3

List Price: $430.00

33389 Load Cell,SEB SB5-20KN-C3 20KN (4,500lb) 10ft Flintec 2mV/V 1000OHM EW NTEP III 3S/5M SST OIML C3

List Price: $430.00

NTEP Certified/OIML - 15ft Cable

Non-NTEP Certified/Non-OIML - 15ft Cable

NTEP Certified/OIML - 30ft Cable

Non-NTEP Certified/Non-OIML - 30ft Cable

Related Products

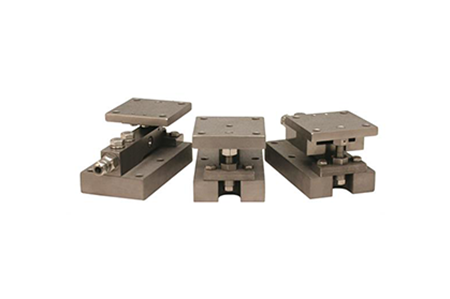

Paramounts® EP Weigh Module Kits

The Paramounts EP system offers all the design advantages of the Paramounts system in applications where the extensive sealing of the SB4 load cell is not necessary.
