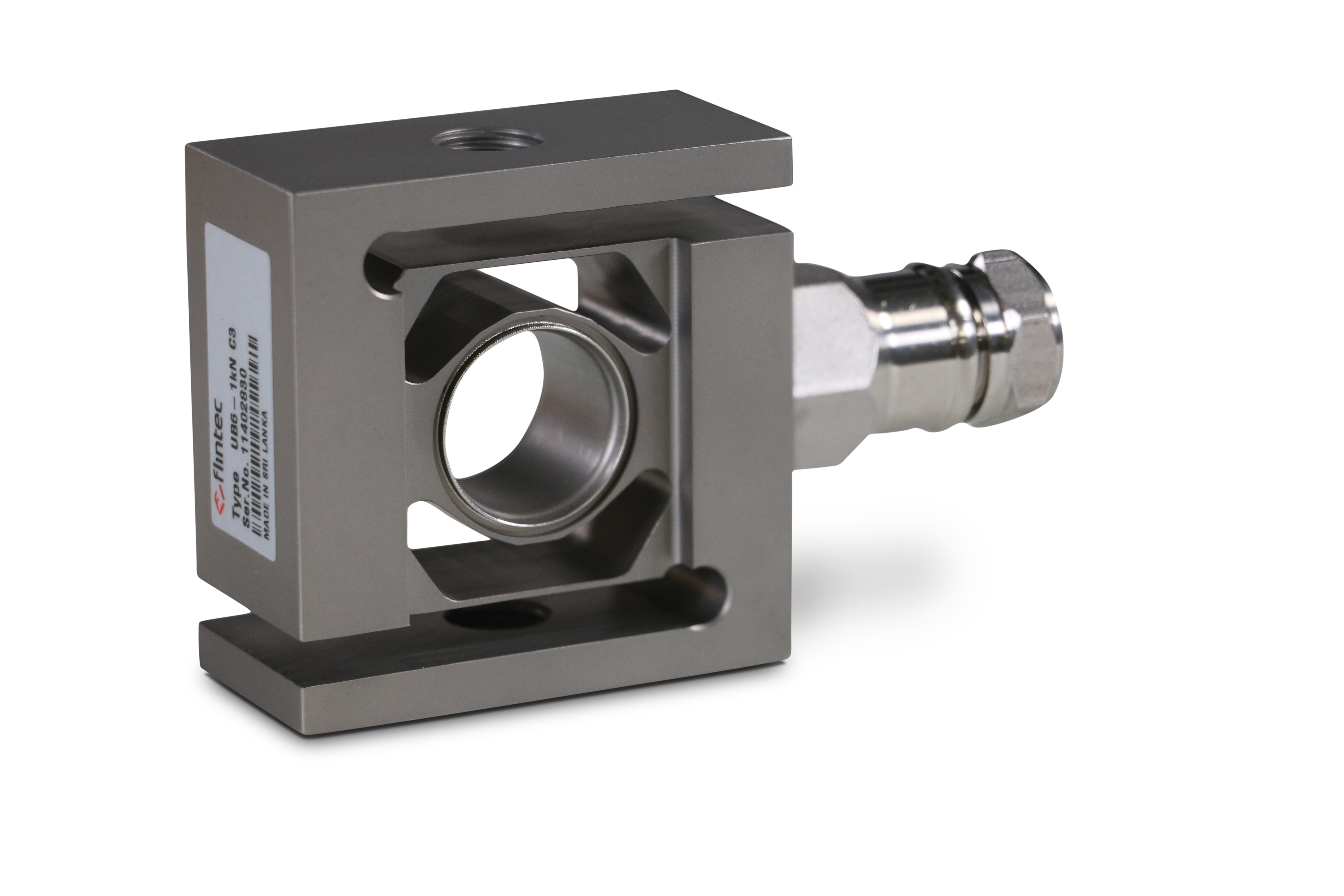

Flintec® UB6 Stainless Steel, S-Beam Load Cell

Stainless steel S-beam designed to meet the most stringent accuracy requirements. 20 ft of field-replaceable cable is included to simplify cable and load cell repairs. Capacities range from 1 kN to 5 kN.

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
FM
OIML

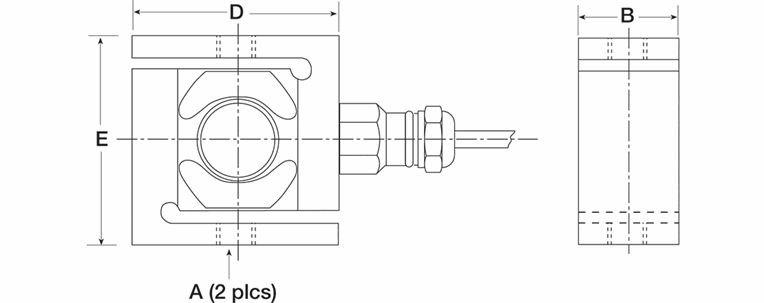

Rated Capacity A* B D E
kN/in
1 to 5 1/2-20 UNF 1.20 2.42 2.42
*Also available with metric threads





Resources / Downloads

Title Download Email
Flintec UB6 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
36214 Load Cell,SBM UB6-1KN-C3 225lb 20ft Flintec 2mV/V 1000 OHM EW SST HS IP69k OIML C3 OIML C3

List Price: $640.00

36215 Load Cell,SBM UB6-2KN-C3 450lb 20ft Flintec 2mV/V 1000 OHM EW SST HS IP69k OIML C3 OIML C3

List Price: $640.00

36216 Load Cell,SBM UB6-5KN-C3 1125lb 20ft Flintec 2mV/V 1000 OHM EW SST HS IP69k OIML C3 OIML C3

List Price: $640.00
