HID RFID Cards and Readers

Typical Maximum Read Range*:

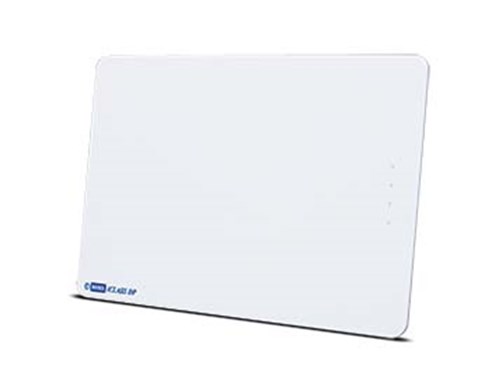

2.5 to 4.5 in (6.3 to 11.4 cm) with HID iCLASS® card
1.0 in (2.5 cm) with HID iCLASS key
1.0 in (2.5 cm) with HID iCLASS tag
1.5 to 2.0 in (3.8 to 5.0 cm) with HID iCLASS prox
1 to 2 in (2.5 to 5.0 cm) with MIFARE® card
(serial number only)
*Using ISO 15693 mode (except MIFARE®). Dependent upon installation conditions. Please note that all iCLASS credentials are available in either a 2K bits (256 Bytes) or 16Kbits (2 KBytes) configuration.

Dimensions:
(L × W × H)
3.30 × 0.85 × 4.80 in
(84 × 22 × 122 mm)

Material:
UL94 polycarbonate

Power Supply:
10 to 16VDC reverse voltage protected
Linear supply recommended

Current Requirements (Avg/Peak):
80/260mA at 12VDC

Operating Temperature:
-31 °F to 150 °F (-35 °C to 65 °C)

Operating Humidity:
5 to 95% relative humidity non-condensing

Weight:
8.8 oz (249.5 g)

Transmit Frequency:
13.56 MHz

Cable Distance:
Wiegand interface: 500 ft (150 m)
Recommended cable is ALPHA 1295 (22AWG)
Five-conductor stranded with overall shield or equivalent. Additional conductors may be required to connect all outputs.

Pending Certifications:
Taiwan, Singapore, Germany VdS

Approvals:
UL 294/cUL
FCC Certification
Canada Certification
CE Mark (Europe)
New Zealand
Australia c-Tick
