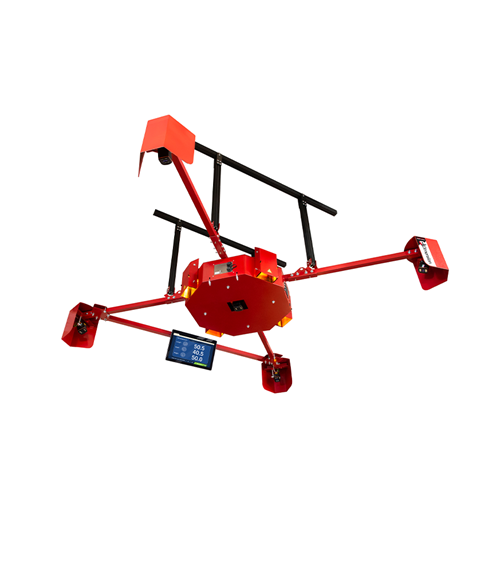

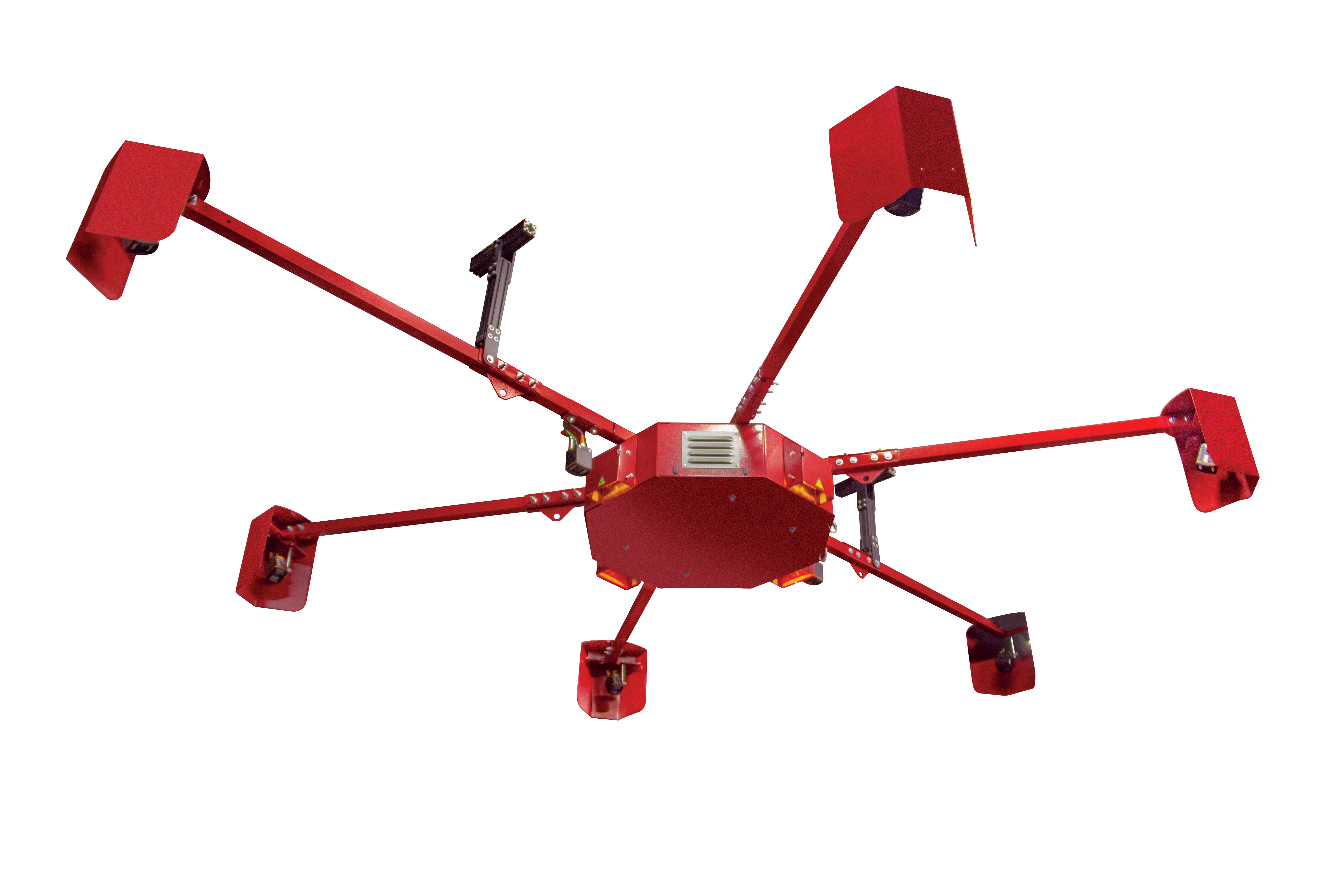

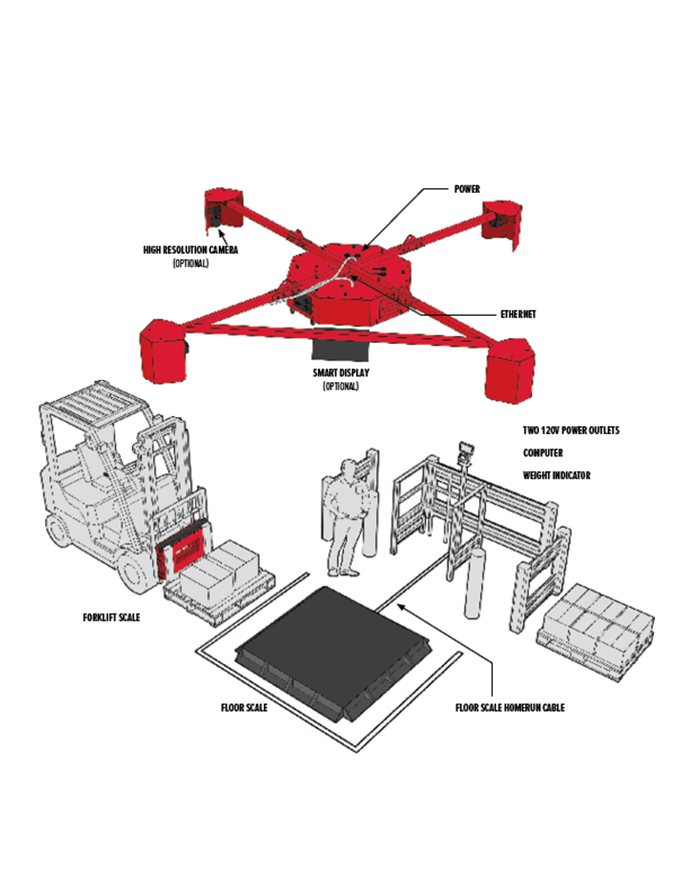

iDimension LTL/LTL XL Pallet Dimensioning System

  • 360° fork truck access for easy pallet placement in the target zone
  • Displays dimensions in 2 seconds
  • Minimal set up and training required
  • Bounding box images identify measurement cube
  • Color camera

Download iDimension Pallet Dimensioning Firmware V6.0.3.3655

Options

  • Second color camera
  • Work area and target zone LED light kit
  • 21.5 inch operator display provides instantaneous feedback to the forklift or pallet jack operator
  • iDimension SS for storing data and images transferring data to ERP and WMS systems
  • Stop & Go activation

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML CE Mark LOGO FCC Notext UKCA Black Fill LOGO EU Certified MID

WARNING: Cancer and Reproductive Harm California Proposition 65

A Freight Dimensioner That Assures Quality

Efficient Imaging with a Pallet Dimensioner

The iDimension LTL uses advanced sensing technology to accurately determine the cubic dimensions of freight, helping ensure freight code compliance is being recorded and declared.

Ideal for LTL carriers and companies with a high percentage of product shipped via pallet or crate, the iDimension LTL removes the potential for human error when taking measurements. The extra labor of manually determining dimensions is eliminated by accurately capturing freight dimensions in less than two seconds.

Light Kits

An LED light kit reflects a light grid on the floor, eliminating the need to paint, etch or tape the dimensioning zone, and quickly assists forklift drivers.

Real-Time Assessment

Up to two high-resolution cameras perform freight identification, damage assessment and tracking.

Operator Display

The operator display provides instantaneous feedback to the forklift or pallet jack operator, communicating dimensions and system status.

Lightning Speed

The iDimension LTL harnesses the fastest processing in the industry. Its advanced imaging technology dimensions LTL freight at a rate of 1-2 seconds within 0.5-inch Legal for Trade accuracy.

Rugged Design

With no moving parts and a solid-state design, the iDimension LTL can easily integrate into a typical LTL environment. Its rugged computer and industrial electrical components can withstand both the hot and cold extremes of shipping docks. Sensors and cameras are protected from accidental freight impact.

Ease of Installation

The iDimension LTL can be installed in one day. Installation technicians will test the interface and train personnel how to use, configure and calibrate the system.

Network Integration

The iDimension LTL is a network device with a web service interface, providing simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing. In other words, Rice Lake has designed this product to easily transfer images and dimensions to your network.

Legal for Trade Measurement Capability:
LTL Drop and Clear:
Min: 12 × 12 × 12 in (30 × 30 × 30 cm)
Max: 96 × 96 × 96 in (244 × 244 × 244 cm)
LTL XL Drop and Clear:
Min: 12 × 12 × 12 in (30 × 30 × 30 cm)
Max: 144 × 96 × 96 in (365 × 244 × 244 cm)
Stop & Go:
Min: 12 × 12 × 12 in (30 × 30 × 30 cm)
Max: 72 × 72 × 84 in (183 × 183 × 213 cm)

Power Requirements:
110 to 240 VAC
25 ft (7.62 m) power cable included

Measurement Increment:
NTEP: 0.5 in
OIML: 2 cm

Dimensioning Speed:
Within 2 seconds from trigger to scan complete

Performance Characteristics:
Most surfaces are captured, including black plastic shrink wrap. Transparent/translucent and glossy surfaces may provide a variance.

Stop & Go Measurement Performance Characteristics:
Stop-trigger-go 2 seconds for Legal for Trade results. Best when used with a Rice Lake Legal for Trade forklift scale.

Item Placement:
Single pallet within the center of the target zone for best performance

Minimum Pallet Height:
4.25 in (108 mm) wood pallets

Minimum Ceiling Height:
12.75 ft

Shapes:
Solid shapes, 3 in (76 mm) protrusions will be included in dimensions

Lighting Conditions:
Operates in any indoor lighting environment

Temperature:
Operating:
14 °F to 104 °F (-10 °C to 40 °C)

Humidity:
0 to 90% non-condensing

Warranty:
Two-year limited (extended warranty available for purchase)
Sensors: five-year limited

Approvals:
NTEP 19-076
OIML R129-2000-A-NL1-24.04
EU MID T12563
FCC
CE

iDimension LTL/LTL XL Dimensions
A 178.28 in (4,528 mm) D 131.83 in (3,348 mm)
B 34.00 in (864 mm) E 12.64 in (321 mm)
C 150.44 in (3,821 mm)

Resources / Downloads

Title View Email Category Type
A Whole New Dimension to Outbound Shipping View Email Dimensioning Application Story
The Future of Shipping Is Dim Weight View Email Dimensioning Articles
Top 10 Ways to Improve Dim Weight Shipping View Email Dimensioning Articles
Choosing the Best Dimensioner for Your Needs View Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning Articles

Title Download Email
iDimension LTL/LTL XL Catalog Page Download Email

Title Version Revision Download Email Category Archived
QubeVu Developer Guide Download Email Dimensioning No
iDimension Software Suite Software Manual C Download Email Dimensioning No
iDimension Desktop Wedge Software Manual 1 A Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Software No
iDimension QubeVu Administrator Guide B Download Email Dimensioning|Pallets and Freight Dimensioning|Packages and Parcels Dimensioning No
iDimension® LTL, LTL-XL, PWD and Flex Dimensioners Sensor Replacement Instructions A Download Email Dimensioning|Pallets and Freight Dimensioning No
iDimension LTL/LTL-XL/Flex 80/20 Mounting Frame Installation C Download Email Dimensioning|Pallets and Freight Dimensioning No
iDimension LTL/LTL-XL/Flex Hanging Cable Mount System Installation B Download Email Dimensioning|Pallets and Freight Dimensioning No

Title Download Email
iDimension Freight Dimensioning Questionnaire Download Email
iDimension Freight Dimensioning Questionnaire - International Download Email
Forklift Bracket Details for Dimensioning Download Email
Dimensioning-Rental Lease Program Questionnaire Download Email
Freight Dimensioner Installation Questionnaire Download Email
Rice Lake Software, End User License Agreement (EULA) Download Email
Rice Lake Software, Exhibit A to Annual EULA Download Email
Rice Lake Software, Third Party Agreement Download Email

Title Collateral Wizard Request Download Email Category
iDimension LTL Series Request Download Email Dimensioning|Pallets and Freight Dimensioning
iDimension FAQs Download Email Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning

Title Version Size Release Date Download Email
iDimension Pallet Firmware V6.1.0.pallet.4812 614.8 MB 07/19/2024 Download Email

Title Version Size Release Date Download Email
iDimension Desktop Wedge 1.04.20021 2.7 MB 08/09/2022 Download Email

Title View Download Email Category
Choosing the Best Dimensioner for Your Needs View Download Email Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning
iDimension Stop and Go Pallet Dimensioner (Demonstration) View Download Email Dimensioning|Pallets and Freight Dimensioning
Get to Know Rice Lake's iDimension Series View Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning
Simple, Fast & Accurate Pallet Dimensioning Systems View Download Email Dimensioning
iDimension™ - It's Not Just Weight Anymore View Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning
What is Dimensional Weight and Why is it Important? View Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning
Determining Pallet Dimensioner ROI View Email Dimensioning|Pallets and Freight Dimensioning

Title Download Email Category
Effects and Significance of Dimensioning Download Email Dimensioning
