iDimension Plus/Plus XL Static Dimensioning System

  • iDim Plus package includes: Base plate, pole assembly, USB display, calibration object, US power cord, operating manual and assembly toolkit

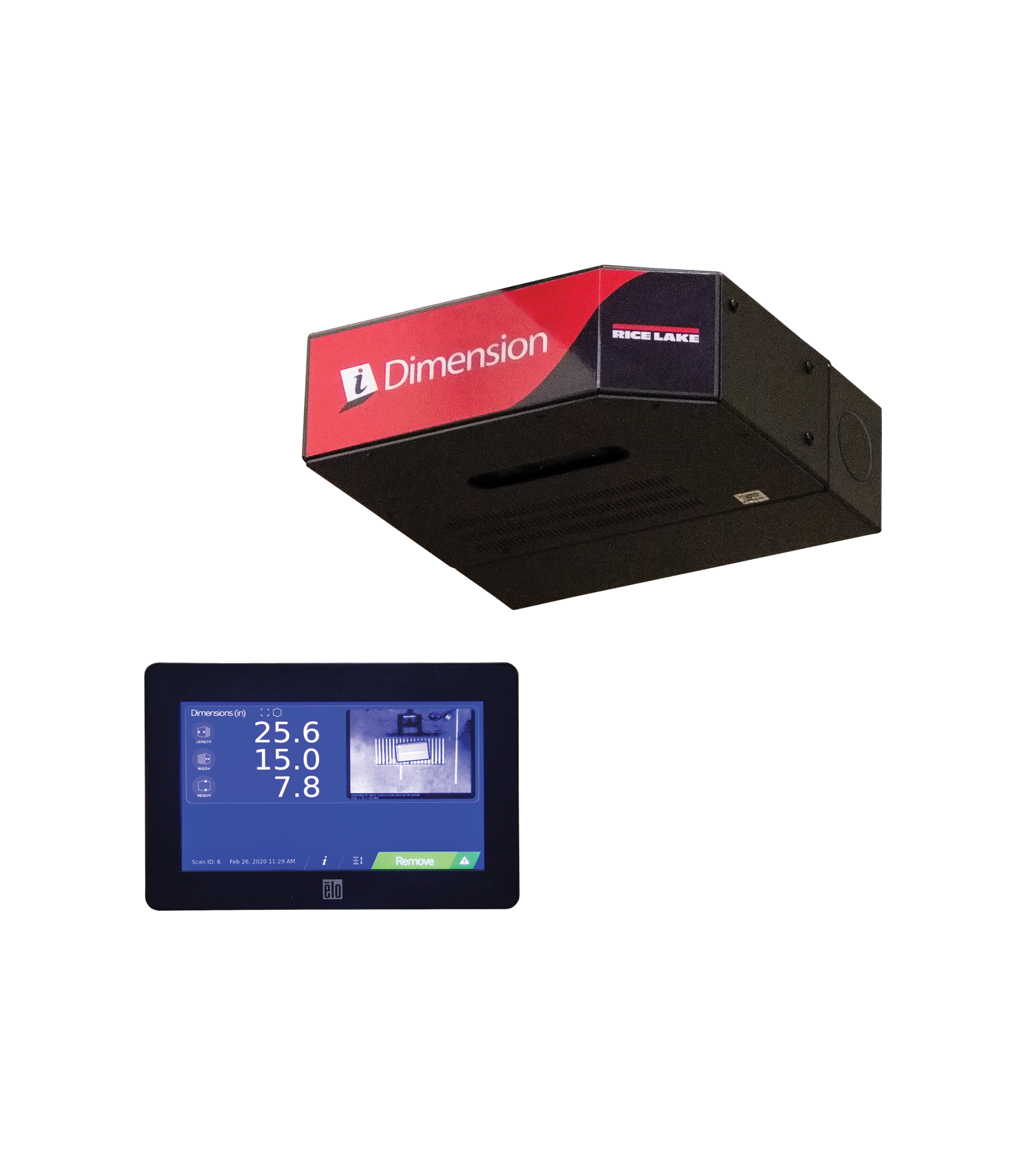

  • iDim Plus XL package includes: iDimension Plus XL scanner head, 10 ft Ethernet cable, USB display, calibration object, US power cord and operating manual
  • Easy to assemble in 30 minutes or less
  • Displays dimensions in 0.2 seconds
  • No special package placement requirements
  • Capable to dimension opaque packaging
  • Measurement capabilities beyond Legal for Trade limits
  • Standard resolution color camera
  • High resolution color image, 2880 × 2160 pixels, available from iDimension Plus 4K


Options

  • iDimension SS (Software Suite) or iDimension Desktop Wedge programs for data integration
  • Powered USB hub for use of more than one peripheral
  • Wired or wireless USB barcode scanner
  • Rice Lake BenchPro shipping/postal scales
  • Rice Lake 680, 880, 1280 indicators available for automation applications

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML Logo CE Mark LOGO FCC Notext LOGO EU Certified MID NMI (002)

WARNING: Cancer and Reproductive Harm California Proposition 65

A Dimensioning System Like Never Before

When it comes to calculating dimensions of boxes, flats, polybags and more, Rice Lake's iDimension Plus is the fastest static tabletop solution on the market. The iDimension Plus helps prevent revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Put the iDimension Plus to use right away—simply open and assemble to instantly display dimensions.

Industry Leading 0.2-Second Dimensioning

Dimension parcels faster and more accurately than manual measurements with the iDimension Plus. In an industry-leading 0.2 seconds, parcels are automatically calculated at 0.2 inches, eliminating the risk for human error. Irregular-shaped packages like cylinders, spheres, tubes, polybags and uneven shapes are calculated within +/-0.5 inches. The iDimension Plus is NTEP certified for single irregular and cubic-shaped non-transparent objects.

Innovative Technology

The iDimension Plus uses multiple patented 3D-imaging technologies with advanced algorithms to optimize time and throughput for static outbound shipments. For objects under 1.2 inches, unique flat-detection technology measures envelopes and small packages. Each dimension provides an overhead image for use during claim disputes on damaged packages. A color touchscreen display provides instant feedback, a live image, measurements, weight and operator functions for day-to-day use.

Simple to Set Up

Start using the iDimension Plus within 30 minutes of unboxing with an easy-to-use setup wizard. Simply connect to the web-based interface to begin harnessing advanced configuration and communication settings.

Power Requirements:
110 to 240 VAC US power cord (included)

Communication Ports:
(1) USB A
(1) 10/100/1000 Base-T Ethernet

Display:
7 in (178 mm) touchscreen monitor

Accuracy:
Certified Legal for Trade at 0.2 in (5 mm) cuboidal shapes
Certified Legal for Trade at 0.5 in (10 mm) irregular shapes

Software Integration:
Simple API network integration through HTTP requests, status checking and XML parsing

Temperature Range:
Certified: 32 °F to 104 °F (0 °C to 40 °C)

Humidity:
Non-condensing

Warranty:
Two-year limited

Approvals:
NTEP 19-040
OIML T11908
CE
EU Mid
FCC
NMI

Model XL at 1.2 m XL at 1.5 m XL at 2 m
Platform Distance 48 in (1,200 mm) 60 in (1,500 mm) 80 in (2,000 mm)
Min/Max Min Max Min Max Min Max
Length 1.2 in (30 mm) 40 in (1,000 mm) 1.2 in (30 mm) 48 in (1,200 mm) 8 in (203 mm) 48 in (1,200 mm)
Width 1.2 in (30 mm) 24 in (600 mm) 1.2 in (30 mm) 32 in (800 mm) 8 in (203 mm) 32 in (800 mm)
Height 0 in (0 cm) 24 in (600 mm) 0 in (0 mm) 28 in (700 mm) 4 in (102 mm) 32 in (800 mm)
Division 0.2 in (5 mm) 0.2 in (5 mm) 0.5 in (10 mm)

Legal for Trade approved minimum and maximum measurements are available from the country specific certificate of approval.

iDimension Plus, 1.5 m
A 63.20 in (1,605 mm) F 19.40 in (493 mm)
B 60.20 in (1,529 mm) G 2.80 in (71 mm)
C 36.10 in (917 mm) H 14.30 in (363 mm)
D 4.00 in (102 mm) I 19.40 in (493 mm)
E 1.80 (46 mm) J 25.00 in (635 mm)

Dimensions
A 9.00 in (229 mm) E 2.00 in (51 mm) I 4.50 in (114 mm)
B 8.50 in (216 mm) F 0.60 in (15 mm) J 1.50 in (38 mm)
C 7.20 in (183 mm) G 1.60 in (41 mm) K 3.00 in (76 mm)
D 3.30 in (84 mm) H 1.50 in (38 mm) L M4 × 0.7 threaded hole

Dimensions
A 7.37 in (187 mm) D 2× 0.28
B 4.12 in (105 mm) E 3× 0.19
C 3.14 in (80 mm)

Dimensions
A 47.34 in (1,202 mm)
B 123.13 in (3,128 mm)
C 24.21 in (615 mm)

Resources / Downloads

Title View Email Category Type
A Whole New Dimension to Outbound Shipping View Email Dimensioning Application Story
Measuring Greatness with the Green Bay Packers View Email Dimensioning|Bench Scales Application Story
The Future of Shipping Is Dim Weight View Email Dimensioning Articles
Top 10 Ways to Improve Dim Weight Shipping View Email Dimensioning Articles
Choosing the Best Dimensioner for Your Needs View Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning Articles

Title Download Email
iDimension Plus/Plus XL Catalog Page Download Email

Title Version Revision Download Email Category Archived
iDimension Plus Setup and Operation Manual B Download Email Dimensioning No
iDimension Plus Assembly Instructions B Download Email Dimensioning No
iDimension Plus Setup and Operation OIML Manual 4.13 B Download Email Dimensioning No
iDimension Plus Managers OIML Guide 4.13 B Download Email Dimensioning No
iDimension® Plus UPS WorldShip Setup Manual Download Email Dimensioning No
iDimension® Plus XL Single and Dual Arm Stands Download Email Dimensioning No
QubeVu Developer Guide Download Email Dimensioning No
iDimension Software Suite Software Manual A Download Email Dimensioning No
iDimension Desktop Wedge Software Manual 1 A Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Software No

Title Download Email
iDimension Parcel Series Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
iDimension Plus Literature Request Download Email Dimensioning

Title Version Size Release Date Download Email
iDimension Plus Firmware 4.13.10.3679 287.3 MB 01/26/2024 Download Email

Title Version Size Release Date Download Email
iDimension Desktop Wedge 1.04.20021 2.7 MB 08/09/2022 Download Email

Title View Email Category
iDimension Frequently Asked Questions Download Email Dimensioning

Title View Download Email Category
iDimension® Plus Static Dimensioning System Sales Video View Download Email Packages and Parcels Dimensioning|Dimensioning
ScaleTalk: Enabling Flat Detection on the iDimension Plus View Download Email
ScaleTalk: Connecting iDimension Plus to a 680 Indicator with USB View Download Email Dimensioning
ScaleTalk: Connecting iDimension Plus to a 680 Indicator with Serial RS-232 View Download Email
Get to Know Rice Lake's iDimension Series View Download Email Dimensioning
Simple, Fast & Accurate Pallet Dimensioning Systems View Download Email Dimensioning
iDimension Plus Measures Dimensions of Small & Irregular Objects View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension® Plus Assembly & Setup View Download Email Dimensioning
iDimension® Plus Shipping Demonstration View Download Email Dimensioning|Packages and Parcels Dimensioning
What is Dimensional Weight and Why is it Important? View Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 1 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 2 View Download Email Dimensioning|Packages and Parcels Dimensioning
iDimension & BenchPro Setup for UPS WorldShip Software, Part 3 View Download Email Dimensioning|Packages and Parcels Dimensioning

Title Download Email Category
Effects and Significance of Dimensioning Download Email Dimensioning
iDimension Case Study - LightBulbs.com Download Email Dimensioning

Parts

Parcels less than 40 inches in length (1.2 m pole)

Part # Description List Price Cart
204599 iDimension Plus w/US pwr cord,1.2M Pole Mount System, OIML/MID/EU/NMI/NTEP Approved

List Price: $7,245.00

204600 iDimension Plus 4K with US pwr cord,1.2m Pole Mount System, OIML/EU/MID/NMI/NTEP

List Price: $8,845.00

Parcels less than 48 inches (1.5 m pole)

iDimension Plus XL

iDimension Plus XL Mounting Options

Rice Lake BenchPro Compatible Scales - Postal Scale 12x14 in (350 x 356 mm) Weight Platter

Rice Lake BenchPro Compatible Scales - Shipping Scale 12x14 in (305 x 356 mm) Weight Platter

Rice Lake BenchPro Compatible Scales - Shipping Scale 18x18 in (457 x 457 mm) Weight Platter

Rice Lake BenchPro Compatible Scales - Shipping Scale 20x20 in (508 x 508 mm) Weight Platter

Rice Lake BenchPro Compatible Scales - Shipping Scale 24x24 in (610 x 610 mm) Weight Platter

Options

Accessories

Part # Description List Price Cart
180007 USB hub, Kit Includes USB Hub, 5M cable, power adapter, North America

List Price: $280.00

180771 Kit,iDim 100 cable assemblies, USB Hub for Worldship Interface

List Price: $430.00

205533 Power Cord,90 CEE 7/7 0 C13, 5M length power cord

List Price: $45.00

95589 Power Cord,Detachable BS 1363 (UK) Molded Plug To IEC 320-13 (CEE 22 Standard V) Molded Connector 8.2 ft (2.5 Meters) Harmonized 13 Amp

List Price: $21.00

162630 Power Cord,AS/NZS 3112 230VAC Australian Molded Plug to Pluggable C13, 8ft, 2.5m

List Price: $35.00

178501 Adapter,USB Serial FTDI US232R-100, 3.28 ft, iDim Series for use with RLWS indicator and Postal Scales

List Price: $60.00

Barcode Scanner

Optional Integration Solutions

Optional Factory Service and Support

Extended Warranty - 2 year standard

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
