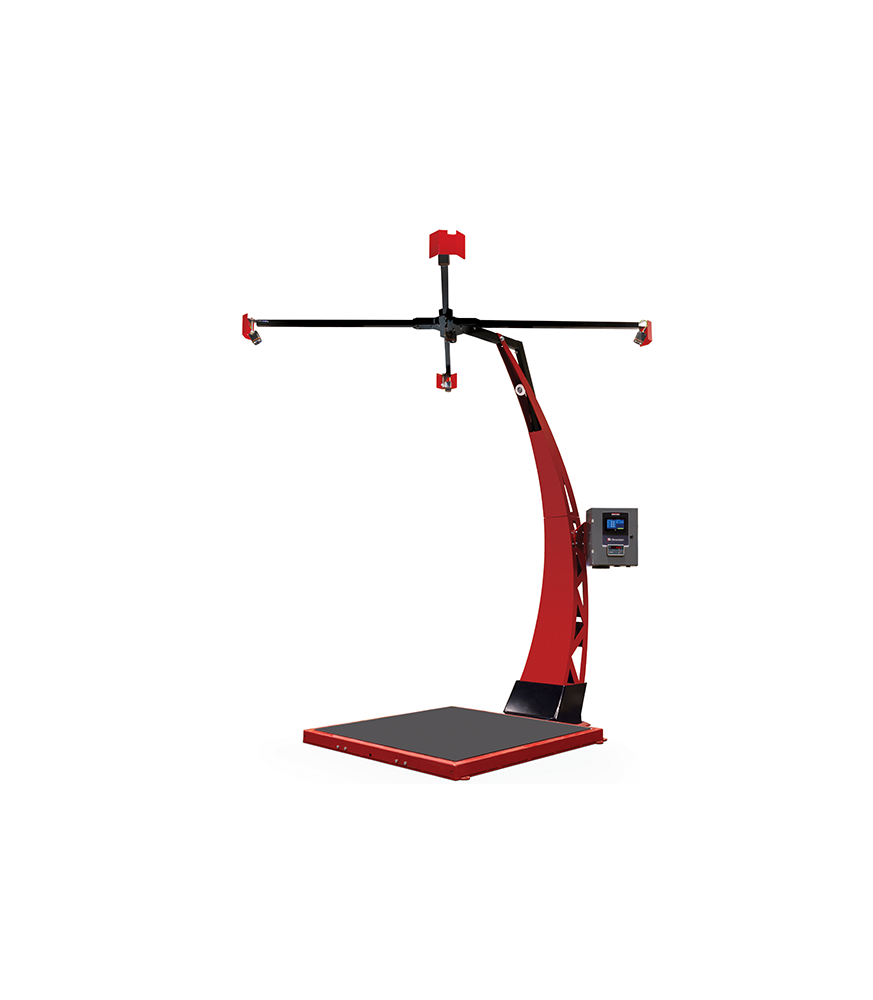

iDimension PWD Pallet Weighing and Dimensioning System

  • Includes: iDimension PWD, kiosk, panel mounted scale indicator, 5 × 5 ft 5,000 lb scale, calibration object, accuracy test box, operators and assembly manuals
  • Integrated 5 × 5 ft floor scale, 5,000 lb capacity
  • Pallet tare mode can measure objects on a pallet by excluding the pallet from the measurement (not Legal for Trade)
  • Simple API network integration through HTTP requests, status checking and XML parsing
  • Assembly and installation in less than a day
  • One high resolution camera (one additional camera available)

Options

  • Second high resolution camera
  • Barcode scanner and/or printer
  • Access ramps for pallet jack access
  • Overhead fifth sensor recommended for dimensioning highly reflective, IR sensitive or black pallet shrink wrap

Software Integration Tools

  • iDimension Desktop Wedge
  • Simple API network integration through HTTP requests, status checking and XML parsing
  • iDimension SS for storing data, images and transferring data to ERP and WMS systems

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML CE Mark LOGO FCC Notext LOGO EU Certified MID UKCA Black Fill

WARNING: Cancer and Reproductive Harm California Proposition 65

Dimensions Pallets in Less Than Two Seconds

The iDimension PWD dimensioner and scale system provides shippers with the dimensions and weight of palletized shipments, empowering users to identify the correct freight class and reduce the risk of non-compliance fees from carriers. Ensure invoiced freight charges are accurate at the time of shipment and receive a measurable, nearly instantaneous return on investment with the iDimension PWD.

Same-day Installation and Operation

In less than a day, the iDimension PWD can be unboxed, set up and put to work.

Straightforward Operation

The iDimension PWD can be loaded with a forklift or side-loaded with a pallet jack and optional access ramps. Simply place the pallet on the floor scale and use the USB-connected display, optional bar code scanner or web browser to trigger the PWD to capture dimensions. In less than two seconds, the iDimension PWD measures and provides dimensions and weight, and takes a digital picture the item with the optional high-resolution camera.

Versatile Item Sizes

iDimension PWD is capable of measuring pallets up to six feet and packages as small as six inches, cubed.

Convenient Pallet Tare Mode

For non-Legal for Trade applications, iDimension PWD can tare pallet measurements to provide only the dimensions of objects on the pallet.

High-Resolution CameraEasy Network Integration

The iDimension PWD is designed to easily transfer dimensions, weight and images to a network, simplifying claims processes. Built with a web server interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing. The iDimension PWD optional high-resolution camera quickly captures images of freight condition at time of shipment.

Legal for Trade Measurement Capability:
Min: 6  × 6 × 6 in (152 × 152 × 152 mm)
Max: 72 × 72 × 72 in (1,829 × 1,829 × 1,829 mm)

Power Requirements:
110 to 240 VAC with 25 ft (7.62 m) power cable included

Measurement Increment:
0.5 in (1 cm)

Performance Characteristics:
Weight and dimensions in two seconds or less
Most surfaces are captured; transparent/translucent and glossy surfaces may provide a variance

Item Placement:
Centered on floor scale for best performance

Minimum Pallet Height:
4.25 in (108 mm) wood pallets

Shapes:
Solid shapes, 3 in (76 mm) protrusions will be included in dimensions

Lighting Conditions:
Operates in any indoor lighting environment

Temperature:
Operating:
14 °F to 104 °F (-10 °C to 40 °C)

Humidity:
0 to 90% non-condensing

Warranty:
Two-year limited
Extended warranty available for purchase

Packaging Dimensions:
Crate 1: 101 × 80 × 30 in; 1,690 lb
(257 × 203 × 76 cm)
Crate 2: 83 × 68 × 35 in; 900 lb
(210 × 173 × 90 cm)

Approvals:
NTEP 19-076
OIML R129-2000-A-NL1-24.04
EU MID T12563
CE
FCC

Dimensions
A 117.34 in (2,980 mm) F 85.56 in (2,173 mm) K 131.86 in (3,349 mm)
B 103.14 in (2,620mm) G 65.00 in (1,651 mm) L 89.18 in (2,265 mm)
C 65.00 in (1,651 mm) H 85.56 in (2,173 mm) M 72.22 in (1,834 mm)
D 163.00 in (4,140 mm) I 115.66 in (2,938 mm) N 64.25 in (1,632 mm)
E 92.70 in (2,355 mm) J 125.41 in (3,185 mm)

Resources / Downloads

Title View Email Category Type
11 Factors to Consider When Purchasing a Dimensioning System Email Dimensioning Articles
How to Determine Pallet Dimensioner ROI View Email Dimensioning|Pallets and Freight Dimensioning Articles
Dimensioning Benefits Freight Forwarding and Cross-boarder Processing View Email Dimensioning Articles
Choosing the Best Dimensioner for Your Needs View Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning Articles

Title Download Email
iDimension PWD System Catalog Page Download Email

Title Version Revision Download Email Category Archived
iDimension PWD Assembly Manual C Download Email Dimensioning|Pallets and Freight Dimensioning|Packages and Parcels Dimensioning No
iDimension PWD Operation Manual A Download Email Dimensioning No
iDimension PWD Setup Manual A Download Email Dimensioning No
iDimension Software Suite Software Manual C Download Email Dimensioning No
iDimension Desktop Wedge Software Manual 1 A Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Software No
iDimension QubeVu Administrator Guide B Download Email Dimensioning|Pallets and Freight Dimensioning|Packages and Parcels Dimensioning No
iDimension® LTL, LTL-XL, PWD and Flex Dimensioners Sensor Replacement Instructions A Download Email Dimensioning|Pallets and Freight Dimensioning No

Title Download Email
iDimension Freight Dimensioning Questionnaire Download Email
iDimension Freight Dimensioning Questionnaire - International Download Email
Forklift Bracket Details for Dimensioning Download Email
Dimensioning-Rental Lease Program Questionnaire Download Email
Freight Dimensioner Installation Questionnaire Download Email
Rice Lake Software, End User License Agreement (EULA) Download Email
Rice Lake Software, Exhibit A to Annual EULA Download Email
Rice Lake Software, Third Party Agreement Download Email

Title Collateral Wizard Request Download Email Category
iDimension PWD Literature Request Download Email Dimensioning
iDimension PWD Parts Lists Download Email Dimensioning
iDimension FAQs Download Email Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning

Title Version Size Release Date Download Email
iDimension Pallet Firmware V6.1.0.pallet.4812 614.8 MB 07/19/2024 Download Email

Title Version Size Release Date Download Email
iDimension Desktop Wedge 1.04.20021 2.7 MB 08/09/2022 Download Email

Title View Download Email Category
Get to Know Rice Lake's iDimension Series View Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning
Choosing the Best Dimensioner for Your Needs View Download Email Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning
Simple, Fast & Accurate Pallet Dimensioning Systems View Download Email Dimensioning
What is Dimensional Weight and Why is it Important? View Download Email Dimensioning|Packages and Parcels Dimensioning|Pallets and Freight Dimensioning
iDimension PWD Demonstration View Download Email Dimensioning|Pallets and Freight Dimensioning
Determining Pallet Dimensioner ROI View Email Dimensioning|Pallets and Freight Dimensioning

Parts

Part # Description List Price Cart / Quote
199318 iDimension PWD System NTEP approved, includes iDimension PWD Dimensioner,1280 Kiosk and 5,000 lb capacity 5 x 5 ft Summit Floor Scale

List Price: $38,995.00
