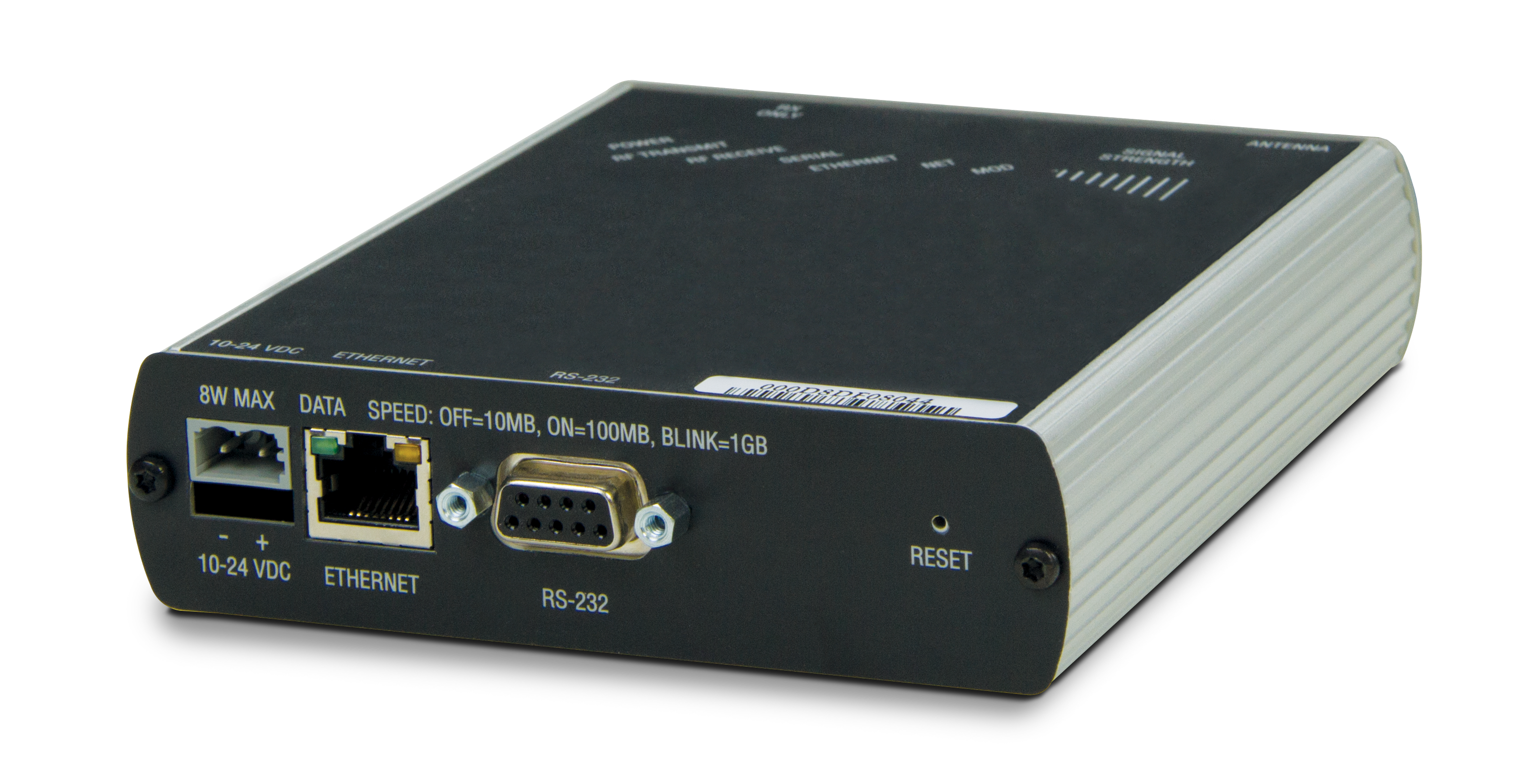

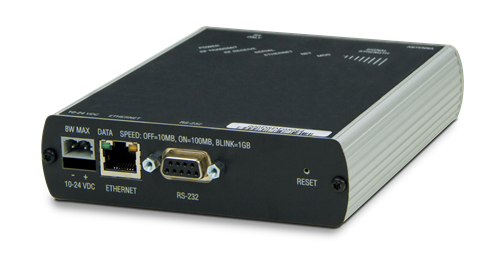

Industrial Broadband Wireless Ethernet

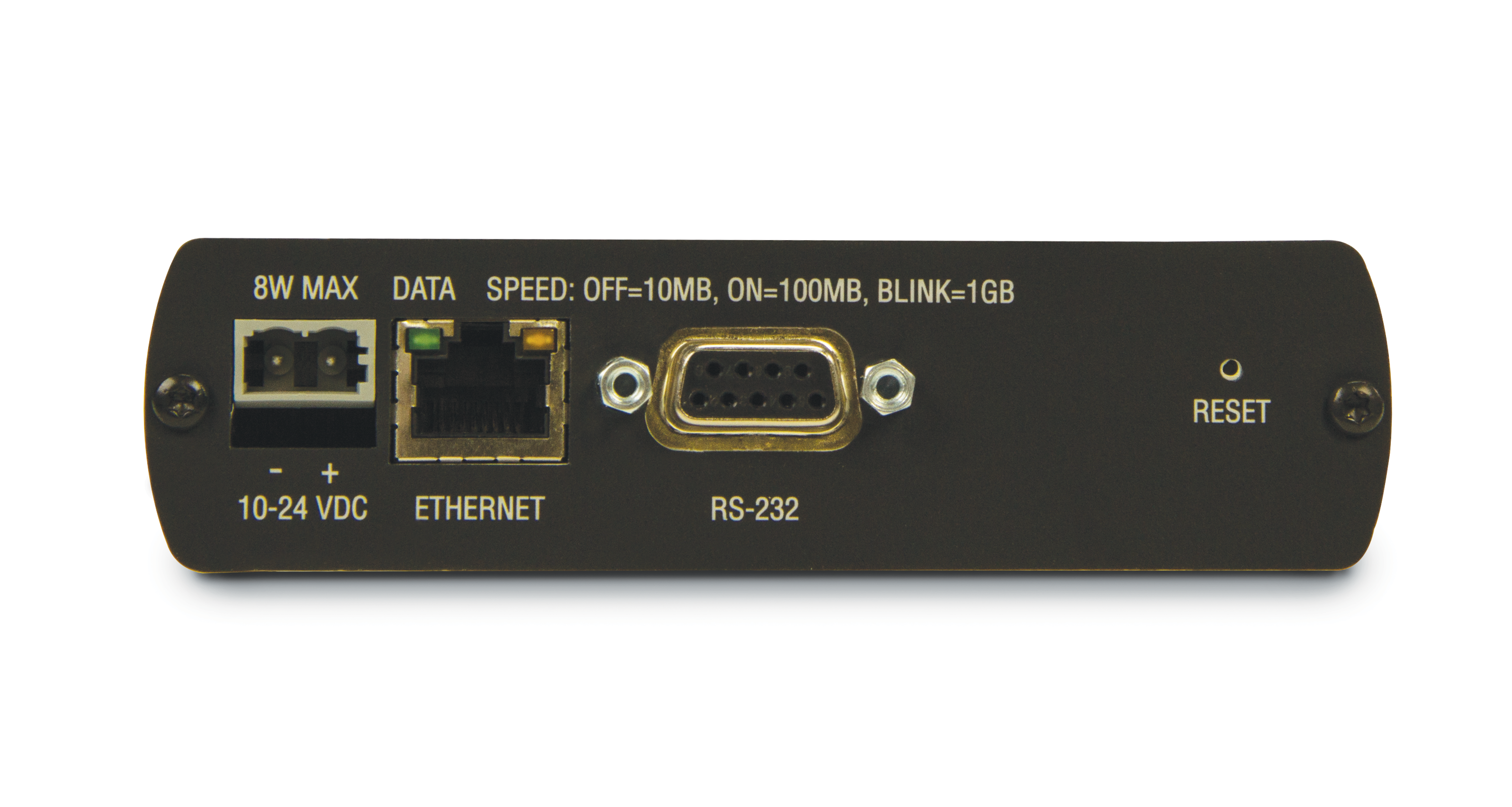

  • Serial and Ethernet connectivity
  • Configures as 802.11 a/b/g access point, wireless bridge, wireless repeater and client
  • Secure WPA2/128 bit encryption
  • Dual band 2.4 GHz or 5 GHz bands
  • Robust design for extreme temperatures (-40˚ to 75˚C) high vibration/shock and hazardous locations (UL Class 1, Division 2, Atex Zone 2)

Frequency Band (varies by country):
2.412 GHz to 2.462 GHz (FCC)
2.412 GHz to 2.472 GHz (ETSI)
5.150 GHz to 5.250 GHz (FCC/ETSI)
5.725 GHz to 5.850 GHz (FCC)

Wireless Standards:
802.11a, 802.11b, 802.11g and 802.11i

Programmable (varies by country):
2.4 GHz: up to 100 mW (20 dBm)
5 GHz: up to 64 mW (18 dBm)

Channel Data Rates (modulation):
802.11b, 11, 5.5, 2, 1 Mbps (DSSS, BPSK,
QPSK, CCK)
802.11g: 54, 48, 36, 24, 18,12, 9, 6 Mbps (OFDM)
802.11a: 54, 48, 36, 24, 18, 9, 6 Mbps (OFDM)

Receiver Sensitivity (Typical):
-90 dBm at 1 Mbps
-85 dBm at 11 Mbps
-82 dBm at 24 Mbps
-75 dBm at 54 Mbps

Channels Selection (varies by country):
1 to 13 (802.11a)

Security:
WPA2 - 802.11i with 128 bit AES-CCM legacy WPA
TKIP, WEP support MAC ID filter, admin password

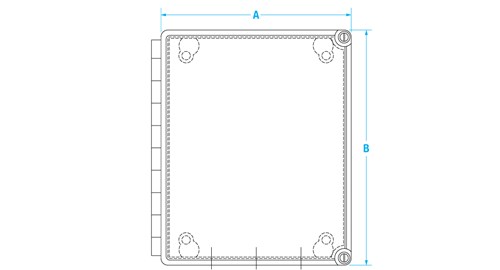

Dimensions FRP Enclosure
A 8.5 in (216 mm) B 10.5 in (267 mm)





Resources / Downloads

Title Download Email
Industrial Broadband Wireless Ethernet Catalog Page Download Email

Parts

Part # Description List Price Cart
166630 Industrial Hotspot 802.11abgn (FCC)

List Price: $1,985.00

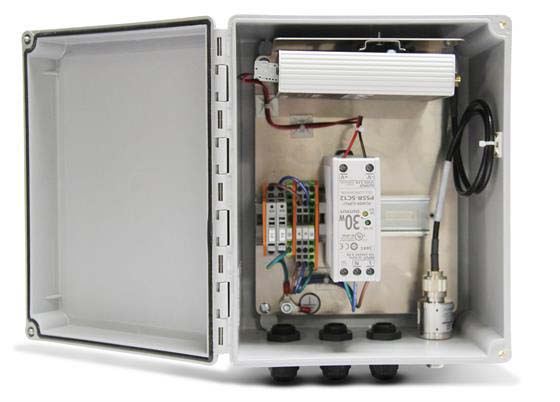

161954 Industrial Hotspot,Cased FRP enclosure with 161936 industrial hotspot, power supply, and bulk head connector (w/ ground strap) for antenna.

List Price: $3,175.00

161955 Industrial Hotspot,Set Paired Set Of Industrial Hotspot Radios Configured To Work Together Of Serial Data Tunneling.

List Price: $3,975.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
