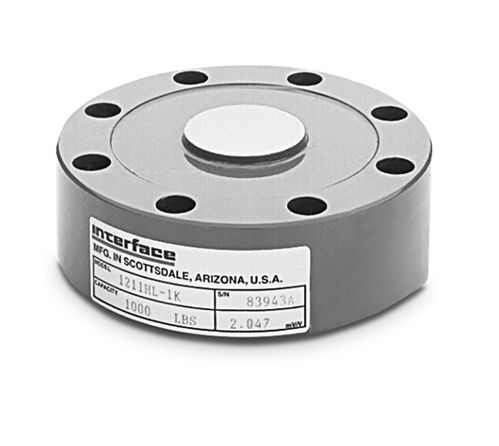

Interface 1200 Series Alloy Steel/Aluminum Compression Canister Load Cell

Resistance to extraneous forces allows for high fatigue life, less stringent mounting alignment and lesser possibility of reading errors. This design permits smaller, portable and compact testing machines. Capacities range from 1,000 lb to 100,000 lb. Complete with 10 ft of load cell cable.

Full Scale Output:
1,000 to 2,000 lb: 2.0 mV/V
5,000 to 100,000 lb: 4.0 mV/V

Bridge Resistance:
350 ohm, nominal

1,000 to 2,000 lb: Aluminum
5,000 to 100,000 lb: Alloy steel

Operating range:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (20 V maximum)

0.05% full scale

0.02 to 0.04% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Two-year limited

Rated Capacity C D D1 D2 H H1
1,000 to 10,000 0.28 dia 8 Holes 4.12 2.63 1.34 1.37 0.12
25,000 to 50,000 0.34 dia 4 Holes 4.75 2.95 1.57 1.75 0.12
100,000 0.47 dia 12 Holes 7.50 4.32 3.12 2.25 0.25



Resources / Downloads

Title Download Email
Interface 1200 Series Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells


Model 1211

Part # Description List Price Cart
36132 Load Cell,CDK 1211EX-1k Low Profile Aluminum 1000lb 10ft Interface 2mV/V 350 OHM

List Price: $1,282.00

36133 Load Cell,CDK 1211EX-2k Low Profile Aluminum 2000lb 10ft Interface 2mV/V 350 OHM

List Price: $1,282.00

36134 Load Cell,CDK 1211EX-5k Low Profile Alloy Steel 5000lb 10ft Interface 4mV/V 350 OHM

List Price: $1,405.00

36135 Load Cell,CDK 1211EX-10k Low Profile Alloy Steel 10,000lb 10ft Interface 4mV/V 350 OHM.

List Price: $1,405.00

Model 1221

Model 1231
