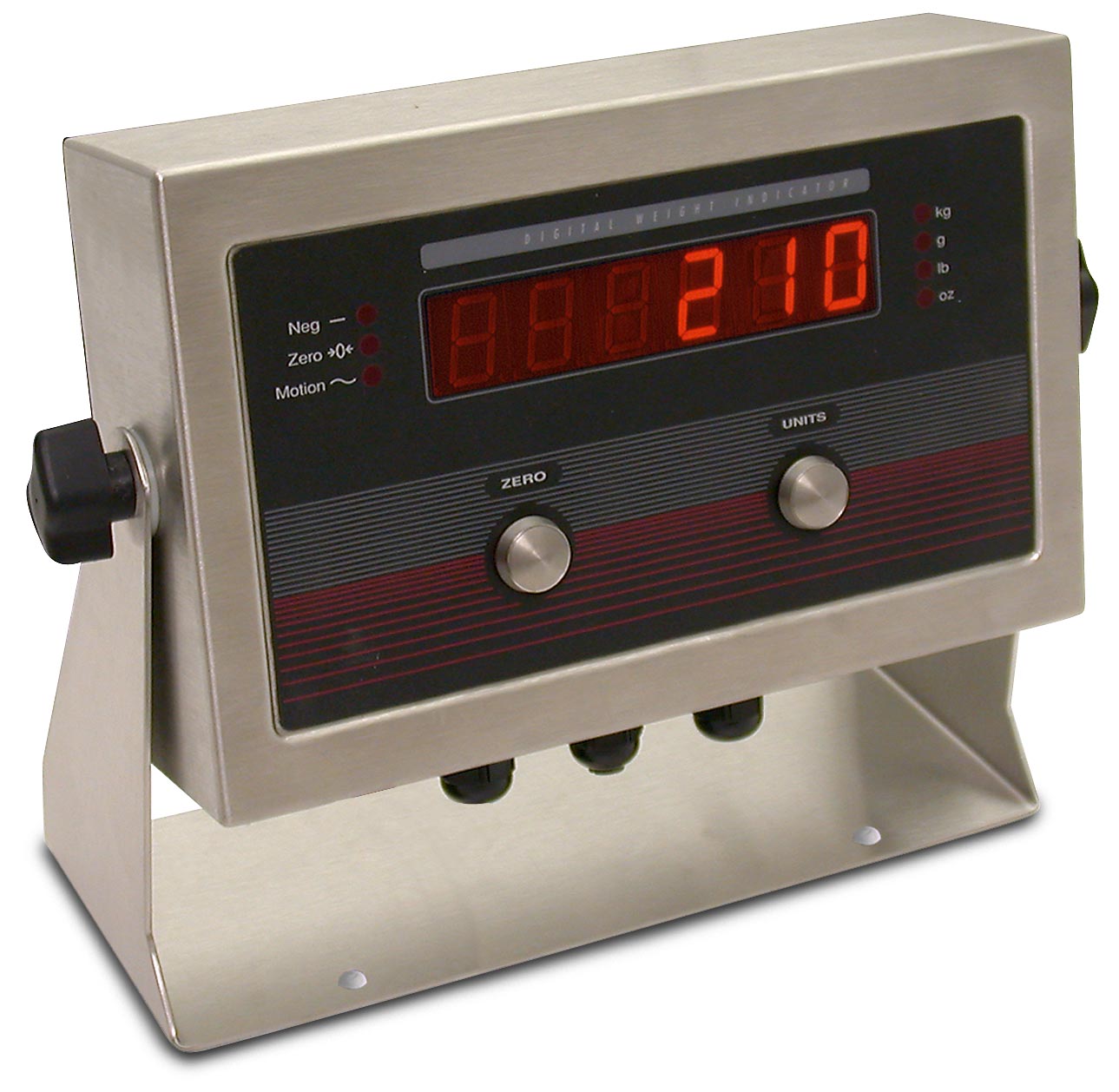

IQ Plus 210 Digital Weight Indicator

  • LED display
  • Piezo switch technology with stainless steel buttons (zero and units)
  • NEMA Type 4X/IP66 stainless steel enclosure
  • Displays units in decimals lb, kg, oz, lb/ oz and grams
  • 1 full duplex RS-232 port
  • 2 digital inputs for remote zero, print and units
  • PreVent™ breather vent
  • Configurable with Revolution® software

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW UL_Listed_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65

The Perfect Replacement

IQ plus 210 digital weight indicator is known for its performance with the IQ plus 2100 bench scale, but it's the ideal replacement indicator for any bench scale in portioning, ingredient weighing and general industrial applications. It's large, vibrant display rivals any other in its class as well as the ability to show pounds and ounces simultaneously.

Its rugged design includes a NEMA Type 4X stainless steel enclosure that protects electronics from frequent washdown, and sealed, stainless steel buttons resist damage in abusive environments.

It's so easy to use—all operations are controlled with just two buttons, zero and units. For ultimate simplicity, the units button can be disabled, virtually eliminating operator errors. Auto or stream print modes are standard, or mount an optional print button on the top of the enclosure for connection to a printer or PC. Configuration can be completed through the indicator's front panel, EDP port or from a personal computer with Revolution™ software.

Power:
Line voltages: 115 VAC or 230 VAC
Frequency: 50/60 Hz

Excitation Voltage:
10 VDC 4 × 350 ohm load cells

Analog Signal Input Range:
0.6 mV/V to 4.5 mV/V

Analog Signal Sensitivity:
0.3 μV/graduation minimum,
1.5 μV/grad recommended

A/D Sample Rate:
15 Hz

Resolution:
Display: 10,000 counts

Digital I/0:
Two inputs, TTL or switch closure, active-low

Communication Port:
Full duplex RS-232, 9600, 4800, 2400, 1200bps;
Seven or eight data bits, even, off, or no parity

Annunciators:
lb, kg, oz, g, negative, motion, center of zero

Display:
Six-digit light emitting diode (LED) display
Seven-segment, 0.8 in (20 mm) digits

Dimensions:
Enclosure
9.5 × 6.0 × 2.75 in (241 × 152 × 70 mm)



Temperature Range:
Operating: 14 °F to 104 °F (-10 °C to 40 °C)
Storage: 14 °F to 122 °F (-10 °C to 50 °C)

Rating/Material:
NEMA Type 4X/IP66, stainless steel

Weight:
10 lb (4.5 kg)

Warranty:
Two-year limited

Approvals:
NTEP CC 00-045, Class III/IIL 10,000d
Measurement Canada AM-5374
cULus Listed

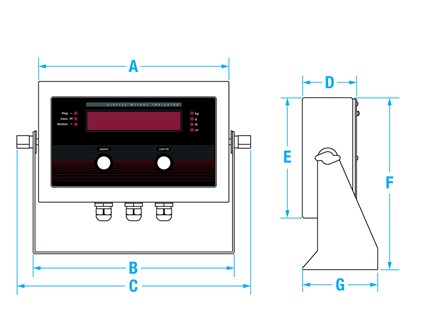

IQ Plus 210 Dimensions
A 9.50 in (241 mm) E 6.00 in (152 mm)
B 10.03 in (254 mm) F 8.58 in (217 mm)
C 11.67 in (296 mm) G 3.75 in (95 mm)
D 2.69 in (68 mm)





Resources / Downloads

Title Download Email
IQ Plus 210 Catalog Page Download Email

Title Version Revision Download Email Category Archived
IQ plus 210 Installation Manual, V1.02 1.02 C Download Email Weight Indicators|Indicators / Controllers|Bench Scales No

Title Collateral Wizard Request Download Email Category
IQ Plus 210 Digital Weight Indicator Download Email Indicators / Controllers|Weight Indicators

Title Version Size Release Date Download Email
Revolution Scale Software (v3.46) 3.46 236.3 MB 02/15/2024 Download Email
Revolution for old config files. Win98 or earlier 2.7 1.4 MB 03/25/2011 Download Email

Parts

Part # Description List Price Cart
65137 Indicator,Desk IQ+210 115VAC SST Enclosure, 2 Buttons, LED Display

List Price: $725.00

65138 Indicator,Desk IQ+210 230VAC SST Enclosure, 2 Buttons, LED Display

List Price: $725.00

Options

Part # Description List Price Cart
64640 LIT,Manual IQ+210 Installation Manual

List Price: $31.00
