Ishida IP-Ai-P Label Printer

  • Powerful batch printing
  • High-capacity label roll with more than five times the length of a standard roll
  • Fixed high-capacity front-load cassette with virtual function
  • High-resolution printhead prints safe handling instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
  • Dynamically generated QR code printing
  • Large customizable color touchscreen with adjustable viewing angle and tactile keypad
  • Assign color images to preset keys
  • Display videos with sound on the operator display
  • PC-based with a solid-state drive for speed and reliability
  • Secure remote access
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Optional Wi-Fi kit (factory installation recommended)
  • Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

UL_Listed_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65
Hdimage(1)

A Retail Label Printer Designed for Bakeries and Grocery Stores

The IP-Ai-P prints at a speed of 5.9 inches per second and, with its unique batching capabilities, is ideal for high-volume printing applications in bakeries. Its custom graphics feature creates stunning labels with all required nutritional and ingredient information, and a fully customizable color touchscreen provides easy access to PLUs via category keys.

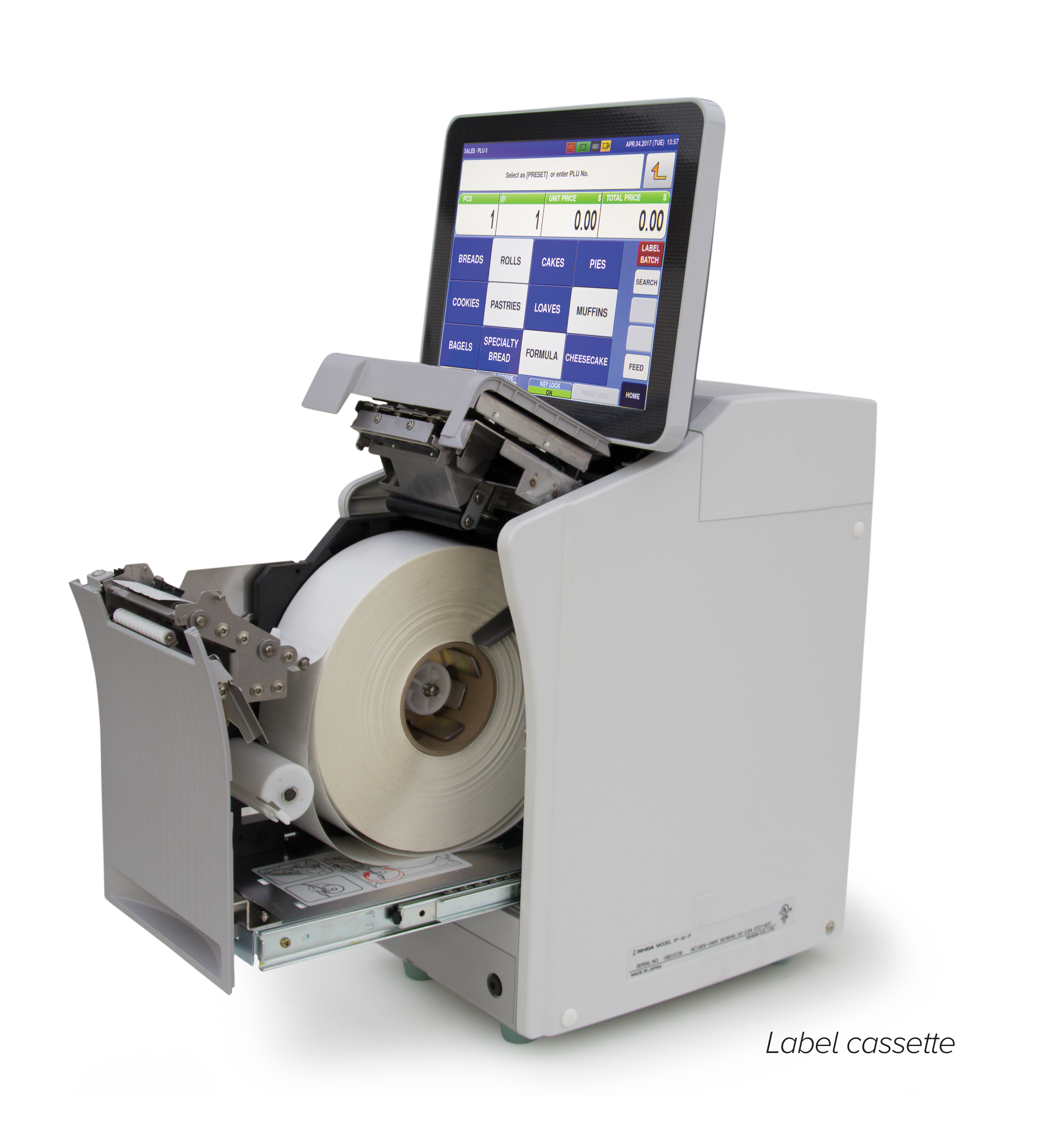

The IP-Ai-P features easy label roll front-loading with a nine-inch roll capacity to streamline prepackaging operations. For consistent and accurate pricing, the IP-Ai-P networks with ScaleLink Pro 5 and other third-party product management software.

Power:
110 to 120 VAC, 50/60 Hz

Power Consumption:
In operation: 120 W
Stand-by: 50 W

Communications:
LAN
Static/DHCP
Optional Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
Four USB-A (service, transaction data)
SD card (for transaction data, 16 GB max)

Operating System:
Linux

Memory Capacity:
SSD 2 GB

Preset Keys:
99 dynamically programmed groups with 99 sub pages
21 tactile function keys

Display:
Operator: Resistive thin film analogue touch panel, TFT LCD color touchscreen with LED backlight with SVGA
12.1 in (800 × 600 px)
Unit price: six digits
Total price: eight digits

Printer:
Printhead: 3.1 in (80 mm) direct thermal, effective 3 in (78mm)
Resolution: 300 dpi (12 dot/mm)
Speed: 5.9 in/sec (150 mm/sec) max
Formats: customizable, up to 999
Barcode: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, QR, Custom

Label Size:
Type: die-cut, continuous
Width: 1.5 to 3.1 in (38 to 80 mm)
Length: 1.2 to 7.9 in (30 to 200 mm)

Label Roll:
I.D.: 3.0-in (76 mm) min
O.D.: 9.0-in (230 mm) max
Backing width: 3.2 in (82 mm) max

Weight:
Approx. 55 lb (25 kg)

Temperature:
Operating: 23 °F to 104 °F (-5 °C to 40 °C)

Humidity:
20% to 85% (without condensation)

Warranty:
One-year limited

Approvals:
cULus Listed

Dimensions
A 11.90 in (302 mm) C 14.60 in (370 mm)
B 9.00 in (229 mm) D 26.50 in (673 mm)
