Ishida Uni-7 Series Price Computing Printing Scale
- Simple, durable and robust design
- Removable front-load cassette, with up to seven cassette configurations
- Prints safe handling instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
- Batch printing
- Graphic-based QR code printing
- Customizable color touchscreen with adjustable viewing angle and tactile keypad
- Programmable tactile preset keys
- Flash ROM for simple update of application software
- Self-service mode
- Cash register interface
- Fully compliant with RoHS regulations for a completely lead-free machine
- Optional Wi-Fi kit (factory installation recommended)
- Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Standardize Retail Price-Computing
Whether operated from a back room, poised on a deli counter, or suspended somewhere in between, Ishida’s Uni-7 is a must for today’s modern retail settings. The complete Uni-7 Series showcases models for every station type, each a completely networkable scale base and printer, and each a variation on the same highly functional Uni-7 interface.

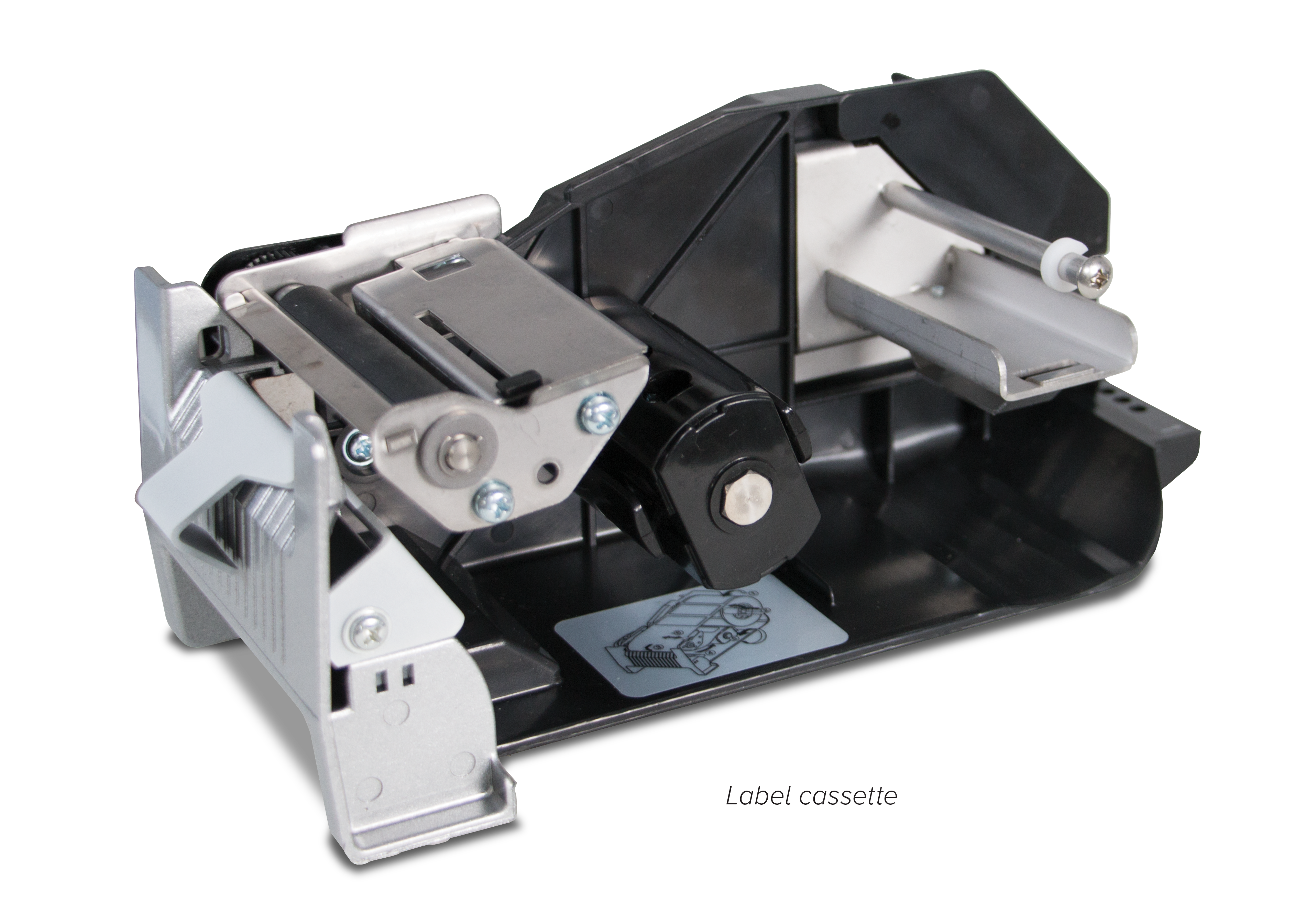

Front and center is the Uni-7’s sleek titanium appearance and one-of-a-kind color touchscreen. Users can customize the display with their own unique product catagories and PLUs. For the most lifelike experience, a tactile sensation and audible tone signals each press of a button. But that’s just the beginning. Uni-7 is equipped with a quick-change, front-loading label cassette, and multilingual capability. Easily manage everything from frequent price changes to future meat and nutrition-labeling tasks. Innovation at its best, Ishida’s Uni-7 Series is the tool of choice for unifying workspaces everywhere.
Uni-7 Bench and Pole

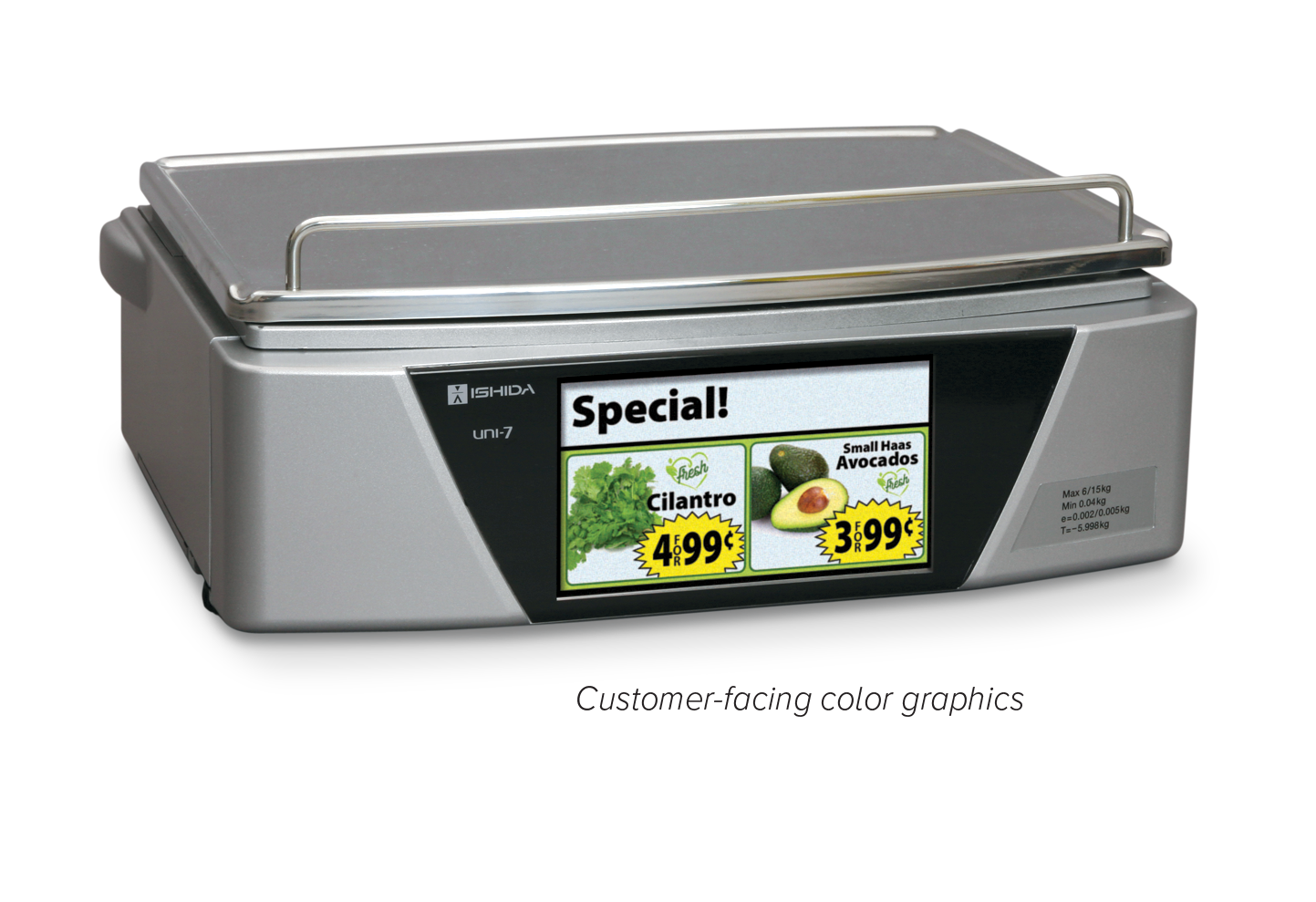

A perfect counter-level or bench-top device, this all-in-one scale offers weighing, printing and price computing. Advertise directly to your customers on their own full-color display, housed within the scale itself (bench model) or on an elevated pole.
Uni-7 Hanging
The only hanging scale on the market with a full-color touchscreen. This space-saving, suspended design cradles product in its bowl-shaped pan. Keypad and display remain at eye level, away from busy work areas or moisture.

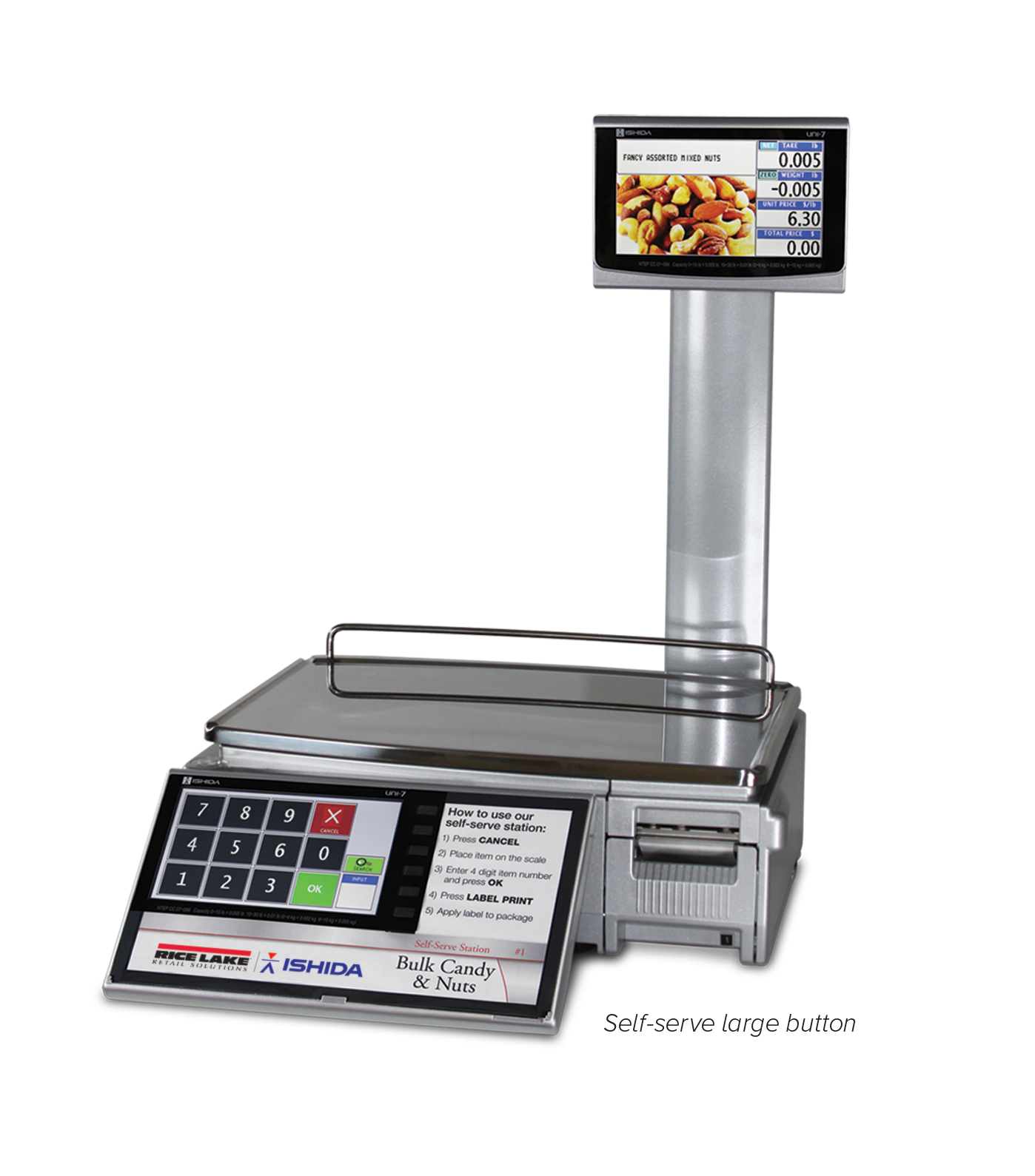

Uni-7 Self-Serve
Thanks to a simple, customized large-button keypad and pole-mounted color display, selfservice applications are more feasible than ever. Customers view images for each PLU and follow instructions to weigh and print labels for their own merchandise.
Ishida Uni-7 Specifications
|
Power: Power Consumption: Resolution: Communications: Input/Output: Operating System: Memory Capacity: Preset Keys: |
Display: Printer: Label Size: |
Label Roll: Platter: Weight: Temperature: Humidity: Warranty: Approvals: |
Ishida Uni-7 Series Dimensions

| Bench | |||||
|---|---|---|---|---|---|
| A | 6.4 in (417 mm) | D | 15.7 in (398 mm) | G | 6.8 in (173 mm) |
| B | 18.3 in (464 mm) | E | 5.3 in (134 mm) | H | 10.8 in (275 mm) |
| C | 11.7 in (296 mm) | F | 6.2 in (157 mm) | I | 11.8 in (298 mm) |

| Pole | |||||
|---|---|---|---|---|---|
| A | 6.4 in (417 mm) | F | 6.2 in (157 mm) | M | 5.1 in (130 mm) |
| C | 11.7 in (296 mm) | G | 6.8 in (173 mm) | N | 13.0 in (331 mm) |
| D | 15.7 in (398 mm) | H | 10.8 in (275 mm) | O | 18.4 in (468 mm) |
| E | 5.3 in (134 mm) | K | 7.5 mm (190 mm) | P | 22.0 in (558 mm) |

| Hanging | |||||
|---|---|---|---|---|---|
| A | 10.66 in (271 mm) | D | 17.20 in (437 mm) | G | 5.51 in (140 mm) |
| B | 16.92 in (430 mm) | E | 6.81 in (173 mm) | H | 22.20 in (564 mm) |
| C | 18.38 in (467 mm) | F | 2.75 in (70 mm) | I | 14.17 in (360 mm) |
Resources/Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| A Golden Opportunity | View | Labelers|Retail Equipment|Retail Accessories|Wrappers | Application Story|Articles | |
| Community Matters | View | Retail Equipment|Retail Accessories | Application Story | |
| Saving with Dual-range Weighing | Retail Equipment | Articles | ||
| Wrapping Up Quality | View | Retail Equipment | Application Story |
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Ishida Uni-7 Series | Request | Download | Retail Equipment|Price Computing Scales | ||
| New FDA Nutrition Label Requirements | Download | Labelers|Retail Equipment | |||
| Retail Systems Literature | Request | Download | Retail Accessories|Retail Equipment|Labelers |
Videos / Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| Rice Lake/Ishida Retail Overview | View | Download | Retail Equipment | |
| Dual-Range Weighing | View | Download | Price Computing Scales|Retail Equipment | |
| Uni-7 Part 1: Overview | View | Download | Price Computing Scales|Retail Equipment | |
| Uni-7 Part 2: Standard Features | View | Download | Price Computing Scales|Retail Equipment | |
| Uni-7 Part 3: Specifications | View | Price Computing Scales|Retail Equipment | ||
| Uni-7 Part 4: Unique Features, Functions, and Applications | View | Retail Equipment|Price Computing Scales |
Rice Lake/Ishida Retail Overview
Dual-Range Weighing
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 161937 | Retail Scale, Uni-7 Bench 15 x 0.005lb/30 x 0.01lb Wired LAN, 115VAC, Ishida |
Consult |
|
| 109366 | Retail Scale,Uni-7 Bench 15 x 0.005lb / 30 x 0.01lb RF Kit, 115VAC Ishida |
Consult |
|
| 155266 | Retail Scale, Uni-7 Bench 60 x 0.02lb, RF, 115VAC, Ishida |
Consult |
|
| 109367 | Retail Scale,Uni-7 Pole 15 x 0.005lb / 30 x 0.01lb RF Kit, 115VAC Ishida |
Consult |
|
| 109371 | Retail Scale,Uni-7 Hanging 15 x 0.005lb / 30 x 0.01lb, RF Kit, 115VAC Ishida 115VAC Ishida |
Consult |
Options
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 167774 | Cover,In Use Operator Controller Uni-5 Uni-7 Ishida |
Consult |
|
| 110996 | Retail Scale OPT,Label Cassette UNI-7, Replacement or Additional w/Special Front Plate For UNI-7H units, Order Black Cassette PN 190565 Ishida |
Consult |
|
| 190565 | Retail Scale OPT,Label Cassette Black UNI-7H, UNI-9H, Replacement or Additional Ishida |
Consult |
|
| 153320 | OPTION, Linerless label Cassette Uni-7, Ishida |
Consult |
|
| 46916 | Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida |
Consult |
|
| 46917 | Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida |
Consult |
|
| 120812 | Option,Cash Drawer Black powder coat, ABS 5 coin/ 5 bill removable money tray ABS 5 coin/ 5 bill removable money tray 18.8inW x 19.7inL x 3.94inH, 28lbs UNI-7 Ishida |
Consult |
|
| 91870 | Option,Compact Flash Card 32mb Ishida CF |
List Price: $96.00 |
|
| 174110 | Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida |
Consult |
|
| 160906 | USB Memory, Stick 1G Hagiwara, UDG4-1GDRJS, Ishida |
Consult |
Communication
Label Stock
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
